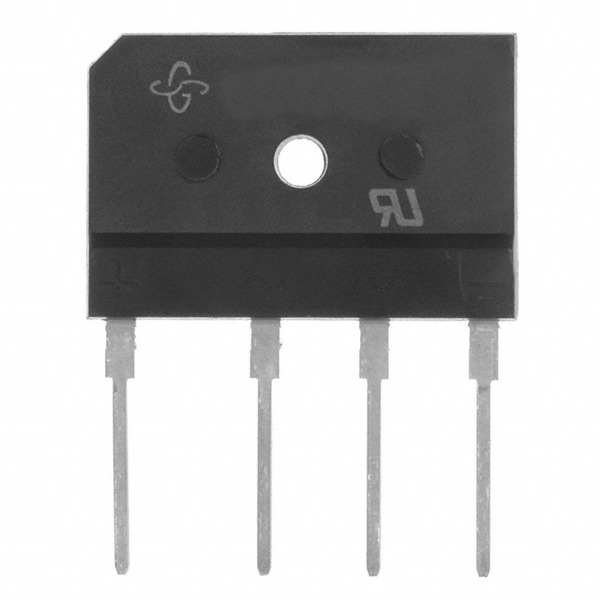

| GSIB1560-E3/45 | |
|---|---|
| Part Number | GSIB1560-E3/45 |
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | DIODE 15A 600V GSIB-5S |
| Quantity Available | 3025 pcs new original in stock. Request Stock & Quotation |
| Datasheets | |
| Download | GSIB1560-E3/45 Details PDF |
| GSIB1560-E3/45 Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of GSIB1560-E3/45 | |||
|---|---|---|---|
| Manufacturer Part Number | GSIB1560-E3/45 | Category | Discrete Semiconductor |
| Manufacturer | Electro-Films (EFI) / Vishay | Description | DIODE 15A 600V GSIB-5S |
| Package / Case | Tube | Quantity Available | 3025 pcs |
| Voltage - Peak Reverse (Max) | 600V | Voltage - Forward (Vf) (Max) @ If | 950mV @ 7.5A |
| Technology | Standard | Supplier Device Package | GSIB-5S |
| Standard Package | 20 | Series | - |
| Part Status | Active | Packaging | Tube |
| Package / Case | 4-SIP, GSIB-5S | Other Names | GSIB1560-E3/45-ND GSIB1560-E3/45GI GSIB1560E345 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 50 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Diode Type | Single Phase |
| Detailed Description | Bridge Rectifier Single Phase Standard 600V Through Hole GSIB-5S | Current - Reverse Leakage @ Vr | 10µA @ 600V |
| Current - Average Rectified (Io) | 3.5A | ||
| Download | GSIB1560-E3/45 PDF - DE.pdfGSIB1560-E3/45 PDF - FR.pdfGSIB1560-E3/45 PDF - ES.pdfGSIB1560-E3/45 PDF - IT.pdfGSIB1560-E3/45 PDF - KR.pdf | ||
Product Model
GSIB1560-E3/45
Introduction
This single phase bridge rectifier offers efficient performance due to its innovative technology. It is designed with an operating temperature range of -55°C to 150°C, making it suitable for diverse operating environments.
Brand and Manufacturer
Manufactured by Electro-Films (EFI) / Vishay, a leader in the field of discrete semiconductor technology.
Features
Bridge Rectifier Single Phase Standard 600V Through Hole GSIB-5S
Standard technology used
Average Rectified (Io) current of 3.5A
Forward (Vf) voltage (max) @ 7.5A: 950mV
Reverse Leakage current @ 600V: 10A
Diode is a single phase type
Manufacturing Part Number is GSIB1560-E3/45
Moisture Sensitivity Level (MSL) of 1 (unlimited)
ROHS Compliant and Lead Free
Product Performance
The device delivers peak reverse voltage up to 600V and current up to 3.5A, ensuring optimum power delivery.
Technical Specifications
Diode Type - Single Phase
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) - 3.5A
Voltage - Forward (Vf) (Max) @ If - 950mV @ 7.5A
Dimensions, Shape, and Packaging
The bridge rectifier comes in a 4-SIP, GSIB-5S packaging, suitable for through hole mounting.
Quality and Reliability
Manufactured by reliable manufacturer Vishay, ensuring high dependability. This product adheres to lead-free and RoHS compliant standards.
Product Advantages
This product operates in a wide temperature range. It also supports a high peak reverse voltage, providing efficient performance.
Product Competitiveness
Delivers a competitive edge due to its high durability, optimum performance, and compliance with safety standards.
Compatibility
Designed for general use in any discrete semiconductor application
Standard Certification and Compliance
This product is RoHS compliant and lead-free ensuring environmental safety.
Lifespan and Sustainability
Assembled with high-quality materials by Vishay, this rectifier is crafted to last for a long duration.
Actual Application Fields
This diode is often used in power supply applications including power adapter, charger, set-top box, home appliances, office equipment, and industrial automation.
Email us: Info@Ariat-Tech.com or RFQ GSIB1560-E3/45 Online.
