H6 and H7 Batteries Description, Features, and Applications
2025-04-22 24219

Picking the right car battery is required to keep your vehicle running effectively. Two common types are the H6 (Group 48) and H7 (Group 94R) batteries. Both are used in cars, SUVs, and trucks, but they are different in size, power, and how long they last. This article will help you understand what makes them different, what they are used for, and what to look at before buying one. With this guide, you can choose the best battery for you.

Catalog

Figure 1: H6 and H7 Batteries

H6 Battery Description

The H6 battery is a 12-volt car battery used to power cars, trucks, and SUVs. It gives strong and steady power, making it great for starting engines and running electrical systems. It works well in different weather and road conditions. Its size is about 278mm x 175mm x 190 mm, and used in many vehicles worldwide.

Figure 2: H6 Battery Dimensions

With 600–800 Cold Cranking Amps (CCA), around 70Ah capacity, and 115 minutes of backup power, it’s perfect for cars with lots of electronics or start-stop systems. Trusted by brands like BMW, Audi, and Porsche, the H6 battery is a reliable choice for modern vehicles.

H6 Battery features

Feature	Description
Battery Group	H6 (Also known as Group 48, L3, or 66L3)
Voltage	12 Volts
Cold Cranking Amps	600–800 CCA – strong cold weather performance
Capacity	Around 70Ah – supports high electronic demand
Reserve Capacity	Approximately 115 minutes – backup power for systems
Battery Technology	AGM (Absorbent Glass Mat) – leak-proof, maintenance-free, vibration-resistant
Dimensions	278 x 175 x 190 mm
Vehicle Compatibility	BMW, Mercedes-Benz, Audi, Ford, and other modern vehicles
Use Case	Dual-purpose: Engine starting and deep-cycle backup
Durability	Works well in extreme temperatures and high-vibration environments
Terminal Configuration	Common top-post or side-post terminals

H7 Battery Description

The H7 battery is used in vehicles, including cars, SUVs, and light trucks. It is about 315mm x 175mm x 190 mm and uses most battery space. It comes in two types: one for starting the engine and one that also powers electronics. It’s strong enough for cars with start-stop systems and lots of electrical parts.

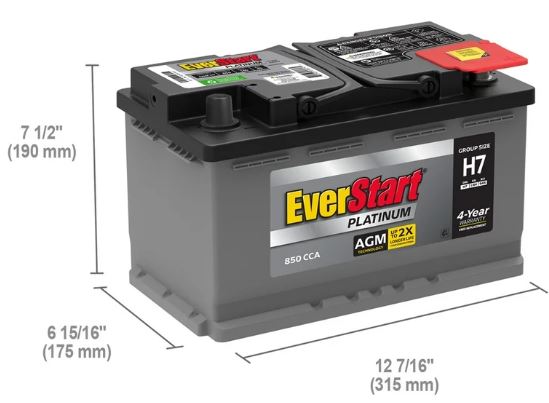

Figure 3: H7 Battery Dimensions

The H7 battery has 700–800 cold cranking amps (CCA) and has a capacity of 60–80Ah. It works well in hot or cold weather and lasts long. Some models use AGM or EFB tech, so they don’t leak and don’t need maintenance.

H7 Battery features

Feature	Description
Size	315mm x 175mm x 190 mm
Type	Also called Group 94R battery
Function	Can be used for engine starting or powering onboard electronics
Power	High Cold Cranking Amps (CCA), good for cold starts
Capacity	Usually between 60Ah to 80Ah for strong and steady power
Technology	Available in AGM (Absorbent Glass Mat) – leak-proof and maintenance-free
Fitment	Works with many cars, trucks, SUVs, and vehicles with start-stop systems
Durability	Strong against vibrations and performs well in various weather conditions

Types of H6 and H7 Batteries

Battery Group	Type	Description
H6 / Group 48	Flooded (Wet Cell)	Basic lead-acid type, low cost, needs maintenance (checking water levels).
	AGM (Absorbent Glass Mat)	Maintenance-free, spill-proof, ideal for modern cars with electronics.
	EFB (Enhanced Flooded Battery)	Better than standard flooded, supports start-stop systems.
H7 / Group 94R	Flooded (Wet Cell)	Standard lead-acid type, cheaper but needs occasional care.
	AGM (Absorbent Glass Mat)	Sealed, more powerful, great for vehicles with lots of electronics.
	EFB (Enhanced Flooded Battery)	A step up from flooded, supports frequent starts in stop-start systems.

Comparison Features Between H6 and H7 Batteries

Size Difference

The H6 battery is smaller in size, while the H7 battery is bigger. Because of this, H7 can store more power, but not all cars have enough space for it without changes.

Cold Cranking Amps (CCA) Difference

H6 batteries give 600–800 CCA while H7 batteries give more, above 750 and even over 850 CCA, making them better for cold weather or cars that need more power to start.

Reserve Capacity

H6 batteries can keep your car's electronics running for 100–120 minutes if the alternator stops working. H7 batteries last longer—120 to 140+ minutes—making them safer in emergencies.

Weight

H6 batteries are lighter—around 18 to 21 kg—so they're easier to carry and install. H7 batteries are heavier, usually 21 to 24 kg, because they’re larger and store more power.

Usage/Application

H6 batteries are mostly used in normal cars and small SUVs, especially ones without too many gadgets. H7 batteries are used in big SUVs, trucks, and cars with more tech or start-stop systems.

Start-Stop Compatibility

Both H6 and H7 can work in start-stop cars if they are AGM type. But H7 does a better job because it gives more power and lasts longer during stops.

Maintenance and Type

Both come in AGM (Absorbent Glass Mat) and flooded types. AGM is better because it doesn't leak, doesn't need water refills, and handles shakes better.

Durability and Vibration Resistance

AGM versions of H6 and H7 can handle rough roads well. But H7 batteries are stronger and last longer in bad weather or hard driving.

Interchangeability

You can't swap H6 and H7 easily because of the size. But in some cases, if there's enough space, an H6 can be upgraded to an H7 for more power.

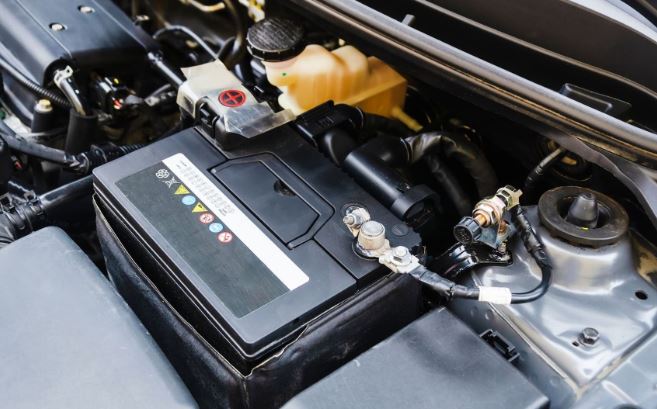

Figure 4: Battery Application

H6 Battery Applications

Regular Cars

H6 batteries are often used in normal cars like sedans and small SUVs. They give strong power to start the engine and keep basic features like lights and radios working properly.

Luxury and European Cars

Brands like BMW, Audi, Mercedes, and Porsche use H6 batteries. These cars have many features that need power, like heated seats and smart safety tools. The H6 battery handles all of them well.

Cars with Start-Stop Systems

Some cars turn off the engine when you stop at a red light and turn it on again when you press the gas. H6 batteries, especially AGM types, are made to handle this many times without getting weak.

Cars with a Lot of Electronics

Newer cars have things like big screens, GPS, and many sensors. H6 batteries provide steady power, so all these parts keep working without problems.

Work Vans and Small Trucks

Delivery vans and small work vehicles also use H6 batteries because they are strong and reliable. These vehicles are driven often, so they need a battery that lasts all day.

Off-Road and Utility Vehicles

H6 batteries are also used in vehicles like ATVs and UTVs. These are driven in rough places, so they need a tough battery. The H6 works well even on bumpy roads and in bad weather.

Backup Power

Sometimes H6 batteries are used as extra batteries to power things like winches, air pumps, or lights when the main battery can’t do it all.

H7 Battery Applications

Big Cars and SUVs

H7 batteries power cars, trucks, and SUVs. These vehicles need more power to start and run, and the H7 gives that strong and steady energy.

Luxury Cars

Mercedes-Benz, BMW, and Audi cars use H7 batteries. The H7 battery supports all these without problems.

Start-Stop Vehicles

Many newer cars turn off the engine when you stop at traffic lights to save fuel. H7 batteries, especially AGM types, are made to handle these quick on-and-off cycles repeatedly.

Vehicles with Heavy Electronics

Cars with many gadgets—like backup cameras, GPS, touchscreen, and driving tools—need a battery like the H7 for clean and reliable power at all times.

Diesel Vehicles

Diesel engines need more power to start, especially in cold weather. The H7 battery has high Cold Cranking Amps (CCA), which helps diesel vehicles begin easily.

Commercial and Work Vehicles

Vans and light trucks that carry tools or cargo use H7 batteries because they last long and work well even with extra loads or long driving hours.

Emergency Backup

Some vehicles use H7 batteries for tools like inverters, air pumps, or other systems needing extra energy.

Things To Consider Before Buying H6 and H7 Batteries

Battery Size

Check the size of the battery before buying your car. H6 batteries are smaller, about 11 inches long, while H7 batteries are bigger, around 12.5 inches. If the battery is too big or too small. Check the car manual or look at the old battery to ensure you get the right size.

Cold Cranking Amps (CCA)

CCA shows how well a battery can start your car in cold weather. H6 batteries usually have 600 to 800 CCA, which is good for everyday use. H7 batteries have more power than H6 batteries.

Battery Capacity (Ah)

H6 batteries hold about 60 to 72 Ah, which is fine for regular cars. H7 batteries hold more, around 70 to 80+ Ah, and are better if your car has more electronics like touch screens, GPS, or extra lights. More capacity helps your car run longer without trouble.

Reserve Capacity (RC)

Reserve capacity tells you how long the battery can keep your car running if the engine’s charger stops working. H6 batteries can usually keep things going for about 100 to 120 minutes. H7 batteries often last a bit longer. This is helpful in emergencies, so your lights and other electronics still work even if the engine stops charging the battery.

Conclusion

The H6 is good for cars and SUVs, while the H7 is better for bigger vehicles or cars with more electronics. They also work well in start-stop cars and in hot or cold weather. Before buying, check the size, power, and what your car needs. Choosing the right battery will help your car start easily and run well every day.
