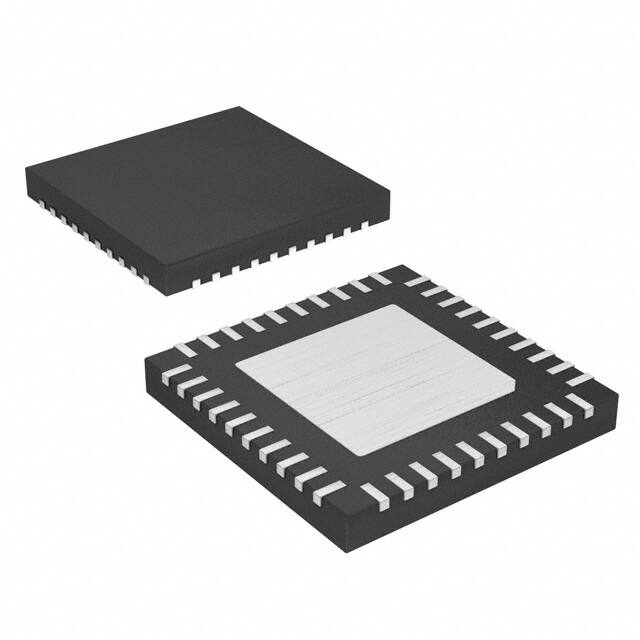

The PAM8610 Amplifier: Pin Configuration, CAD Models, and Functional Overview
2024-10-30 5666

The PAM8610, crafted by Diodes Incorporated, represents a powerful 10W stereo class-D audio amplifier noted for its sophisticated DC volume control capabilities. This amplifier excels with outstanding audio clarity, delivering minimal Total Harmonic Distortion plus Noise (THD+N) and low Electromagnetic Interference (EMI), ensuring precise sound quality that resonates with human emotions.

Catalog

Enhanced Overview of PAM8610

The PAM8610 is an advanced audio amplifier designed to fulfill desires for superior sound experiences by delivering 10W of output per channel with minimal noise interference. This ensures aural clarity that resonates with individuals seeking an auditory haven within varied environments. Its DC volume control allows for detailed sound modulation, catering to a wide array of listener preferences and application needs, which is particularly useful in scenarios demanding skillful sound balancing in complex acoustic settings. Adding to its allure, the PAM8610 is fortified with protective features like overcurrent, thermal, and short circuit protections. These mechanisms uphold the device's reliability and foster a sense of security, which is pleasing for those seeking unwavering audio performance under challenging conditions.

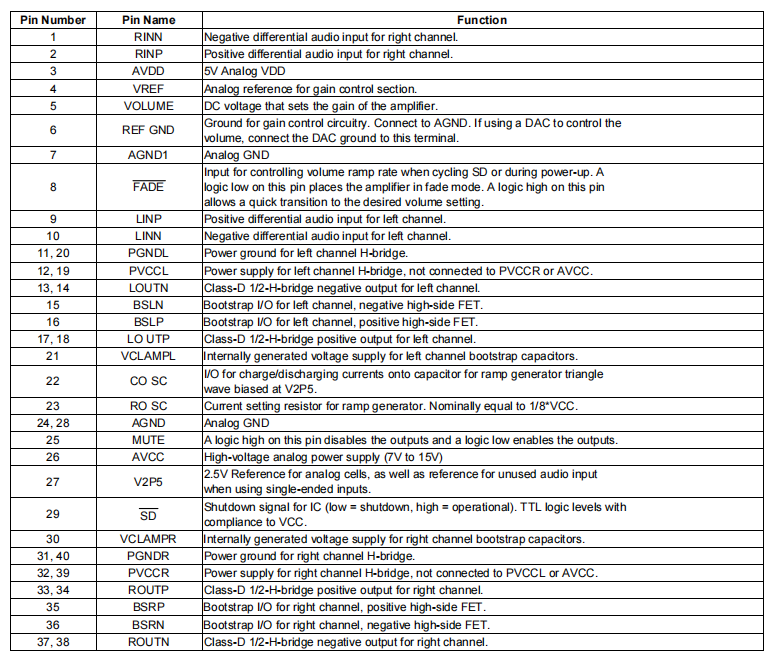

Pin Configuration of PAM8610

The 40-pin layout of the PAM8610 amplifier offers a pathway to more refined and integrated design possibilities. Each pin holds distinct roles, shaping how effectively the amplifier operates and enhances its performance.

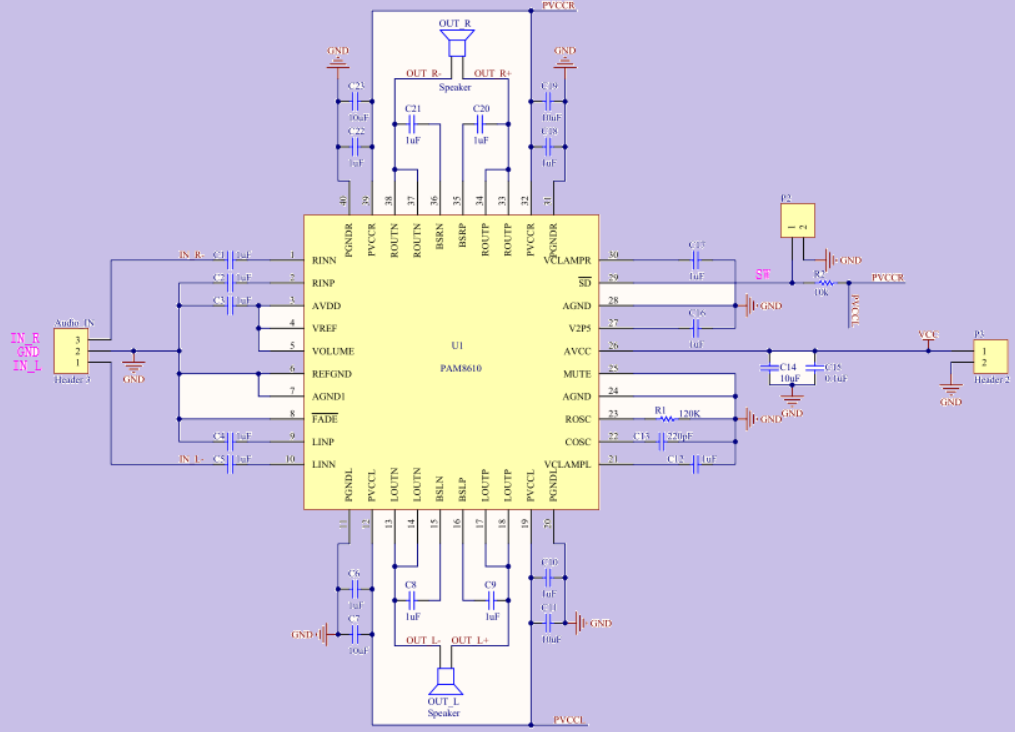

Schematic Diagram of PAM8610

CAD Model of PAM8610

Footprint

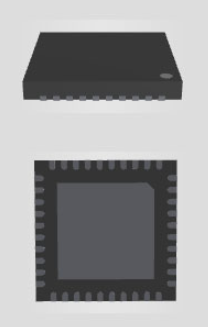

CAD Model

Features of PAM8610

Power Output and Noise Control

The device offers a robust 10W output at 8Ω with a 13V supply, all while maintaining a strikingly low noise level of -90dB. This makes it especially suited for scenarios where audio clarity is deeply appreciated, such as in home audio systems and public address setups.

Integrated Features for Control and Protection

It presents features like shutdown, mute, and fade, which provide users with a fascinating level of control over audio output. This enhances system flexibility and allows for personal customization. Additionally, protection mechanisms against overcurrent and temperature safeguard the device's lifespan and dependability, resembling the way advanced safety features in vehicles bring a sense of security to users.

Noise Suppression and Power Efficiency

The incorporation of pop noise suppression dramatically enhances the listening experience by removing abrupt audio interruptions. Along with its low quiescent current draw, the device is crafted to maximize energy efficiency, rendering it ideal for battery-operated scenarios while also minimizing environmental footprint.

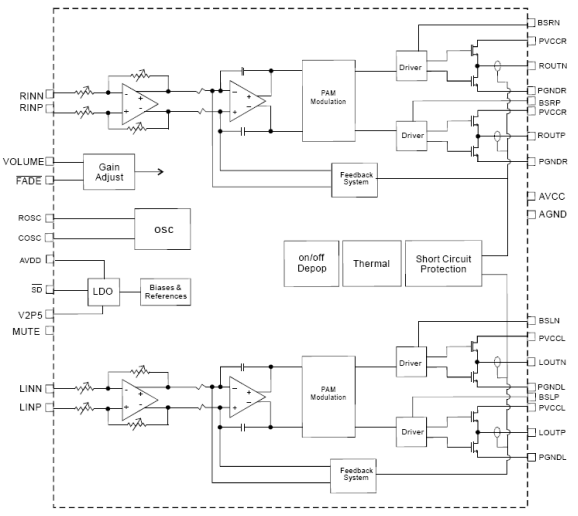

Functional Block Diagram of PAM8610

Specifications of PAM8610

Diodes Incorporated PAM8610TR technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated PAM8610TR.

Type	Parameter
Factory Lead Time	19 Weeks	Mount	Surface Mount
Mounting Type	Surface Mount	Package / Case	40-WFQFN Exposed Pad
Operating Temperature	-20°C~85°C TA	Packaging	Tape & Reel (TR)
Published	2013	JESD-609 Code	e3
Pbfree Code	yes	Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)	ECCN Code	EAR99
Type	Class D	Terminal Finish	Matte Tin (Sn)
HTS Code	8542.39.00.01	Voltage - Supply	7V~15V
Peak Reflow Temperature (Cel)	260	Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PAM8610	Output Type	2-Channel (Stereo)
Power Supply Rejection Ratio (PSRR)	60dB	Max Output Power	10W
Max Output Power x Channels @ Load	10W x 2 @ 8 Ω	Features	Depop, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control
Radiation Hardening	No	RoHS Status	ROHS3 Compliant

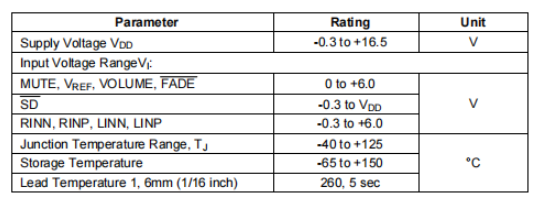

Absolute Maximum Ratings of the PAM8610

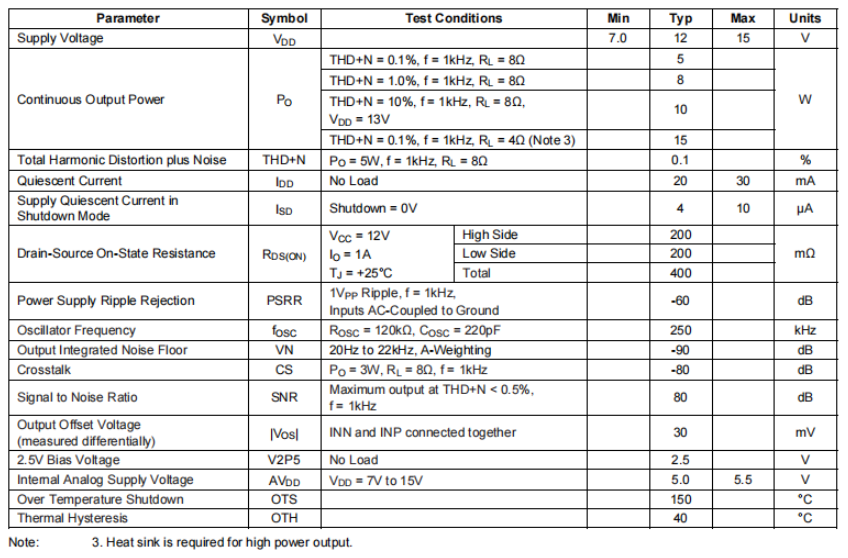

Electrical Characteristics of PAM8610

Applications of PAM8610

Versatile Applications in Modern Technology

A variety of technologies, recognized for their design and efficiency, are seamlessly woven into numerous applications including flat-panel displays, multimedia speaker systems, and musical instruments.

In flat-panel displays, the technology’s compact nature fosters the creation of sleeker designs, enhancing aesthetic appeal without sacrificing performance. Televisions and monitors, for instance, boast remarkable clarity and vivid colors, transforming the viewing experience into something deeply engaging. Many viewers find themselves more captivated by these vibrant displays, fully absorbed in the content.

Enhancing Audio Performance in Multimedia Systems

The ingenious design of multimedia speaker systems brings forth superior audio quality and energy efficiency. Their compact yet powerful technology delivers rich, deep sound, enriching home entertainment. In home theaters, a balanced and clear soundscape heightens the enjoyment of films and music. Enthusiasts frequently discover newfound details in sound that were previously unnoticed in conventional systems.

Advancing Musical Instrument Design

When it comes to musical instruments, innovative designs lead to improved sound quality and playability. Electric guitars and keyboards have notably advanced, with enhancements in tonal accuracy and durability. Musicians often note increased reliability and performance consistency, which play a pivotal role in both studio sessions and live shows.

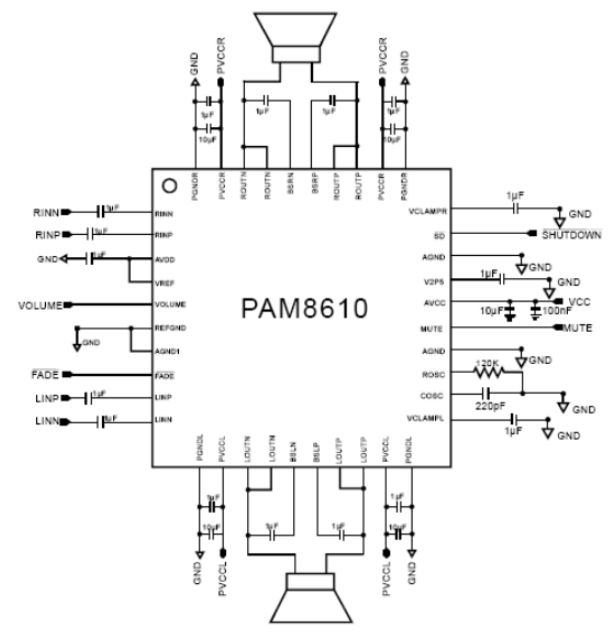

Typical Applications of PAM8610

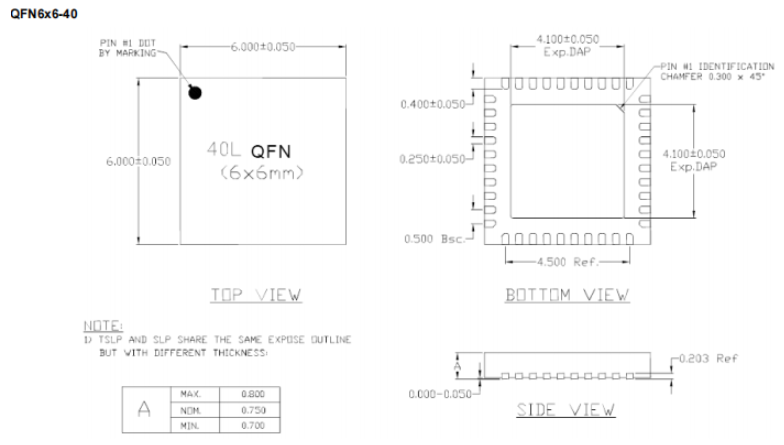

PAM8610 Package

Manufacturers of PAM8610

Diodes Incorporated is a significant force within the semiconductor realm, offering comprehensive solutions that address the diverse needs of markets like consumer electronics and the automotive sector. Through a strategic synergy of creativity and flexibility, they have firmly positioned themselves as leaders in this continually changing arena.
