What is Carbon Film Resistors? Construction, Working Principle & Specifications
2025-07-29 14720

Carbon film resistors were developed in the mid-20th century as an improvement over the older carbon composition resistors. Over time, they became widely used in various applications. This guide explains what carbon film resistors are, how carbon film resistors are made, how they work, their technical features, how they compare to other types of resistors and many more.

Catalog

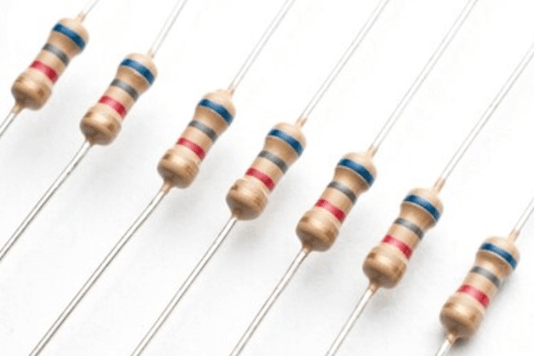

Figure 1. Carbon Film Resistors

What is Carbon Film Resistors?

A Carbon Film Resistor is a type of fixed resistor used to control electrical current or divide voltage in electronic circuits. It is made by applying a thin layer of carbon onto a ceramic insulating core. The carbon layer acts as the resistive element, restricting the flow of current through the component.

Carbon film resistors are available in a wide range of resistance values, typically from a few ohms to several megaohms. Their tolerance levels generally range from ±2% to ±10%, making them suitable for general-purpose applications.

Carbon Film Resistor Construction

Carbon film resistors are formed by coating a ceramic core with a thin layer of carbon. The construction of a carbon film resistor consists of the following five main parts, as shown in the image:

Figure 2. Carbon Film Resistor Construction

Ceramic Substrate

The ceramic substrate forms the core of the resistor. It is chosen for its excellent insulating properties and ability to withstand high temperatures. This substrate provides a stable foundation and prevents heat or electricity from affecting other circuit components.

Carbon Film

A thin layer of carbon is deposited on the ceramic surface. This carbon film acts as the resistive element, limiting the flow of electrical current through the resistor. The resistance value can be adjusted by modifying the thickness of the carbon layer or cutting a spiral groove into it.

End Caps

Metal end caps are fitted on both ends of the resistor. They ensure secure electrical contact with the carbon film and provide mechanical support for the connecting leads.

Connecting Leads

Copper connecting leads extend from each end cap. These leads allow the resistor to be easily connected within an electronic circuit.

Epoxy Layer

The entire assembly is coated with an epoxy layer. This coating protects the resistor from physical damage, moisture, and dust, while also maintaining its long-term stability in various environmental conditions.

The carbon film resistor ceramic core ensures insulation, the carbon film provides resistance, and the end caps with connecting leads facilitate circuit integration. The protective epoxy layer further enhances the component's stability. This construction allows the resistor to achieve a wide range of resistance values.

Carbon Film Resistor Working Principle

Carbon film resistors work by using a thin carbon layer deposited on a ceramic substrate as the resistive element. The carbon film resists the flow of electric current, while the ceramic base provides insulation and thermal stability.

To create this film, hydrocarbons such as methane are thermally decomposed at around 1000 °C in a vacuum, allowing carbon to adhere to the ceramic surface. A helical groove is then cut into the carbon film, increasing the path length of the current, which allows precise control of the resistance value. The resistance can be fine-tuned by adjusting the thickness of the carbon layer or the geometry of the groove.

Parameters of Carbon Film Resistors

Nominal Resistance Value

The nominal value is the labeled resistance of the resistor. It is measured in ohms (Ω) and often expressed in larger units such as kiloohms (KΩ) or megaohms (MΩ). The unit conversion is simple:

• 1 KΩ equals 1,000 Ω

• 1 MΩ equals 1,000 KΩ

Carbon film resistors follow standardized resistance values based on international specifications. Their typical resistance range spans from 1 Ω to 10 MΩ.

Tolerance (Allowable Error)

Tolerance indicates how much the actual resistance can vary from the nominal value. This variation is expressed as a percentage and helps determine the resistor’s precision. Tolerance is usually marked by a letter code:

• F for ±1%

• G for ±2%

• J for ±5%

• K for ±10%

Lower tolerance means greater accuracy. For circuits that require precise voltage or current control, resistors with tighter tolerances are recommended.

Rated Power

Rated power is the maximum amount of power a resistor can safely dissipate without affecting its performance. It is measured in watts (W) and depends on factors like ambient temperature and airflow. Although power ratings are not printed on the resistor body, they can be estimated based on the component’s size. Larger resistors typically support higher power ratings. Common rated power levels include:

• 0.125 W, 0.25 W, 0.5 W, 1 W, 2 W, 5 W, 10 W

For compact electronics, smaller carbon film resistors like the RTX series are used. These resistors are color-coded and usually rated at 0.125 W.

Tolerance Grades and Error Rates

Carbon film resistors are categorized by error rate into three standard levels:

• Grade 1: ±5%, Grade 2: ±10%, Grade 3: ±20%

Most general-purpose resistors fall within the 5% to 10% range. Choosing the right grade depends on the accuracy required in your circuit.

Carbon Film Resistor Markings

Carbon film resistors are often labeled with an “RT” code:

• R stands for resistor, T indicates the carbon film material

For example, RT47kJ refers to a carbon film resistor with a resistance of 47 KΩ and a ±5% tolerance.

Carbon film resistors are marked in several ways.

Figure 3. Direct Marking Method on Carbon Film Resistor

The Direct Marking Method shows the resistance value and unit directly on the resistor; if no tolerance is noted, it is ±20%. The Text Symbol Method uses numbers and letters-numbers indicate the value, and letters show decimal placement and tolerance. The Digital Method uses three digits: the first two are significant figures, and the third is the number of zeros. Tolerance is shown with a letter. The Color Code Method, which will be explained next, uses colored bands to represent values and tolerance.

Carbon Film Resistor Color Code

Carbon film resistors use a standardized color-coding system to indicate their resistance value, tolerance, and sometimes temperature coefficient. The code is represented by a series of colored bands printed on the resistor's body. Each color corresponds to a numerical value or multiplier, as shown in the table provided.

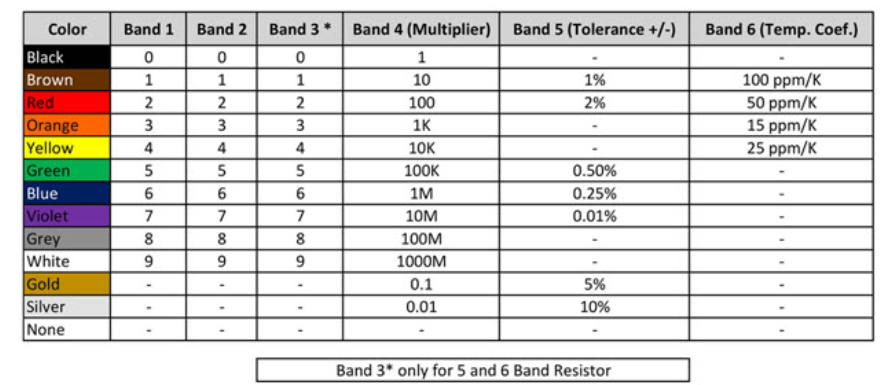

Figure 4. Carbon Film Resistor Color Code

Bands Meaning:

• Band 1 & 2 – First and second significant digits.

• Band 3 – Third digit (only for 5- and 6-band resistors).

• Band 4 – Multiplier (power of ten).

• Band 5 – Tolerance (accuracy of value).

• Band 6 – Temperature coefficient (change with temperature, only for 6-band).

Color Values:

• Digits: Black (0), Brown (1), Red (2), Orange (3), Yellow (4), Green (5), Blue (6), Violet (7), Grey (8), White (9)

• Multipliers: Same colors as digits, Gold (0.1), Silver (0.01)

• Tolerance: Brown (±1%), Red (±2%), Gold (±5%), Silver (±10%), None (±20%)

• Temp. Coefficient: Brown (100 ppm/K), Red (50 ppm/K), Orange (15 ppm/K), Yellow (25 ppm/K)

Example:

Colors: Red, Violet, Yellow, Gold -> 27×10,000=270kΩ27 × 10,000 = 270kΩ27×10,000=270kΩ ±5%.

Technical Specifications of Carbon Film Resistors

Parameter	Typical Specification
Resistance Range	1 Ω to 10 MΩ
Tolerance Options	±1%, ±2%, ±5%, ±10%, ±20%
Load Life Stability	≤ ±2% change after 1000 hours at rated load
Maximum Noise Level	≤ 20 µV/V
Temperature Coefficient (TCR)	±200 ppm/°C to ±1500 ppm/°C
Voltage Coefficient	0.0005 %/V
Maximum Operating Temperature	150 °C
Power Rating	0.125 W to 2 W (depending on size)
Dielectric Withstanding Voltage	Typically, 300 V to 700 V
Insulation Resistance	≥ 10⁹ Ω
Operating Temperature Range	-55 °C to +155 °C
Failure Rate	< 1 failure per 10⁶ hours
Environmental Protection	Coated with epoxy or similar protective material
Compliance	Meets RoHS, REACH, and IEC standards

Applications of Carbon Film Resistors

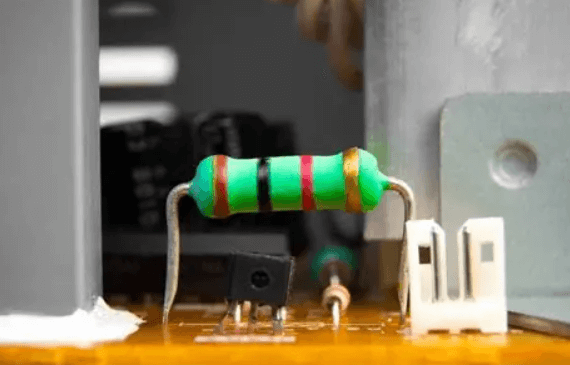

Figure 5. Carbon Film Resistors Uses

• High-Voltage Power Supplies – Carbon film resistors are ideal for circuits requiring resistance to voltages up to 15 kV.

• Radar and Communication Systems – Withstands high-frequency and heat-intensive environments.

• X-ray and Medical Imaging Equipment – Carbon film resistors operate reliably under elevated temperatures and electrical stress.

• Laser Technologies – Suitable for circuits exposed to extreme heat and power surges.

• Consumer Electronics – Commonly used in televisions, radios, and audio devices for signal stability.

• Automotive Electronics – Carbon film resistor supports performance in engine control units (ECUs) and other heat-prone automotive circuits.

• Industrial Machinery – Provides durability in power regulators, motor controls, and automation systems.

• Measurement and Test Instruments – Ensures accuracy in precision equipment exposed to varied temperatures.

• Power Conversion Systems – Carbon film resistors are used in inverters, UPS, and other systems where high voltage stability is required.

• Aerospace and Defense Applications – Critical for systems exposed to harsh environments and demanding operational conditions.

Carbon Film Resistors Advantages and Drawbacks

Features	Advantages	Disadvantages
Temperature Stability	Stable resistance across changing temperatures	Less stable than metal film resistors in extreme thermal conditions
Noise Performance	Low electrical noise, ideal for audio and precision circuits	Still noisier than metal film alternatives
Cost and Availability	Inexpensive and widely available	Lower performance compared to higher-grade resistors
Manufacturing Precision	Easy to fine-tune resistance using laser trimming	Limited to standard tolerance ranges (±2% to ±10%)
Durability	Epoxy coating protects against moisture and damage	Less durable in high-humidity or corrosive environments
Resistance Range	Offers a wide resistance range (1Ω to 10MΩ)	Limited performance at high frequencies
Power Handling	Supports common power ratings (1/8W to 2W)	Not suitable for high-power or high-precision applications
General Use	Reliable for most standard, non-critical electronic applications	Not recommended for mission-critical or highly sensitive electronics

Carbon Film Resistor vs. Other Resistor

Metal Film Resistor VS. Carbon Film Resistor

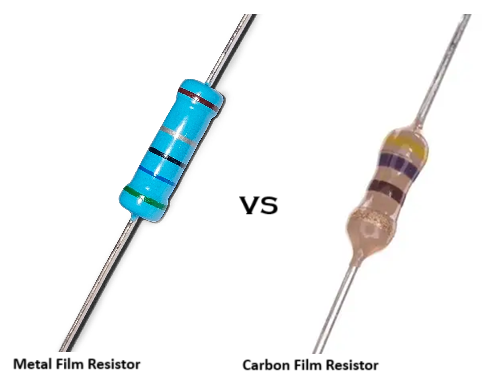

Figure 6. Metal Film Resistors and Carbon Film Resistors

Feature	Metal Film Resistor	Carbon Film Resistor
Material	Thin metal layer (usually nickel-chromium alloy) deposited on a ceramic rod.	Carbon film deposited on a ceramic substrate.
Construction	Metal film is precisely trimmed (spiral cut) to set resistance.	Carbon film is deposited and shaped to form resistance.
Tolerance	Very tight tolerance, typically ±0.1% to ±1%.	Higher tolerance, typically ±2% to ±5%.
Temperature Coefficient	Low (±50 to ±100 ppm/°C), stable with temperature changes.	Higher (±200 to ±500 ppm/°C), less stable with temperature.
Noise Level	Very low noise due to uniform metal film.	Higher noise because of granular carbon composition.
Stability & Reliability	Highly stable over time and environmental conditions.	Less stable; can drift with age and environmental changes.
Resistance Range	Wide range: typically from a few ohms to several MΩ.	Moderate range: typically from a few ohms to a few MΩ.
Power Rating	Generally lower power rating compared to carbon film of similar size.	Slightly higher power rating for the same size.
Frequency Response	Excellent for high-frequency applications (low inductance and capacitance).	Not as good at high frequencies; higher inductance.
Temperature Stability	Very good – minimal change with temperature variation.	Poorer – resistance can vary significantly with temperature.
Voltage Coefficient	Very low; resistance remains stable under voltage.	Higher; resistance can change with applied voltage.
Durability	More sensitive to surge and overload conditions.	Better tolerance to overloads and surges.
Cost	More expensive due to precision manufacturing.	Cheaper, widely used for general purposes.
Applications	Precision circuits, low-noise amplifiers, measurement instruments, high-frequency uses.	General-purpose electronics, consumer devices, applications where precision is not critical.
Color Code	Standard resistor color code used.	Standard resistor color code used.
Typical Sizes	Available in standard through-hole and SMD packages.	Also available in standard through-hole and SMD packages.
Lifespan	Longer lifespan in stable operating conditions.	Shorter lifespan compared to metal film, especially under stress.
Common Wattage Ratings	1/8W, 1/4W, 1/2W, 1W (typically lower for precision types).	1/4W, 1/2W, 1W, 2W (can handle slightly more power).

Carbon Composition Resistor VS. Carbon Film Resistor

While both serve the same basic function of limiting current and controlling voltage, they differ in construction, performance characteristics, stability, and applications.

Feature	Carbon Composition Resistor (CCR)	Carbon Film Resistor (CFR)
Construction	Made from a mixture of carbon powder and a binding resin, molded into a solid cylindrical body.	Made by depositing a thin carbon film on a ceramic substrate.
Manufacturing Process	Carbon particles are mixed with a binder, pressed, and baked.	Carbon film is deposited (usually via chemical vapor deposition) and spiral-cut to adjust resistance.
Resistance Range	Typically 1 Ω to 22 MΩ	Typically 1 Ω to 10 MΩ
Tolerance	Poor (±5% to ±20%)	Better (±1% to ±5%)
Temperature Coefficient	High (resistance varies significantly with temperature)	Lower than CCR (more stable with temperature changes)
Noise Level	High (generates more electrical noise)	Low (less noise due to uniform film structure)
Stability	Less stable over time and with environmental conditions	More stable and reliable over long periods
Power Rating	Can handle short bursts of high energy (surge capability)	Lower surge handling capability
Size	Larger for a given resistance and power rating	Smaller and more compact
Cost	Usually more expensive to produce	Generally cheaper than CCR
Lifespan	Shorter due to drift and degradation	Longer lifespan due to stable construction
Frequency Response	Poor at high frequencies	Better high-frequency performance
Current Use	Rarely used in modern electronics, mainly for specific surge applications	Commonly used in most electronic devices today

Conclusion

Carbon film resistors offer a good balance of performance and reliability. They provide low noise, stable resistance, and can handle a range of temperatures. Although they are less precise than metal film resistors and not as durable as some other types, they are still an excellent choice for standard applications. Their simple construction and protective coating ensure long-term operation. Making them a trusted component in many electrical and electronic systems.
