What Is a 12V DC Power Supply? A Simple Guide
2026-03-05 2875

Many everyday devices like LED lights, security cameras, and car accessories rely on a 12V DC power supply to work properly. It is one of the most common power standards because it offers a good balance of safety, efficiency, and compatibility with many electronic systems. In this article, we discuss what a 12V DC power supply is, why it is widely used, its main types, common applications, how to choose the right one, and its advantages and disadvantages.

Catalog

What Is a 12V DC Power Supply?

A 12V DC power supply is a device that converts alternating current (AC) from a wall outlet into 12-volt direct current (DC) used by many electronic devices. It regulates the output voltage to ensure a stable and reliable power source.

This voltage level provides a practical balance between safety, efficiency, and device compatibility, which is why 12V DC has become a widely used standard in modern electronic systems.

Why 12V DC Power Is Widely Used?

The popularity of 12V DC power comes from its practicality and compatibility with many electrical systems. Many battery technologies operate close to 12 volts, including automotive lead-acid batteries and portable energy storage systems. Because of this, 12V has become a convenient standard for mobile electronics and off-grid power setups.

Another advantage is safety. Compared with higher-voltage systems, 12V low-voltage power reduces the risk of electrical hazards while still providing enough energy to operate many electronic devices. These characteristics make 12V DC power a dependable choice for a wide range of applications.

Two Main Types of 12V Power Supplies

Two main types of power supplies are commonly used for 12V systems: switch mode power supplies (SMPS) and linear power supplies. Both convert electrical power into a stable 12V DC output, but they use different technologies and offer different advantages.

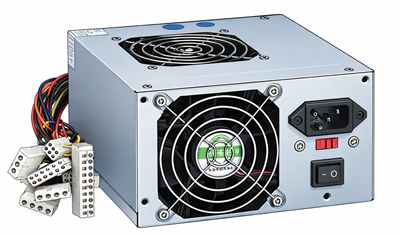

Figure 2. Switch Mode Power Supply (SMPS) Unit Used in Electronic Systems

Switch Mode Power Supply (SMPS): A switch mode power supply uses high-frequency switching circuits to convert and regulate electrical power efficiently. This design allows the power supply to be smaller, lighter, and more energy efficient.

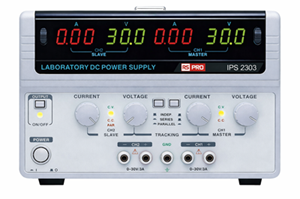

Figure 3. Laboratory Linear DC Power Supply Used for Stable and Low-Noise Voltage Output

Linear Power Supply: A linear power supply regulates voltage using transformers and semiconductor components. This design produces very stable, low-noise output power, making it suitable for applications that require clean and consistent voltage.

Both types can provide reliable 12V DC power. Switch mode power supplies are typically preferred for compact and energy-efficient devices, while linear power supplies are often used in systems that require extremely clean and stable voltage.

Common Applications of 12V DC Power Supplies

Figure 4. Common Applications of 12V DC Power Supplies in Everyday Devices and Systems

LED Lighting Systems

LED lighting is one of the most common applications for 12V DC power supplies because LEDs require low-voltage direct current to operate efficiently. In indoor environments, 12V power is widely used for LED strip lighting, under-cabinet lighting, office task lighting, display lighting, and decorative accent lighting. These lighting solutions are popular because LEDs are highly energy efficient and can use up to 75 percent less electricity than traditional incandescent bulbs while providing similar brightness.

Outdoor lighting systems also frequently rely on 12V power supplies since low-voltage wiring is safer and easier to install. Common outdoor uses include garden lighting, pathway lights, landscape spotlights, patio lighting, and decorative string lights, which help create functional and attractive lighting for residential and commercial spaces.

Automotive Electronics and Accessories

Vehicles operate on a 12V electrical system, which makes 12V DC power important for many automotive electronics and accessories. This power system supports devices such as smartphone and tablet chargers, laptop adapters, USB charging hubs, dash cameras, GPS navigation devices, tire inflators, and portable refrigerators. In addition, some vehicle setups use power inverters to convert 12V DC power into AC electricity, allowing small household appliances and electronic devices to operate inside the vehicle during travel.

Security and Surveillance Systems

Many security and surveillance systems rely on 12V DC power adapters to operate continuously and reliably. Common equipment powered by 12V includes CCTV cameras, IP security cameras, DVR and NVR recording systems, motion sensors, alarm controllers, and smart door locks. These devices require a stable and consistent power supply to maintain accurate monitoring, continuous recording, and dependable security performance.

Portable Electronics and Household Devices

Many small appliances and portable devices operate on 12V DC power systems because they support efficient and mobile power use. Common examples include portable refrigerators, cooling fans, aquarium pumps, air circulation devices, and water filtration systems. In addition, portable power stations often use internal 12V battery systems to supply energy to devices such as smartphones, cameras, laptops, camping equipment, and other small appliances. These portable power solutions are widely used for travel, outdoor activities, and emergency backup power where reliable electricity is needed away from standard wall outlets.

DIY Electronics and Robotics Projects

You often use 12V DC power supplies when building electronics projects or prototypes. Many components used in these projects operate efficiently at this voltage, including DC motors, servo motors, microcontrollers, sensor modules, and motor drivers. Model vehicles, robotics systems, and automation projects frequently rely on 12V power because it provides a practical balance between safety, performance, and reliable operation.

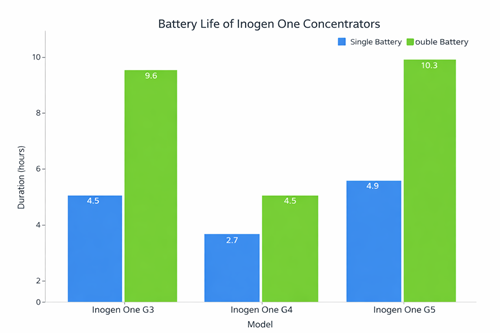

Figure 5. Battery Life of Inogen One G3, G4, and G5 with Single and Double Batteries

Marine, Medical, and Communication Systems

Marine electronics commonly operate on 12V DC power systems. These include GPS navigation systems, radar equipment, fish finders, marine radios, bilge pumps, and cabin lighting used on boats and other marine vessels.

Many types of medical equipment also rely on 12V DC power for reliable operation. Portable devices such as CPAP machines, oxygen concentrators, blood pressure monitors, and diagnostic equipment often use 12V systems. For example, portable oxygen concentrators like the Inogen One G3, G4, and G5 demonstrate how battery capacity affects runtime, with double batteries providing significantly longer operating times.

Many communication devices also operate using 12V DC power. These include Wi-Fi routers, broadband modems, network switches, and VoIP phones used in home and office networks.

Renewable Energy Systems

Small renewable energy systems often use 12V battery banks to store and manage power. Solar panels generate direct current electricity, which is stored in batteries and regulated by charge controllers to ensure safe and efficient charging. The most common controller types include PWM solar controllers and MPPT solar controllers, both designed to control the flow of energy from the solar panels to the battery system. These 12V power setups are widely used in RV solar systems, remote cabins, backup power solutions, and small wind energy installations where reliable off-grid electricity is required.

Choosing the Right 12V DC Power Supply

Choosing the correct 12V DC power supply helps ensure stable performance and protects connected devices from electrical damage. Before selecting a power adapter, it is important to verify several technical factors to make sure the power supply is compatible with the device.

1. Match Voltage and Current

Always verify the electrical requirements of the device before choosing a power supply. The output voltage must match the device exactly, while the current rating should be equal to or higher than the device requirement.

The device will only draw the amount of current it needs from the power supply, so using an adapter with a higher current rating is generally safe.

For example, if a device requires 12V 3A, you should choose a power supply rated at 12V 4A or higher to ensure sufficient operating capacity.

2. Understand Power Ratings

Power supplies are often rated in watts as well as voltage and current. Electrical power can be calculated using the following formula:

Power (W) = Voltage (V) × Current (A)

For example, a 12V 5A power supply can deliver up to 60 watts of power.

Understanding this relationship helps ensure that the power supply can provide enough power for the connected device.

3. Check Connector Size and Polarity

Many 12V power adapters use a 5.5 mm × 2.1 mm DC barrel connector, but other connector sizes may also be used. It is important to confirm that the connector size matches the device input.

You should also verify the polarity of the adapter before connecting it. Most adapters use center-positive polarity, but using the wrong polarity can damage electronic devices.

4. Look for Safety Protection Features

A reliable power supply should include built-in protection features to improve safety and protect connected devices. These protection circuits help prevent electrical damage during abnormal operating conditions.

Common protection features include over-current protection, short-circuit protection, and over-voltage protection, which help prevent damage to both the power supply and connected devices.

5. Consider Efficiency and Build Quality

High-quality power supplies operate more efficiently and generate less heat during use. Choosing a well-built adapter improves reliability, reduces energy waste, and helps maintain consistent performance over time.

A durable power supply with good internal components can also provide longer service life and more stable operation.

Installing and Maintaining a 12V DC Power Supply

Installation Tips

• Ensure proper ventilation to prevent overheating

• Avoid placing the power supply near moisture or extreme heat

• Use cables rated for the required current load

• Confirm polarity before connecting devices

Maintenance Tips

• Inspect power cables for damage or loose connections

• Clean ventilation openings to prevent dust buildup

• Avoid overloading the power supply beyond its rated capacity

How to Test a 12V Power Supply?

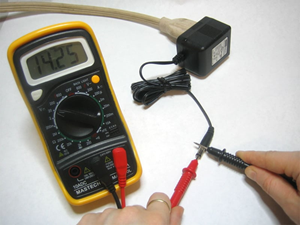

Figure 6. Testing a 12V Power Supply Output Using a Digital Multimeter

Tools Required

• digital multimeter

• 12V power supply

• AC outlet

Testing Steps

1. Plug the adapter into a wall outlet.

2. Set the multimeter to DC voltage mode.

3. Place the red probe in the center tip of the connector.

4. Touch the black probe to the outer barrel.

5. Read the voltage displayed on the multimeter.

Advantages and Disadvantages of a 12V Power Supply

Advantages

- Safe Low-Voltage Operation: 12V power reduces the risk of electrical shock compared with higher-voltage systems, making it suitable for home electronics and automotive equipment.

- Wide Compatibility: Many devices are designed to operate on 12V power, including LED lighting systems, routers, security cameras, car accessories, and small appliances.

- Ideal for Battery Systems: 12V works well with battery storage technologies such as lead-acid and lithium batteries. This makes it useful for solar systems, portable power stations, and vehicle electronics.

- Energy Efficient for Small Devices: Low-voltage systems are efficient for many small electronic devices, helping reduce energy consumption.

- Easy Installation and Maintenance: Many 12V systems use standard connectors and adapters, making them easy to install, replace, and maintain.

Disadvantages

- Limited Power Capacity: 12V systems may not provide enough power for large appliances or heavy industrial equipment.

- Voltage Drop Over Long Distances: Long cable runs can cause voltage drop, which may reduce device performance unless thicker wires are used.

- Higher Current Requirements: Because the voltage is relatively low, some devices require higher current to produce the same power output.

- Not Ideal for High-Power Applications: Large machinery and industrial equipment often require higher voltages such as 24V, 48V, or AC power systems.

Conclusion

A 12V DC power supply is widely used to power many modern electronic devices safely and efficiently. Understanding how it works and how to choose the right one helps ensure reliable performance and protects your equipment. With proper selection, installation, and maintenance, a 12V power supply can provide stable power for many different applications.
