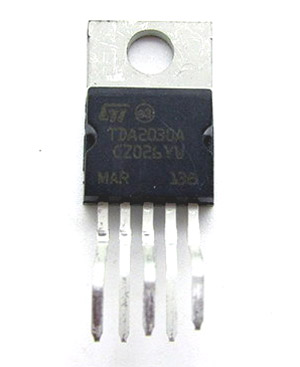

TDA2030 Amplifier IC Everything You Need to Know for DIY Audio Success
2024-12-02 5829

The TDA2030 IC is a powerful audio amplifier that can deliver up to 20W, making it great for DIY projects and small sound systems. It works with 4Ω and 8Ω speakers, giving clear and good-quality sound. Using heatsinks or fans helps keep it cool and running smoothly for a long time. Simple tweaks to the circuit, like adjusting capacitors and resistors, can make the sound even better for different setups.

Catalog

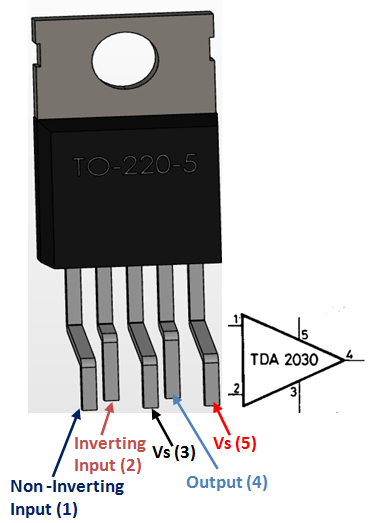

TDA2030A Pin Configuration

Pin Number	Pin Name	Description
1	Non – Inverting Input	Non inverting end (+) of Amplifier
2	Inverting Input	Inverting end (-) of Amplifier
3	Vs (Ground)	Connect to the ground of the circuit
4	Output	This pin outputs the amplified signal
5	Vs (Power)	Supply voltage, Minimum 6V and Maximum 36V



TDA2030A Characteristics

• Low-Frequency Class AB Amplifier - Specially designed for high-quality audio amplification with minimal distortion.

• Output Power up to 20 Watts - Delivers enough power for small to medium audio systems.

• Wide Power Supply Range (6V to 36V) - Offers flexibility for various power supply options, making it versatile for different projects.

• Short Circuit and Thermal Protection - Built-in safety features to prevent damage during overload or overheating.

• Breadboard Friendly - Easy to use in prototyping and circuit testing, making it beginner-friendly.

• 5-Pin TO220 Package - Compact and easy-to-handle design for straightforward installation.

Equivalents of TDA2030A

• TDA2050

• NTE1380

• LM386

Where Can You Use TDA2030 Amplifier?

The TDA2030 is a powerful audio amplifier that boosts sound from sources like mobile phones and microphones, making it louder and clearer. It can deliver up to 20W of power, ideal for driving 4Ω speakers at 12W or 8Ω speakers at 8W. This makes it perfect for home theaters, public announcements, small performances, and outdoor events.

With its ability to provide clear and distortion-free sound, the TDA2030 works well in places like rooms, auditoriums, and open spaces. It’s easy to use with different audio setups and improves sound performance without any hassle.

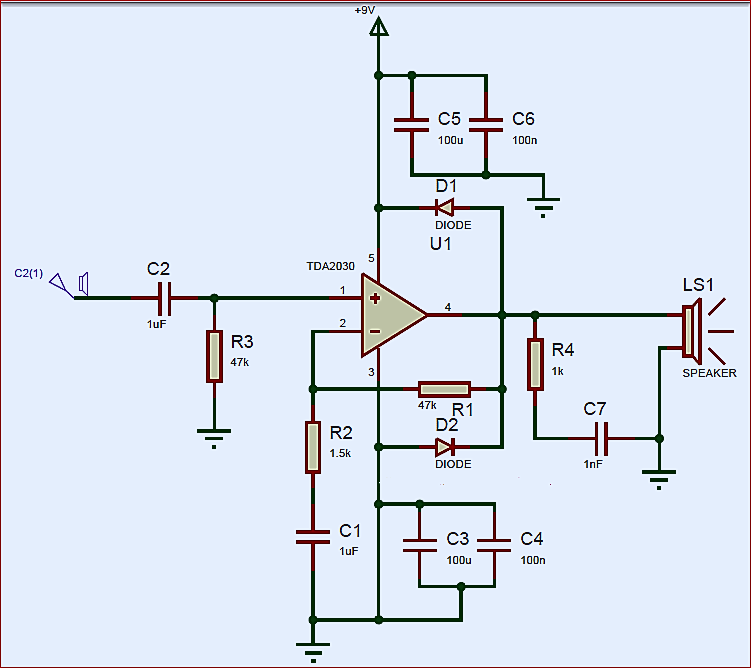

How to Use TDA2030 Amplifier?

The TDA2030 is easy to test on a breadboard due to its compact and breadboard-friendly TO220 package. It can work with both single and dual power supplies, but for simplicity, a 9V battery is used here. Connect the 5th pin (Vs) to the battery's positive terminal and the 3rd pin (Ground) to its negative terminal. Ensure the battery can provide enough current to meet the IC’s requirements.

In this basic circuit, resistors R1 and R2 create a potential divider, while diodes D1 and D2 protect the IC from reverse currents. The speaker (4Ω, 6Ω, or 8Ω) connects to the output, and an audio source like a mobile jack or microphone is connected via a coupling capacitor (C2). Note that the TDA2030 amplifies mono audio signals, so combine left and right channels into a single input if required. Proper heat management, such as using a heatsink, is recommended for reliable operation.

TDA2030 in Various Applications

• Amplification of Audio Signals

• High-Power Amplification Systems

• Compatibility for Dual or Split Power Supplies

• Easy to connect multiple speakers

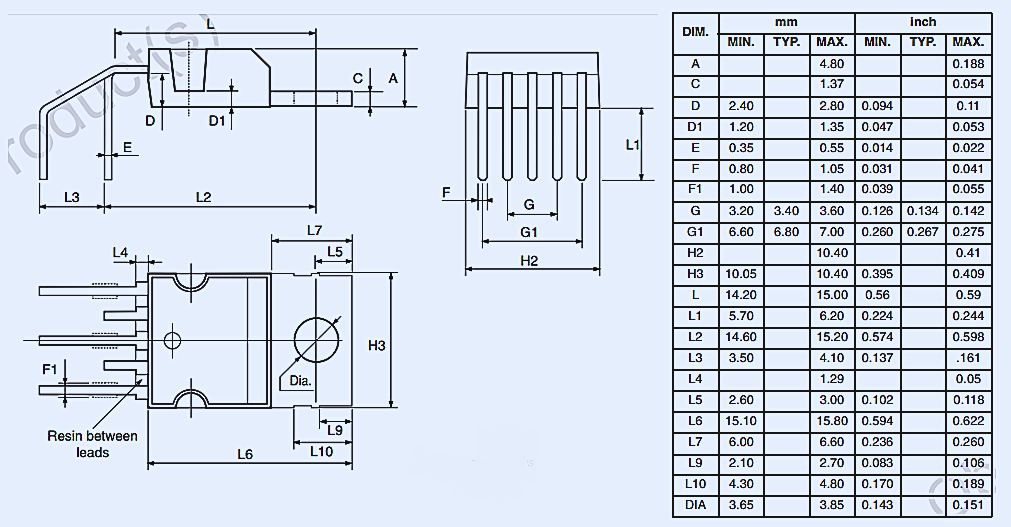

Two-Dimensional Model (PDIP)
