PIC Microcontroller Features, Types, and Applications
2026-02-18 3542

PIC microcontrollers are small chips that control electronic devices and embedded systems. They read inputs, process data, and control outputs automatically. In this article lets discuss about PIC microcontrollers, components, working principle, features, types, programming, and applications.

Catalog

PIC Microcontroller Basics?

A PIC microcontroller is a compact programmable integrated circuit used to control electronic devices and embedded systems. It is designed to automatically perform specific tasks by reading input signals, processing information, and controlling output devices. PIC stands for Peripheral Interface Controller. It is designed to interact with external hardware such as sensors, motors, displays, and communication devices, making it suitable for automation and control applications.

PIC microcontrollers are developed and supported by Microchip Technology, which provides software, development tools, and programming hardware for system design and implementation. PIC microcontrollers serve as the main controller in embedded systems. They provide efficient, reliable, and cost-effective control for a wide range of electronic and automation applications.

PIC Structure and Architecture

Figure 2. Basic Computer Achitecture with Control Unit, ALU, Memory, and I/O

Component	Description	Functions
Central Processing Unit (CPU)	The CPU is the main processing unit responsible for executing instructions and controlling all microcontroller operations. It processes data and coordinates internal components.	Executes program instructions, controls system operations, and manages data processing
Arithmetic Logic Unit (ALU)	Part of the CPU that performs arithmetic and logical operations.	Performs addition, subtraction, AND, OR, and other logical operations
Control Unit	Directs and manages the execution of instructions inside the microcontroller.	Controls instruction flow and coordinates internal operations
Registers	High-speed internal storage locations used during instruction execution.	Stores temporary data for fast processing
Accumulator	Special register used to store intermediate results during processing.	Holds temporary calculation results
Memory System (Harvard Architecture)	Uses separate memory for program instructions and data, allowing faster operation.	Enables simultaneous access to instructions and data
Flash Memory	Non-volatile memory used to store the program permanently.	Stores firmware and allows reprogramming
RAM (Random Access Memory)	Temporary memory used during program execution.	Stores variables and temporary data; cleared when power is off
EEPROM	Non-volatile memory used for permanent data storage.	Stores configuration settings and calibration data
Special Function Registers (SFR)	Control registers used to configure and manage hardware modules.	Controls timers, ADC, communication modules, and I/O ports
Stack Memory	Memory used to store return addresses during function calls and interrupts.	Ensures correct program execution flow
Input and Output Ports (GPIO)	Interface used to communicate with external devices.	Input: Receives signals from sensors and switches Output: Sends signals to LEDs, motors, and displays
Bus System	Communication system connecting internal components.	Data Bus: Transfers data Address Bus: Identifies memory locations
Analog-to-Digital Converter (ADC)	Converts analog signals into digital form.	Allows reading of sensor data such as voltage, temperature, and light
Timers and Counters	Provide timing and event counting functions.	Creates delays, measures frequency, generates signals, supports PWM
Interrupt System	Allows immediate response to important events.	Pauses current task and executes interrupt routines
Serial Communication Modules	Enables communication with external devices using standard protocols.	USART: Serial communication SPI: High-speed communication I2C: Multi-device communication
Oscillator and Clock System	Generates the clock signal that controls processing speed.	Supports internal and external clock sources and controls execution speed
CCP Module (Capture, Compare, PWM)	Provides advanced timing and signal control functions.	Capture: Records signal timing Compare: Generates timed output PWM: Controls motors and LED brightness

Working Principle of PIC Microcontrollers

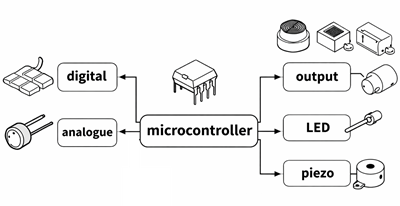

Figure 3. Microcontroller Processing Digital and Analog Inputs to Control Outputs

PIC microcontrollers operate using an input–process–output cycle:

Input: The microcontroller reads signals from sensors or switches.

Process: The CPU executes programmed instructions stored in memory.

Output: The microcontroller sends control signals to devices such as LEDs, motors, or displays.

For example, a PIC microcontroller can read temperature data from a sensor and activate a cooling fan when the temperature exceeds a preset value. This automatic response makes PIC microcontrollers suitable for control and automation systems.

Features of PIC Microcontrollers

• Integrated memory system for program storage and data handling

• Built-in communication interfaces (UART, SPI, I2C)

• Timing and signal control modules

• Interrupt support for fast event response

• Flexible clock system with internal and external oscillators

• Integrated ADC for analog signal processing

• Low power operation

• Wide range of models for different applications

Different Types of PIC Microcontrollers

Figure 4. DIP Package for 8-Bit PIC Microcontrollers

8-bit PIC Microcontrollers

8-bit PIC microcontrollers are best suited for simple and low-power applications. They are commonly used in basic control systems, household electronics, and sensor-based projects. These microcontrollers are cost-effective, easy to program, and widely used in beginner and intermediate embedded systems.

Figure 5. 16-Bit PIC Microcontroller from Microchip

16-bit PIC Microcontrollers

16-bit PIC microcontrollers provide higher performance, faster processing speed, and improved memory capacity compared to 8-bit models. They are suitable for more complex applications such as industrial automation, motor control, and power management systems. These microcontrollers offer better precision and efficiency.

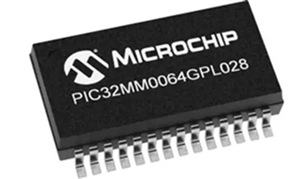

Figure 6. 32-Bit PIC Microcontroller Designed for High-Speed Processing and Control

32-bit PIC Microcontrollers

32-bit PIC microcontrollers offer the highest performance, advanced processing capability, and larger memory capacity. They are designed for complex and high-speed applications such as IoT systems, automotive electronics, and advanced embedded systems. These microcontrollers support more sophisticated features and faster data processing.

PIC Microcontroller Programming Guide

Programming a PIC microcontroller involves writing code that allows the chip to control hardware such as LEDs, motors, sensors, and communication modules. The process starts by selecting a suitable PIC device based on memory size, I/O pins, and required peripherals like ADC, timers, or communication interfaces.

Next, you set up the development environment using tools such as MPLAB X IDE and the appropriate XC compiler. After creating a project, you write the program—usually in C—by configuring registers to control ports, timers, and other internal modules.

Once the code is complete, it is compiled into a HEX file and uploaded to the microcontroller using a programmer like PICkit. After programming, the device executes the instructions stored in its memory. Testing and debugging ensure the system works correctly and reliably in real hardware applications.

Applications of PIC Microcontrollers

Industrial Automation – PIC microcontrollers are widely used in motor control, robotics, manufacturing systems, and traffic light control to manage automation, timing, and real-time process control in industrial environments.

Household Electronics – In home appliances, remote controls, and smart devices, PIC microcontrollers handle user inputs, timing functions, signal transmission, and intelligent control features.

Automotive Systems – PIC devices support engine control, lighting systems, and safety electronics by monitoring sensors and ensuring reliable vehicle operation.

Medical Devices – PIC microcontrollers are used in monitoring equipment and portable diagnostic devices to process sensor data and ensure accurate, stable performance.

IoT Systems – In smart home devices, wireless sensors, and automation systems, PIC microcontrollers enable connectivity, data processing, and remote control capabilities.

Comparison of Popular Microcontrollers

Figure 7. Arduino, PIC, AVR, and ARM Families

Feature	PIC	Arduino (Platform)	AVR	ARM
Architecture	RISC	Platform-based	8-bit RISC	32-bit RISC
Ease of Use	Moderate	Very easy	Moderate	Complex
Performance	Low to mid-level	Moderate	Low to mid-level	High
Power Consumption	Low	Moderate	Low	Moderate
Cost	Low	Higher board cost	Low	Higher
Development Tools	MPLAB X IDE	Arduino IDE	Microchip Studio	Multiple IDEs
Best Use	Industrial systems	Learning and prototyping	Simple control	Advanced systems

Pros and Cons of PIC Microcontrollers

Pros

• Easy to program and debug

• Low power consumption

• Integrated peripherals

• Cost-effective

• Reliable performance

• Strong Microchip support

• Wide range of models for different applications

Cons

• Lower performance than ARM microcontrollers

• Limited memory in entry-level models

• Less suitable for complex operating systems

Conclusion

PIC microcontrollers are reliable, affordable, and easy to use in many electronic systems. They help automate devices and simplify system design. Understanding PIC microcontrollers is important for learning embedded systems.
