MOC3063 Triac Optoisolator IC Guide Pin Diagram, Features and Details
2024-12-06 3102

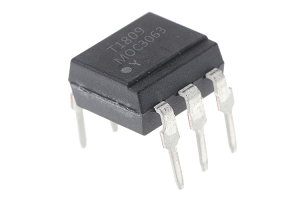

The MOC3063 IC is a 6-pin I/O optocoupler designed for efficient optical isolation, combining a gallium arsenide infrared LED with a TRIAC output and a zero-crossing circuit. This configuration minimizes switching noise and ensures smooth operation in devices powered by 115/240 VAC lines. The IC is widely used in applications such as AC motor drives, where it enables precise power modulation for energy-efficient and reliable motor control. It is also employed in managing valves, solenoids, and other electromechanical devices, making it great in both industrial and household systems. With its ability to prevent high voltage from damaging sensitive circuits, the MOC3063 enhances safety and system reliability across diverse applications.

Catalog

MOC3063 Features and Specifications

The MOC3063 IC is an optocoupler used for efficient and reliable control in electronic systems.

• Input IR Diode - Handles up to 50mA current, 6V reverse voltage, and 120mW power dissipation.

• Output Photo TRIAC - Supports 600V voltage, 1A peak current, and 150mW power loss, ideal for high-voltage stability.

• Energy Efficiency - Operates with just 5mA current and works in temperatures from -40°C to 100°C.

• Advanced Features - Zero-voltage crossing minimizes electrical noise, enabling smooth control of 115/240 VAC power.

MOC3063 Pinout

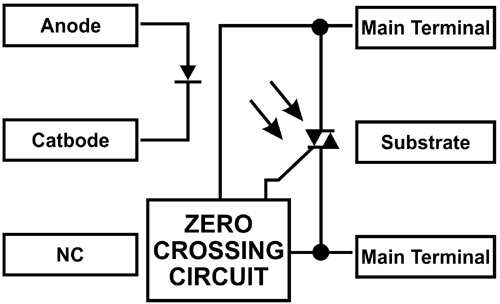

The IC has 6 I/O pins. You can refer to the table and image below for the pinout and internal circuitry details.

Pin Number	Pin Type
1	Anode
2	Cathode
3	NC(Not Connected)
4	Main Terminal
5	Substrate(Do not connect)
6	Main Terminal

How MOC3063 Works?

An optoisolator, or optocoupler, comes in various types, including phototransistor, photodarlington transistor, photo TRIAC, and photo SCR. The photo TRIAC and photo SCR types are commonly used in AC and high-power circuits. The MOC3063 optoisolator is often used in these applications to safely switch AC lines by isolating the input from the output, protecting you and sensitive components from high voltage.

The MOC3063 includes a zero-crossing feature that minimizes noise and interference by switching the TRIAC when the AC waveform crosses zero voltage. This not only extends the TRIAC's lifespan but also protects downstream equipment. It is ideal for controlling AC loads in consumer electronics and industrial automation, ensuring reliable and stable operation. Understanding zero-crossing technology allows engineers to optimize its benefits for better efficiency, safety, and system longevity.

MOC3063 Alternatives

• MOC3020

• MOC3041

• TLP363J

MOC3063 Packaging Options

• Thru-Hole Package - are durable and easy to assemble manually, making them ideal for prototypes. With 0.4-inch lead spacing, they are inserted through PCB holes and soldered, offering strong connections. They're preferred for applications with mechanical stress.

• Surface-Mount Device (SMD) Package - SMD packages are used for compact designs, mounted directly onto the PCB surface. They save space, improve performance, and are ideal for high-frequency applications.

• Comparison - Thru-hole packages provide strong mechanical support, while SMD packages save space and are better for automated assembly. The choice depends on project needs like durability and space.

MOC3063 Applications

• AC Motor Drives - Isolates control circuits from high-power components, protecting logic and extending equipment life.

• Lighting & Temperature Control - Separates low-power control from high-power circuits, improving accuracy and energy efficiency.

• Valve & Solenoid Control - Provides isolation and reduces noise for precise timing in automated manufacturing.

• General Use - Protects sensitive components and ensures reliable system performance.

MOC3063 IC Two-Dimensional Model

The 2D model of the MOC3063 helps you create accurate and efficient designs for circuits. By using these models, the design process becomes faster and more reliable, leading to the creation of strong, adaptable electronic systems that keep up with modern technology.
