| CDSOD323-T24C | |
|---|---|
| Part Number | CDSOD323-T24C |
| Manufacturer | Bourns Inc. |
| Description | TVS DIODE 24VWM 56VC SOD323 |
| Quantity Available | 61730 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.CDSOD323-T24C.pdf2.CDSOD323-T24C.pdf3.CDSOD323-T24C.pdf4.CDSOD323-T24C.pdf5.CDSOD323-T24C.pdf |
| Download | CDSOD323-T24C Details PDF |
| CDSOD323-T24C Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of CDSOD323-T24C | |||
|---|---|---|---|
| Manufacturer Part Number | CDSOD323-T24C | Category | Circuit Protection |
| Manufacturer | Bourns, Inc. | Description | TVS DIODE 24VWM 56VC SOD323 |

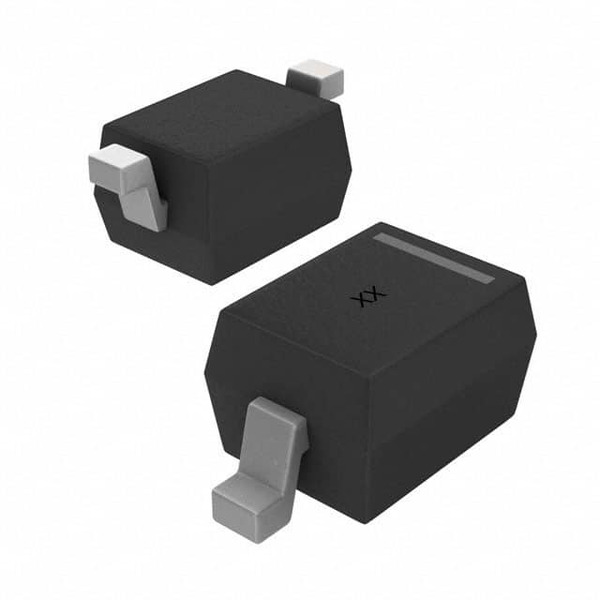

| Package / Case | SOD-323 | Quantity Available | 61730 pcs |
| Voltage - Reverse Standoff (Typ) | 24V | Voltage - Clamping (Max) @ Ipp | 56V (Typ) |
| Voltage - Breakdown (Min) | 26.7V | Type | Zener |
| Supplier Device Package | SOD-323 | Series | - |
| Power Line Protection | No | Power - Peak Pulse | 350W |
| Package / Case | SC-76, SOD-323 | Package | Tape & Reel (TR) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) | Capacitance @ Frequency | 3pF @ 1MHz |
| Bidirectional Channels | 1 | Base Product Number | CDSOD323 |
| Applications | General Purpose | ||
| Download | CDSOD323-T24C PDF - DE.pdfCDSOD323-T24C PDF - FR.pdfCDSOD323-T24C PDF - ES.pdfCDSOD323-T24C PDF - IT.pdfCDSOD323-T24C PDF - KR.pdf | ||
Manufacturer Part Number
CDSOD323-T24C
Description
High-performance transient voltage suppressor (TVS) diode designed for circuit protection against electrostatic discharge (ESD) and other transient voltage spikes. Offers superior clamping performance and fast response time.
Product Packaging
Tape and reel (TR) packaging
Surface mount, SOD-323 package
Small footprint for space-constrained applications
Why Choose This Product?
Robust circuit protection against transient voltage spikes
Fast response time to safeguard sensitive electronic components
Space-saving surface mount package for compact design
Key Features
Bidirectional, 1-channel TVS diode
Reverse standoff voltage of 24V
Breakdown voltage of 26.7V (min)
Clamping voltage of 56V (typ) at 6A peak pulse current
Peak pulse power rating of 350W
Operating temperature range of -55°C to 150°C
Product Compatibility
Suitable for use in a wide range of electronic devices and applications requiring circuit protection against transient voltage spikes.
Key Advantages
Excellent clamping performance to protect sensitive components
Fast response time to quickly suppress transient voltage events
Small, space-efficient surface mount package
Product Lifecycle
This product is currently active and in production
Equivalent or alternative models may be available, please contact our sales team for more information
Key Application Areas
General purpose circuit protection
Safeguarding sensitive electronic components against ESD and transient voltage spikes
Take Action Now
Get a quote for the CDSOD323-T24C transient voltage suppressor on our website. Protect your circuits and devices with this high-performance TVS diode solution.
Email us: Info@Ariat-Tech.com or RFQ CDSOD323-T24C Online.
