| R7F7015833AFP-C#KA3 | |
|---|---|
| Part Number | R7F7015833AFP-C#KA3 |
| Manufacturer | Renesas Electronics America Inc |
| Description | IC MCU 32BIT 2MB FLASH 144LFQFP |
| Quantity Available | 2802 pcs new original in stock. Request Stock & Quotation |
| Datasheets | R7F7015833AFP-C#KA3.pdf |
| R7F7015833AFP-C#KA3 Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of R7F7015833AFP-C#KA3 | |||
|---|---|---|---|
| Manufacturer Part Number | R7F7015833AFP-C#KA3 | Category | Integrated Circuits (ICs) |
| Manufacturer | Renesas Electronics Corporation | Description | IC MCU 32BIT 2MB FLASH 144LFQFP |
| Package / Case | 144-LFQFP (20x20) | Quantity Available | 2802 pcs |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | Supplier Device Package | 144-LFQFP (20x20) |
| Speed | 120MHz | Series | Automotive, AEC-Q100, RH850/F1K |
| RAM Size | 192K x 8 | Program Memory Type | FLASH |
| Program Memory Size | 2MB (2M x 8) | Peripherals | DMA, PWM, WDT |
| Package / Case | 144-LQFP | Package | Tape & Reel (TR) |
| Oscillator Type | Internal | Operating Temperature | -40°C ~ 105°C (TA) |
| Number of I/O | 120 | Mounting Type | Surface Mount |
| EEPROM Size | 64K x 8 | Data Converters | A/D 24x10/12b |
| Core Size | 32-Bit Single-Core | Core Processor | RH850G3KH |
| Connectivity | CANbus, CSI, I²C, LINbus, SPI, UART/USART | Base Product Number | R7F7015833 |
Manufacturer Part Number
R7F7015833AFP-C#KA3
Description

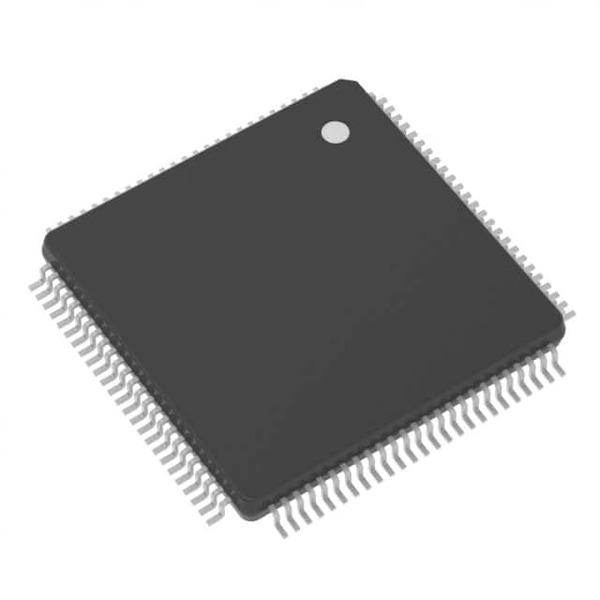

This is a 32-bit microcontroller from Renesas, part of the RH850/F1K series, in a 144-pin Low-profile Quad Flat Package (LFQFP) measuring 20mm x 20mm. It integrates 2MB of Flash memory, 64KB EEPROM, and 192KB RAM. The microcontroller uses a single-core RH850G3KH CPU running at up to 120MHz. Designed for automotive uses, it supports multiple serial interfaces and advanced peripherals, providing robust control and reliable performance in automotive electronic control units (ECUs).
Specifications
Series: RH850/F1K
Core Processor: RH850G3KH (32-bit, single-core, 120MHz)
Memory: 2MB Flash, 64KB EEPROM, 192KB RAM
Connectivity: CANbus, SPI, UART/USART, CSI, I2C, LINbus
Number of I/O: 120
Data Converters: 24 channels, 10/12-bit ADC
Peripherals: DMA controller, PWM, watchdog timer (WDT)
Voltage Supply: 3V to 5.5V
Oscillator: Internal
Operating Temperature: -40°C to +105°C
Package: 144-LFQFP (20mm x 20mm)
Mounting Type: Surface mount
Qualification: Automotive Grade, AEC-Q100
RoHS: Compliant (ROHS3)
Moisture Sensitivity Level: 3 (168 Hours)
Device Structure
Single-core CPU microcontroller based on the RH850G3KH core. Memory blocks for Flash, EEPROM, and RAM. Integrates multiple interface modules for communication. 144-pin layout in an LFQFP for extensive I/O access. Includes on-chip oscillators, data converters, and safety peripherals.
Performance Characteristics
120MHz clock speed for fast processing. Large program memory and RAM for complex automotive applications. Multiple high-speed communication modules (CAN, LIN, SPI, UART). Flexible and efficient DMA for fast data transfer. Wide operating voltage and temperature range for rugged environments. Integrated A/D converter supports high-resolution sensor interfacing.
Application Environments
Best suited for automotive ECUs, such as body controllers, gateways, CAN node communication modules, and advanced sensor modules. Supports environments with strict reliability, quality, and extended temperature needs.
Selection Guidelines
Choose this MCU if you need automotive qualification, high-speed operation, and robust memory capacity. Ideal for projects requiring extensive serial communication and many I/O ports. Verify that 2MB Flash and 192KB RAM are sufficient for your software. Check 120 I/O and interfaces are enough for your application design.
Usage Considerations
Proper handling to meet MSL 3 standards (168-hour floor life). Suitable for reflow soldering; avoid prolonged exposure to humidity. Ensure pin assignment matches design to prevent I/O conflicts. Provide stable supply voltage between 3V and 5.5V. Use recommended PCB layout for heat dissipation and signal integrity.
Potential Equivalent/Replacement Models
Currently, no direct drop-in equivalents are officially recommended by Renesas for this precise configuration. For similar RH850 series microcontrollers or alternative feature combinations, consult the RH850/F1K family or the Renesas website. For assistance in evaluating compatible or alternative models, contact the Ariat-Tech sales team for current recommendations and support based on your project requirements.
Email us: Info@Ariat-Tech.com or RFQ R7F7015833AFP-C#KA3 Online.
