| IDT71V016SA12PH | |
|---|---|
| Part Number | IDT71V016SA12PH |
| Manufacturer | Renesas Electronics America Inc |
| Description | IC SRAM 1MBIT PARALLEL 44TSOP II |
| Quantity Available | 3769 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.IDT71V016SA12PH.pdf2.IDT71V016SA12PH.pdf3.IDT71V016SA12PH.pdf |
| Download | IDT71V016SA12PH Details PDF |
| IDT71V016SA12PH Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of IDT71V016SA12PH | |||
|---|---|---|---|
| Manufacturer Part Number | IDT71V016SA12PH | Category | Integrated Circuits (ICs) |
| Manufacturer | Renesas Electronics Corporation | Description | IC SRAM 1MBIT PARALLEL 44TSOP II |
| Package / Case | 44-TSOP II | Quantity Available | 3769 pcs |
| Write Cycle Time - Word, Page | 12ns | Voltage - Supply | 3V ~ 3.6V |
| Technology | SRAM - Asynchronous | Supplier Device Package | 44-TSOP II |
| Series | - | Package / Case | 44-TSOP (0.400", 10.16mm Width) |
| Package | Tube | Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Memory Type | Volatile |
| Memory Size | 1Mbit | Memory Organization | 64K x 16 |
| Memory Interface | Parallel | Memory Format | SRAM |
| Base Product Number | IDT71V016 | Access Time | 12 ns |
| Download | IDT71V016SA12PH PDF - DE.pdfIDT71V016SA12PH PDF - FR.pdfIDT71V016SA12PH PDF - ES.pdfIDT71V016SA12PH PDF - IT.pdfIDT71V016SA12PH PDF - KR.pdf | ||
Manufacturer Part Number
IDT71V016SA12PH
Description
1 Megabit asynchronous SRAM memory IC. Offers a parallel interface. Comes in a surface-mount 44-pin TSOP II package. Designed for fast data access with 12 ns access time. Used for fast temporary data storage in digital systems.
Specifications
Memory type: SRAM, volatile
Memory size: 1 Megabit (1Mb)
Organization: 64K x 16 bits
Technology: Asynchronous
Interface: Parallel
Access time: 12 ns
Write cycle time: 12 ns
Supply voltage: 3V to 3.6V
Operating temperature: 0°C to 70°C (commercial grade)
Mounting type: Surface mount
Package/case: 44-TSOP II (0.400", 10.16mm width)
Moisture Sensitivity Level (MSL): 3 (168 hours)
RoHS status: Not RoHS compliant
REACH status: Unaffected
Product status: Obsolete
Programmable: Not verified
ECCN: 3A991B2B
HTSUS: 8542.32.0041
Device Structure

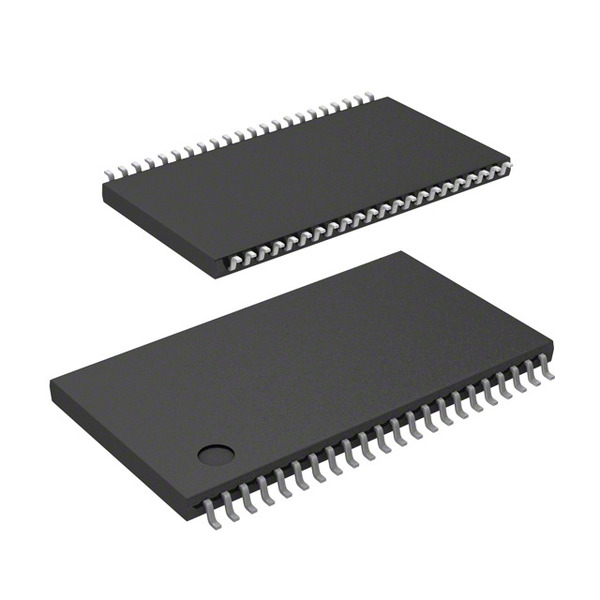

Single-chip SRAM in a compact surface-mount 44-pin TSOP II form factor
Organized as 64K words by 16 bits per word
Volatile storage, loses data when power is removed
Only operates with parallel input/output bus
No error correction circuitry integrated
Performance Characteristics
12 nanosecond address access time for both reading and writing
Fast write cycle (12 ns per operation)
Operates at low voltage (3V to 3.6V), suitable for battery-powered or low-power designs
Stable operation in the recommended temperature range (0°C to 70°C)
Does not offer ECC or other advanced reliability features
High read/write speed for typical volatile SRAM
Application Environments
Used in digital systems needing rapid, temporary storage of data
Commonly used in cache memory, buffers, lookup tables, and high-speed data processing applications
Suitable for commercial environments (not harsh or industrial)
Integrated into embedded systems, telecommunications, networking equipment, and instrumentation
Selection Guidelines
Choose this model if you need fast, parallel-access, temporary storage for 1 Megabit of data
Suitable for designs running at 3V to 3.6V
Ensure that 44-TSOP II surface mount packaging fits your assembly process
Check for RoHS non-compliance if your end-product requires environmental certifications
Product is obsolete, consider using only for repair or legacy system needs
Operating temperature supports only standard commercial environments
Usage Considerations
Store and handle under moisture-controlled conditions due to MSL 3 rating
Observe ESD precautions to avoid damage
Use only in systems that can support 3V to 3.6V supply
Be aware the device is no longer in production, so future availability is not guaranteed
Consider lead-free and RoHS status if your design has environmental requirements
Potential Equivalent/Replacement Models
There are direct alternatives and compatible replacement models available, including:
IS64WV6416DBLL-10CTLA3
IS61WV6416BLL-12TLI-TR
IS61LV6416-10TL
IS64WV6416DBLL-10CTLA3-TR
IS64C6416AL-15TLA3-TR
If you need further model recommendations or require assistance identifying an exact equivalent, please contact the Ariat-Tech sales team for more information.
Email us: Info@Ariat-Tech.com or RFQ IDT71V016SA12PH Online.
