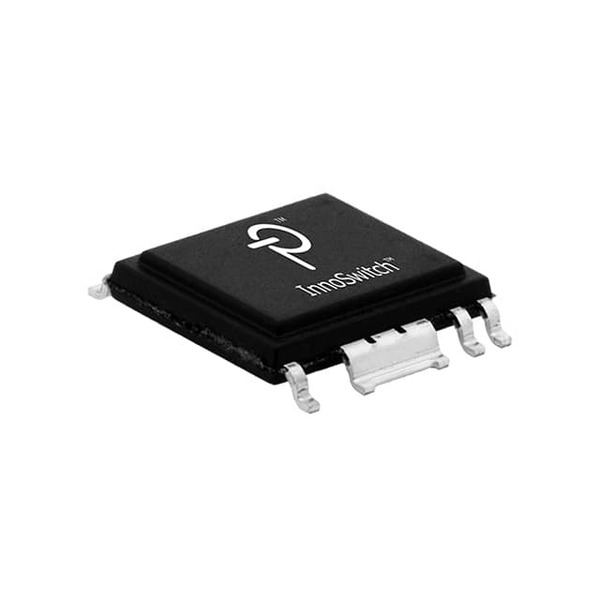

| INN2023K-TL | |
|---|---|
| Part Number | INN2023K-TL |
| Manufacturer | Power Integrations |
| Description | IC OFFLINE SW MULT TOP 16ESOP |
| Quantity Available | 15100 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.INN2023K-TL.pdf2.INN2023K-TL.pdf3.INN2023K-TL.pdf4.INN2023K-TL.pdf5.INN2023K-TL.pdf |
| Download | INN2023K-TL Details PDF |
| INN2023K-TL Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of INN2023K-TL | |||
|---|---|---|---|
| Manufacturer Part Number | INN2023K-TL | Category | Integrated Circuits (ICs) |
| Manufacturer | Power Integrations | Description | IC OFFLINE SW MULT TOP 16ESOP |
| Package / Case | eSOP-R16B | Quantity Available | 15100 pcs |
| Voltage - Supply (Vcc/Vdd) | - | Voltage - Breakdown | 650V |
| Topology | Flyback, Secondary Side SR | Supplier Device Package | eSOP-R16B |
| Series | InnoSwitch™-CH | Product Status | Active |
| Power (Watts) | 12 W | Package / Case | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads |
| Package | Tape & Reel (TR) | Output Isolation | Isolated |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Internal Switch(s) | Yes | Frequency - Switching | 100kHz |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage | Duty Cycle | 60% |
| Control Features | - | Base Product Number | INN2023 |
| Download | INN2023K-TL PDF - DE.pdfINN2023K-TL PDF - FR.pdfINN2023K-TL PDF - ES.pdfINN2023K-TL PDF - IT.pdfINN2023K-TL PDF - KR.pdf | ||
Manufacturer Part Number
INN2023K-TL
Description
High-Performance, Highly Integrated Offline Flyback Switcher IC with Integrated Primary-Side Regulation (PSR), Optimized for Low Power Adapters and Chargers
Product Packaging
Tape & Reel (TR) packaging
16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
eSOP-R16B package
Surface mount design
Why Choose This Product?
Highly integrated design for simplified power supply development
Optimized for low power adapters and chargers
Excellent efficiency and reliability
Key Features
Integrated primary-side regulation (PSR) for tight output voltage regulation
650V avalanche-rugged switch
Incorporates multiple protection features including current limiting, over-temperature, and over-voltage protection
Low component count for compact, cost-effective power supply designs
Product Compatibility
Compatible with a wide range of low power AC-DC applications
Key Advantages
Simplified power supply design
High efficiency and reliability
Comprehensive protection features
Cost-effective solution
Product Lifecycle
This product is currently active and available
Equivalent or alternative models:
- INN2024K-TL
- INN2025K-TL
Customers are advised to contact our sales team via the website for the latest product information and availability
Key Application Areas
Low power AC-DC adapters and chargers
USB power adapters
Auxiliary power supplies
Take Action Now
Get a quote for the INN2023K-TL on our website today! Limited time offer, don't miss out.
Email us: Info@Ariat-Tech.com or RFQ INN2023K-TL Online.
