| JQ1P-12V-F | |
|---|---|
| Part Number | JQ1P-12V-F |
| Manufacturer | Panasonic Electric Works |
| Description | RELAY GEN PURPOSE SPDT 10A 12V |
| Quantity Available | 25377 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.JQ1P-12V-F.pdf2.JQ1P-12V-F.pdf3.JQ1P-12V-F.pdf4.JQ1P-12V-F.pdf |
| JQ1P-12V-F Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of JQ1P-12V-F | |||
|---|---|---|---|
| Manufacturer Part Number | JQ1P-12V-F | Category | Relays |
| Manufacturer | Panasonic | Description | RELAY GEN PURPOSE SPDT 10A 12V |
| Package / Case | Bulk | Quantity Available | 25377 pcs |
| Termination Style | PC Pin | Switching Voltage | 250VAC, 110VDC - Max |
| Series | JQ | Seal Rating | - |
| Release Time | 10 ms | Relay Type | General Purpose |
| Package | Bulk | Operating Temperature | -40°C ~ 70°C |
| Operate Time | 20 ms | Must Release Voltage | 0.6 VDC |
| Must Operate Voltage | 9.6 VDC | Mounting Type | Through Hole |
| Features | - | Contact Rating (Current) | 10 A |
| Contact Material | Silver Tin Oxide (AgSnO) | Contact Form | SPDT (1 Form C) |
| Coil Voltage | 12VDC | Coil Type | Non Latching |
| Coil Resistance | 360 Ohms | Coil Insulation | Class E |
| Coil Current | 33.3 mA | Base Product Number | JQ1P |
Product Model
JQ1P-12V-F
Introduction

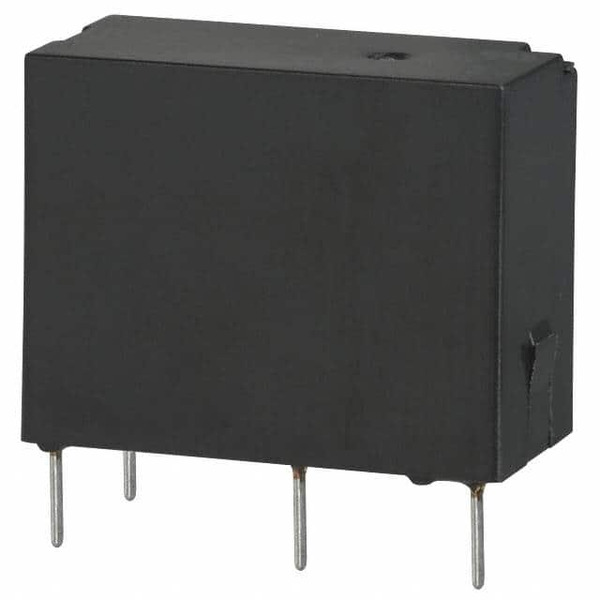

Panasonic JQ1P-12V-F general purpose power relay
Brand and Manufacturer
Panasonic
Features
SPDT configuration
Non-latching relay
PC pin termination
Product Performance
Switching up to 250VAC or 110VDC
10A contact rating
Fast operate and release times
Technical Specifications
Coil voltage 12VDC
Coil current 33.3 mA
Coil insulation Class E
Operate voltage 9.6 VDC min
Release voltage 0.6 VDC min
360 Ohms coil resistance
Dimensions, Shape, and Packaging
Through-hole mounting type
Standard PC pin package
Quality and Reliability
Contact material Silver Tin Oxide for reliability
Product Advantages
Designed for high-density PCB applications
Product Competitiveness
Obsolete status may limit competitiveness
Compatibility
Compatible with PCB through-hole mounting
Standard Certification and Compliance
Compliance with coil insulation Class E standards
Lifespan and Sustainability
Operational temperature range -40°C to 70°C
Designed for long-term reliability
Actual Application Fields
Used in a variety of power switching applications
Email us: Info@Ariat-Tech.com or RFQ JQ1P-12V-F Online.
