| PCA9535APW,118 | |
|---|---|
| Part Number | PCA9535APW,118 |
| Manufacturer | NXP USA Inc. |
| Description | IC XPND 400KHZ I2C SMBUS 24TSSOP |
| Quantity Available | 5004 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.PCA9535APW,118.pdf2.PCA9535APW,118.pdf3.PCA9535APW,118.pdf4.PCA9535APW,118.pdf5.PCA9535APW,118.pdf |
| Download | PCA9535APW,118 Details PDF |
| PCA9535APW,118 Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of PCA9535APW,118 | |||
|---|---|---|---|
| Manufacturer Part Number | PCA9535APW,118 | Category | Integrated Circuits (ICs) |
| Manufacturer | NXP USA Inc. | Description | IC XPND 400KHZ I2C SMBUS 24TSSOP |
| Package / Case | 24-TSSOP | Quantity Available | 5004 pcs |
| Voltage - Supply | 1.65V ~ 5.5V | Supplier Device Package | 24-TSSOP |
| Series | - | Product Status | Active |

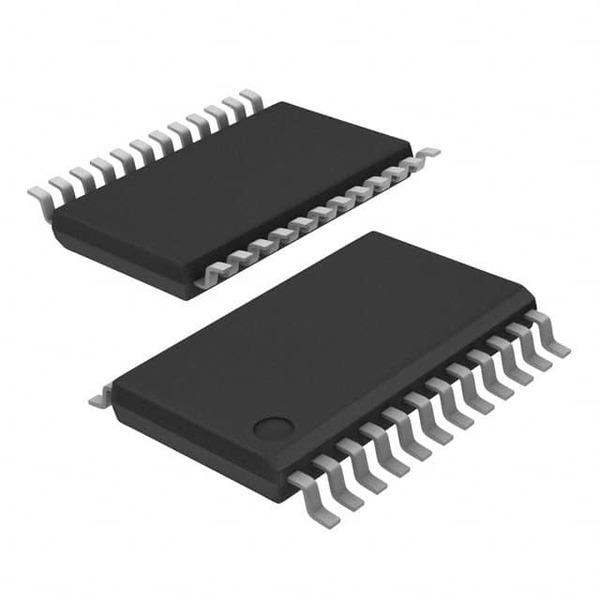

| Package / Case | 24-TSSOP (0.173', 4.40mm Width) | Package | Tape & Reel (TR) |
| Output Type | Push-Pull | Operating Temperature | -40°C ~ 85°C |
| Number of I/O | 16 | Mounting Type | Surface Mount |
| Interrupt Output | Yes | Interface | I²C, SMBus |
| Features | POR | Current - Output Source/Sink | 10mA, 25mA |
| Clock Frequency | 400 kHz | Base Product Number | PCA9535 |
| Download | PCA9535APW,118 PDF - DE.pdf | ||
Manufacturer Part Number
PCA9535APW,118
Description
Highly integrated I/O expander with configurable push-pull/open-drain outputs, power-on reset, and I2C/SMBus interface. Supports up to 16 programmable I/O pins.
Product Packaging
Tape & Reel (TR) packaging
24-TSSOP (0.173", 4.40mm Width) package/case
Operating voltage range: 1.65V to 5.5V
Operating temperature range: -40°C to 85°C
Push-pull output type
Output source/sink current: 10mA/25mA
400kHz clock frequency
Why Choose This Product?
Highly versatile I/O expander with advanced features, perfect for a wide range of embedded applications. Reliable performance, flexible configuration, and easy integration.
Key Features
16 programmable I/O pins
I2C and SMBus interface
Power-on reset (POR) function
Push-pull or open-drain output configuration
Configurable output current capabilities
Product Compatibility
This I/O expander is compatible with a wide range of microcontrollers and embedded systems supporting I2C or SMBus communication protocols.
Key Advantages
Flexible I/O expansion capabilities
Robust power supply and temperature range
Configurable output characteristics
Simple integration and programming
Product Lifecycle
The PCA9535APW,118 is an active product. Equivalent or alternative models may be available, please contact our sales team for more information.
Key Application Areas
Industrial automation and control
Home/building automation
Robotics and IoT applications
General-purpose I/O expansion
Take Action Now
Customers are recommended to obtain quotes for the PCA9535APW,118 I/O expander on our website. Get a quote, learn more, or inquire about limited time offers.
Email us: Info@Ariat-Tech.com or RFQ PCA9535APW,118 Online.
