Manufacturer Part Number

AX250-PQG208

Description

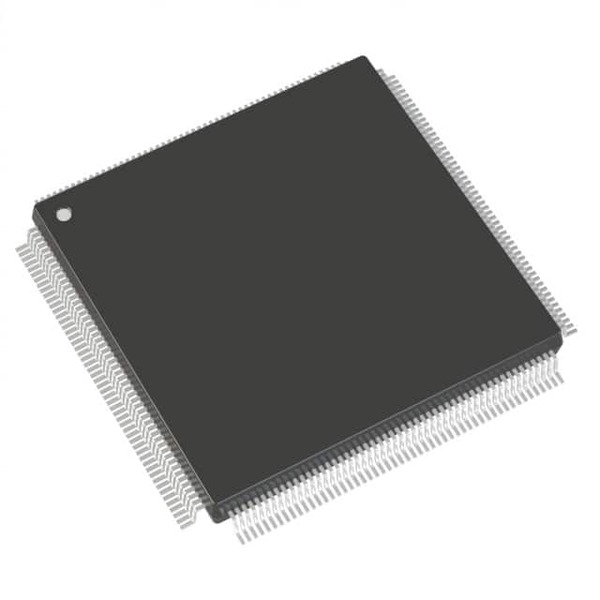

Axcelerator FPGA IC with 115 I/O pins in a 208-pin Quad Flat Package (QFP). It features 4224 logic array blocks, 55296 total RAM bits, and supports up to 250,000 gates. Designed for embedded applications, the device operates at supply voltages between 1.425V and 1.575V. It is surface mountable and packaged in a 208-BFQFP case (28mm x 28mm). The product is obsolete but new original stock is available.

Specifications

Logic Array Blocks (LABs/CLBs): 4224

Total RAM Bits: 55296

Number of I/O pins: 115

Number of Gates: Approximately 250,000

Supply Voltage: 1.425V to 1.575V

Operating Temperature Range: 0°C to 70°C

Mounting Type: Surface Mount Technology (SMT)

Package Type: 208-BFQFP (28mm x 28mm)

Moisture Sensitivity Level (MSL): 3 (168 hours)

REACH Status: Unaffected

ECCN Code: 3A991D

HTSUS Code: 8542.39.0001

Device Structure

Built as a Field Programmable Gate Array (FPGA) IC with an array of 4224 Configurable Logic Blocks. It integrates embedded RAM totaling 55,296 bits. The device is housed in a thin Quad Flat Package with 208 pins arranged around the perimeter for surface mounting on PCBs.

Performance Characteristics

Medium complexity FPGA suitable for embedded logic applications

Moderate I/O count (115 pins) for interfacing with external components

Operating within a standard temperature range (0°C to 70°C) ideal for commercial environments

Power supply requirements are low voltage, optimizing power consumption

Provides substantial gate count for mid-range programmable logic needs

Application Environments

Embedded systems requiring reconfigurable logic

Telecommunications and networking hardware

Industrial control systems

Consumer electronics requiring adaptable digital logic

Applications within commercial-grade temperature ranges

Selection Guidelines

Choose when moderate logic capacity (around 250k gates) is required

Suitable for designs needing up to 115 I/O connections

Use if a 208-PQFP package fits existing PCB footprints or design constraints

Recommended for commercial temperature range operations

Consider obsolescence status before procurement; verify inventory availability

Usage Considerations

The device is obsolete; ensure long-term supply for production needs

Handle moisture sensitivity level 3 packaging carefully to avoid damage

Confirm supply voltage adherence to 1.425V - 1.575V during design

Programming tools and support may be limited due to obsolescence

Verify compatibility with existing hardware and firmware infrastructure

Potential Equivalent/Replacement Models

No direct equivalent or drop-in replacement models are listed publicly due to obsolescence. Customers requiring alternatives should contact Ariat-Tech sales team for personalized support and possible alternative suggestions. Replacement options may include newer FPGA models from Microsemi or other vendors with matching logic capacity, pin count, and operating ranges depending on application requirements.
