Manufacturer Part Number

M2GL025T-VF256

Description

IGLOO2 FPGA with 138 programmable I/O pins, packaged in a compact 256-ball fine pitch BGA (14mm x 14mm). Built for embedded applications requiring high integration and flexible logic design. Supports advanced logic functions with a high on-chip RAM capacity of over 1Mb. Ideal for systems where reliable configurability and small form factor are essential.

Specifications

Part Family: IGLOO2

Number of Logic Elements/Cells: 27,696

Total RAM Bits: 1,130,496 bits

I/O Pins: 138

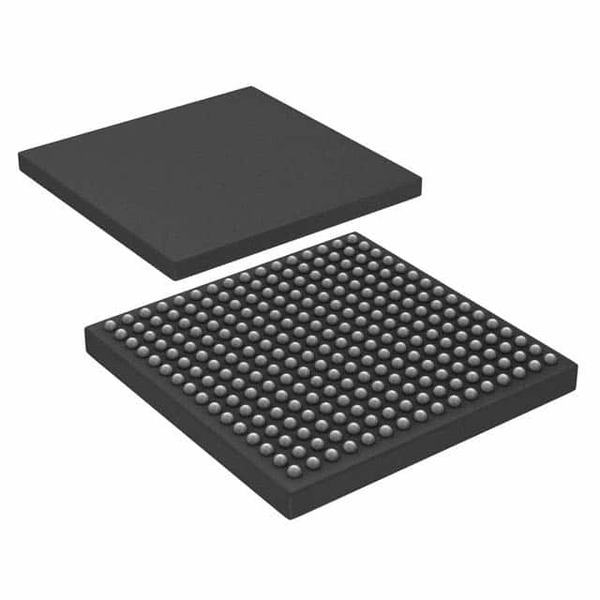

Package: 256-LFBGA (14 mm x 14 mm)

Voltage Supply: 1.14V to 2.625V

Mounting Type: Surface Mount

Operating Temperature: 0°C to +85°C (junction temperature)

Product Status: Active

RoHS Status: Not compliant

Moisture Sensitivity Level: 3 (168 hours)

REACH Status: Unaffected

ECCN: 3A991B2

HTSUS: 8542.39.0001

Device Structure

The device uses a fine-pitch ball grid array (BGA) enclosure for high-density board placement. On-chip resources include programmable logic cells, embedded RAM, and a well-defined I/O architecture for high data throughput. Designed for surface mount assembly, suitable for automated processes.

Performance Characteristics

Supports large-scale logic operations with nearly 28,000 logic cells. High memory integration (over 1Mb RAM) enables complex processing and buffering needs. Flexible I/O supports interfacing with a wide range of devices and signals. Reliable signal integrity and low power operation due to programmable voltage supply range.

Application Environments

Ideal for embedded system designs, industrial automation, smart control systems, automotive electronics, high-performance communication hardware, and safety-critical environments where in-system programmability is important.

Selection Guidelines

Choose this model when your design requires:

High-density programmable logic (almost 28k logic cells)

Large RAM integration

A balance of small footprint and high performance

Broad I/O capabilities in a compact BGA format

Active product availability and reliable source

Usage Considerations

Ensure adequate thermal management for continuous operation at temperatures up to 85°C. Strictly adhere to moisture sensitivity handling procedures (level 3, 168 hours exposure). Note the device is not RoHS compliant—important for those whose applications require compliance status. Verify supply voltage to prevent damage. Confirm that application requirements (logic, RAM, I/O) fit within the device’s specified limits.

Potential Equivalent/Replacement Models

For direct drop-in replacements or alternatives, review other M2GL025 family models. Check for M2GL025T-xxx devices in different packages or temperature grades if form factor or operating conditions require adjustment. Other IGLOO2 models (such as M2GL025S or M2GL025SC variants) might offer different I/O counts or packaging options.

If you do not find an equivalent part from the selection above or need compatibility guidance, please contact the Ariat-Tech sales team for further assistance and up-to-date replacement information.
