| JANTX2N2222A | |
|---|---|
| Part Number | JANTX2N2222A |
| Manufacturer | Microchip Technology |
| Description | TRANS NPN 50V 0.8A TO218 |
| Quantity Available | 7821 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.JANTX2N2222A.pdf2.JANTX2N2222A.pdf3.JANTX2N2222A.pdf4.JANTX2N2222A.pdf5.JANTX2N2222A.pdf |
| Download | JANTX2N2222A Details PDF |
| JANTX2N2222A Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of JANTX2N2222A | |||
|---|---|---|---|
| Manufacturer Part Number | JANTX2N2222A | Category | Discrete Semiconductor |
| Manufacturer | Micrel / Microchip Technology | Description | TRANS NPN 50V 0.8A TO218 |
| Package / Case | TO-218 | Quantity Available | 7821 pcs |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA |
| Transistor Type | NPN | Supplier Device Package | TO-218 |
| Series | Military, MIL-PRF-19500/255 | Power - Max | 500 mW |
| Package / Case | TO-206AA, TO-18-3 Metal Can | Package | Bulk |
| Operating Temperature | -65°C ~ 200°C (TJ) | Mounting Type | Through Hole |
| Frequency - Transition | - | DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Current - Collector Cutoff (Max) | 50nA | Current - Collector (Ic) (Max) | 800 mA |
| Base Product Number | 2N2222 | ||
| Download | JANTX2N2222A PDF - DE.pdf | ||
Product Model
JANTX2N2222A
Introduction
Military-grade NPN bipolar junction transistor (BJT)
Brand and Manufacturer
Microsemi
Features
NPN transistor
High current capacity up to 800mA
Breakdown voltage up to 50V
Military-spec compliance MIL-PRF-19500/255
Product Performance
Low collector-emitter saturation voltage
Minimum DC current gain of 100 @ 150mA, 10V
Collector cutoff current maximum of 50nA
Technical Specifications
Through-hole mounting type

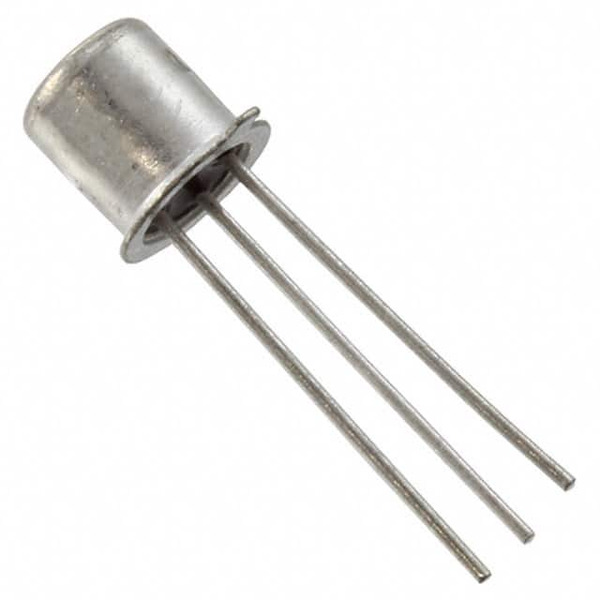

TO-206AA, TO-18-3 metal can package
Maximum power dissipation of 500mW
Dimensions, Shape, and Packaging
The bulk packaging format
Metal can TO-18 package for durability
Quality and Reliability
Designed for high-reliability applications
Military qualification ensures stringent quality standards
Product Advantages
Robust against harsh temperature conditions
Suitable for high-reliability applications in military and aerospace
Product Competitiveness
Complies with strict military specifications
Able to handle higher power and current than many comparable transistors
Compatibility
Compatible with through-hole PCB mounting
Appropriate for a wide range of electronic circuits
Standard Certification and Compliance
MIL-PRF-19500/255 military standard certified
Complies with relevant industry specifications
Lifespan and Sustainability
Designed for extended lifespan under rigorous conditions
Sustainable performance within specified operating temperatures
Actual Application Fields
Military and aerospace equipment
High-reliability commercial electronics systems
Scientific and precision instrumentation
Email us: Info@Ariat-Tech.com or RFQ JANTX2N2222A Online.
