Manufacturer Part Number

ATSAMD21J17D-AUT

Description

32-bit microcontroller from Microchip Technology, based on ARM Cortex-M0+ core. Features 128KB Flash memory, packaged in a 64-pin TQFP (10mm x 10mm). Designed for embedded applications requiring safety, high performance, and flexible connectivity.

Specifications

Core: ARM Cortex-M0+

Core Size: 32-bit single-core

Speed: Up to 48MHz

Flash Memory: 128KB

RAM: 16KB

Data Converters: 20-channel 12-bit ADC, 1-channel 10-bit DAC

Operating Voltage: 1.62V to 3.63V

I/O Pins: 52

Connectivity: I2C, LINbus, SPI, UART/USART, USB

Peripherals: Brown-out detection/reset, DMA, I2S, power-on reset, PWM, watchdog timer

Operating Temperature: -40°C to 85°C

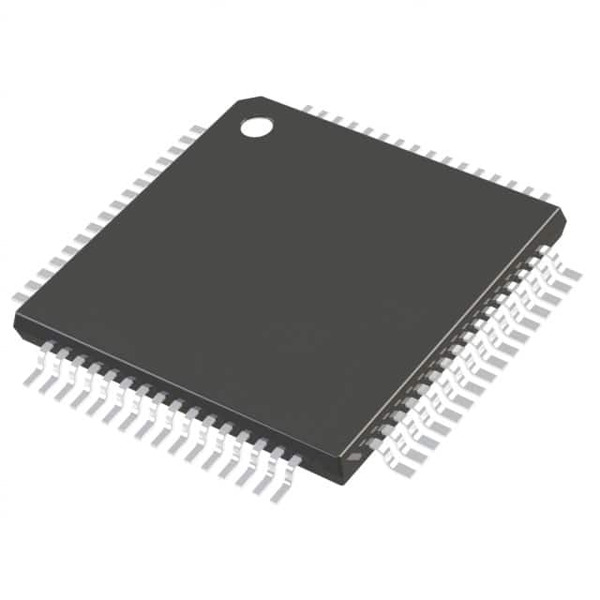

Mounting: Surface mount, 64-TQFP package, 10x10mm

RoHS3 Compliant, MSL 3 (168 hours), REACH unaffected

Device Structure

Single-core microcontroller chip in 64-pin TQFP package

Integrated FLASH and RAM memory

On-chip analog and digital peripherals

Internal oscillator

Supports multiple serial communication protocols

Performance Characteristics

Low power operation with voltage range down to 1.62V

High-speed processing at 48MHz

Enhanced safety with capabilities for functional safety (FuSa)

Rich analog features (20x12-bit ADC, 1x10-bit DAC)

Integrated brown-out detection and watchdog for fault tolerance

Multiple DMA channels for fast peripheral data movement

Application Environments

Industrial control and automation

Consumer and IoT devices

Portable and battery-powered systems

Medical instrumentation needing functional safety

Home automation and security systems

Any design needing both flexibility and robust connectivity

Selection Guidelines

Choose this model if you need a cost-effective, low-power 32-bit MCU with integrated analog, digital, and multiple communication interfaces

Suitable for designs with up to 52 general purpose I/Os

For safety-critical or industrial environments, consider the integrated functional safety features

Select if your application requires surface mount assembly in moderate volume production (MSL 3)

Ensure your required working temperature is within -40°C to 85°C

Usage Considerations

Be aware moisture sensitivity (MSL 3); follow proper storage and soldering guidelines

Confirm voltage and current requirements for onboard components

Check any software or hardware dependencies for ARM Cortex-M0+ development

Observe ESD precautions during handling and assembly

Properly layout PCB for analog and high-speed signals due to integrated ADC/DAC and USB

Potential Equivalent/Replacement Models

Microchip offers a variety of SAM D21 models with different Flash, RAM, and package options, such as ATSAMD21J18A (256KB Flash) or ATSAMD21J15B (64KB Flash)

ATSAMD21G18A, ATSAMD21E18A: Same core, different pin count (48/32 pins)

For more specialized safety or performance needs, consider ATSAMx5x family

If no exact equivalent is found, contact the Ariat-Tech sales team for detailed guidance on alternatives
