Manufacturer Part Number

A3P600-2FGG144

Description

This is a ProASIC3 FPGA from Microchip Technology. It features 97 input/output pins in a 144-ball Fine-Pitch Ball Grid Array (FBGA) package. Main functions include digital logic control, signal processing, and hardware acceleration. Designed for programmable logic applications, it can be reconfigured for different circuit designs, making it suitable for prototyping and custom logic implementations.

Specifications

600,000 system gates

110,592 RAM bits

97 input/output pins

Operates at a supply voltage range of 1.425V to 1.575V

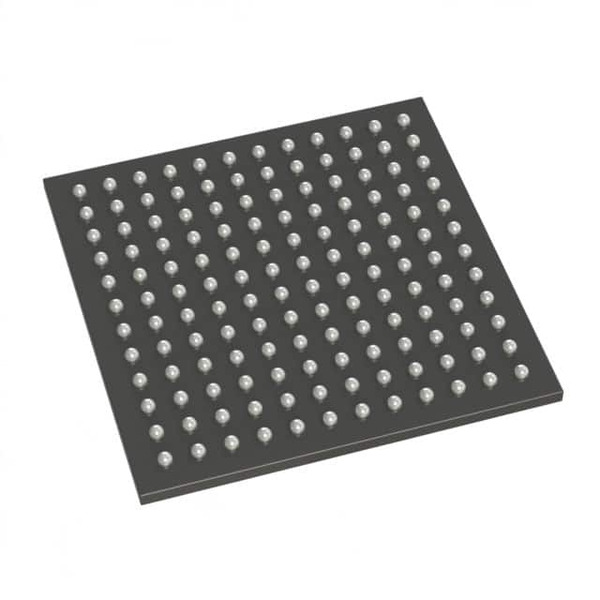

Surface mount package type: 144-FPBGA (13mm x 13mm)

Operating temperature from 0°C to 85°C (junction temperature)

Moisture Sensitivity Level (MSL): 3 (168 hours floor life)

RoHS3 compliant, REACH unaffected

ECCN code: 3A991D

HTSUS: 8542.39.0001

Device Structure

Based on ProASIC3 flash-based architecture

Arranged as Ball Grid Array for secure connection and heat dissipation

Programmable logic cells with onboard block RAM

Includes embedded RAM and user I/O

Supports flexible clock management

Allows hardware reconfiguration

Performance Characteristics

Fast reconfiguration and programming

Non-volatile flash memory, retains configuration without power

Low static and dynamic power consumption

High reliability in commercial and industrial applications

Supports a wide range of logic functions

Flexible resource allocation for custom designs

Active product, broadly available

Application Environments

Ideal for digital signal processing, industrial control, data processing, system integration, and hardware acceleration

Used in telecom, consumer electronics, security systems, test equipment, medical devices, automotive electronics

Suitable for prototyping and custom logic implementation

Selection Guidelines

Consider total gate count (600K gates) for logic complexity needs

Check RAM bit resources against system memory requirements

Verify I/O count (97 pins) for connected peripheral interfaces

Ensure compatibility with supply voltage (1.425V to 1.575V)

Match operating temperature with application environment

Assess mounting requirements; surface mount assembly needed

Evaluate package size (144-FPBGA, 13x13mm) for PCB design

Usage Considerations

Watch out for moisture sensitivity (MSL 3); adhere to 168-hour handling after opening

RoHS compliant for green manufacturing

Flash-based architecture, non-volatile and excellent for applications needing configuration retention

Test thermal management and footprint on dense PCB layouts

Not verified as a programmable device by DiGi-Electronics reference; double-check with supplier or documentation

Potential Equivalent/Replacement Models

There may be similar models in the ProASIC3 series with different gate counts, I/O, or package sizes, such as A3P1000-FGG144, A3P250-FGG144, A3P060-VQG100.

Other possible alternatives include Actel IGLOO series and Microchip PolarFire FPGAs, but these may differ in architecture and features.

Direct pin-to-pin substitutes should be verified based on individual requirements.

If no exact alternatives fit your needs, contact our Ariat-Tech sales team for personalized recommendation and cross-referencing support.
