Manufacturer Part Number

C0402C102K5RACTU

Description

1nF multilayer ceramic capacitor with 50V voltage rating. Uses X7R temperature coefficient for stable capacitance. Surface-mount device in small 0402 package. Made to meet ROHS requirements. Delivered in Tape & Reel packaging for automated assembly. Manufactured by KEMET. Over 10,000 pieces available.

Specifications

Capacitance: 1nF

Voltage rating: 50V

Dielectric type: X7R

Package: 0402 (surface-mount)

Lead type: SMD/SMT

RoHS compliant

Packaging: Tape & Reel (TR)

Device Structure

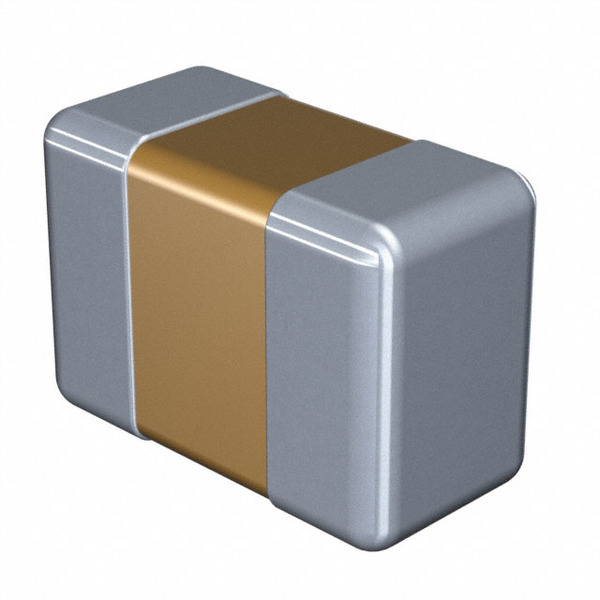

Multilayer ceramic construction. Stacked layers of ceramic dielectric and metal electrodes. No leads; contacts on bottom for soldering to circuit boards (SMT).

Performance Characteristics

Good stability across temperature and voltage range due to X7R dielectric. Moderate tolerance, suitable for signal filtering, decoupling and timing applications. Rated for 50V, works well for general electronics.

Application Environments

Used in consumer electronics, computers, telecommunications, automotive systems, industrial controls. Suitable for circuits needing moderate capacitance and small footprint.

Selection Guidelines

Choose based on needed capacitance, working voltage, package size (0402), and temperature coefficient. Make sure circuit operating conditions do not exceed 50V rating. For tight spaces, 0402 is ideal; for general stability, X7R is a common choice.

Usage Considerations

Verify compatibility with soldering process for 0402 SMD. Handle carefully due to small size. Avoid exceeding rated voltage and temperature. Confirm RoHS compliance for environmentally-sensitive applications.

Potential Equivalent/Replacement Models

There are alternative models available from other manufacturers that offer similar specs:

Murata GRM155R71H102KA01D

TDK C1005X7R1H102K050BB

Taiyo Yuden EMK105BJ102KV-F

Samsung CL05B102KB5NNNC

Vishay VJ0402Y102KXACW1BC

If exact equivalency is critical, check datasheets and compare all specs. If you need more options or cannot find a suitable match, contact Ariat-Tech sales team for assistance.
