Manufacturer Part Number

S29GL128S10DHSS10

Description

128 Megabit NOR Flash Memory IC from Infineon Technologies. Parallel interface for high-speed data access. SMD package with 64-ball FBGA layout (9mm x 9mm). Fits demanding embedded systems needing reliable, high-capacity, non-volatile storage. Actively produced and supported.

Specifications

Memory Density: 128Mbit (16MB)

Memory Type: Non-volatile NOR Flash

Organization: 8M x 16

Interface: Parallel

Write Cycle Time: 60ns

Access Time: 100ns

Voltage Supply: 2.7V ~ 3.6V

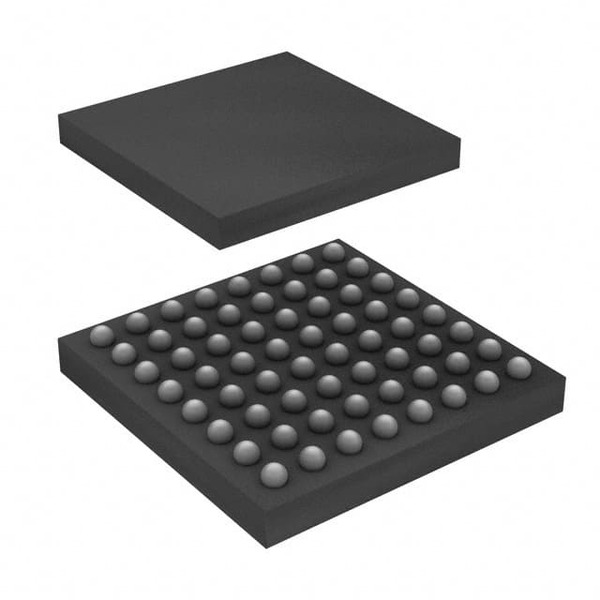

Package: 64-FBGA (9x9mm)

Mounting: Surface Mount

Operating Temperature: -40°C to +85°C

MSL: 3 (168 hours)

RoHS Status: RoHS3 Compliant

REACH Status: Unaffected

ECCN: 3A991B1A

Device Structure

64-ball FBGA surface-mount package. Organized in 8 Meg x 16 bits for wide bus width. Standard parallel connection pins. Low-profile for optimal PCB space. Robust silicon die.

Performance Characteristics

Fast access time of 100ns allows quick data retrieval. Write cycle time of 60ns offers efficient programming speed. Wide supply voltage supports battery-powered applications. Reliable data retention. Supports high-speed parallel read/write operations suitable for demanding embedded use. Industrial temperature range ensures stability in harsh conditions.

Application Environments

Ideal for embedded systems, industrial controls, automotive electronics, networking equipment, and communication devices. Suitable for applications needing frequent firmware updates, large code storage, or frequent boot processes.

Selection Guidelines

Choose this model when you need more than 16MB NOR flash, parallel memory access, surface mounting, and extended industrial temperature operation. Check supply voltage compatibility (2.7V-3.6V) and ensure product status is active. Verify tray packaging fits production requirements.

Usage Considerations

Ensure parallel bus design matches the 8Mx16 organization. Take MSL3 precautions during assembly (maximum 168 hours exposure before reflow). Provide proper power cycling. Store and handle devices in ESD-safe conditions. Meet recommended voltage to avoid memory corruption. Check that your system supports industrial temperature range.

Potential Equivalent/Replacement Models

There are several equivalent or alternative models available, including:

Cypress/Spansion S29GL128S10TFI010 (same density, similar performance, different package)

Micron MT28F008B3WG-8BET

Winbond W29GL128M

Macronix MX29GL128EH

Please verify compatibility based on package type and access times as small differences may affect your design. If none of these alternatives meet your needs, please contact Ariat-Tech sales team for more options and detailed cross-references.
