Manufacturer Part Number

BAS4005E6433HTMA1

Description

Surface-mount Schottky diode array, contains 2 diodes in a common cathode configuration, optimized for fast switching and low forward voltage. Handles up to 40V reverse voltage and 120mA continuous current per diode. Housed in a compact SOT-23-3 (TO-236-3, SC-59) package for easy integration in PCBs.

Specifications

Maximum reverse voltage: 40V

Average rectified current per diode: 120mA DC

Forward voltage drop (max): 1V at 40mA

Reverse leakage current: 1μA at 30V

Reverse recovery time: 100ps

Mounting: Surface mount

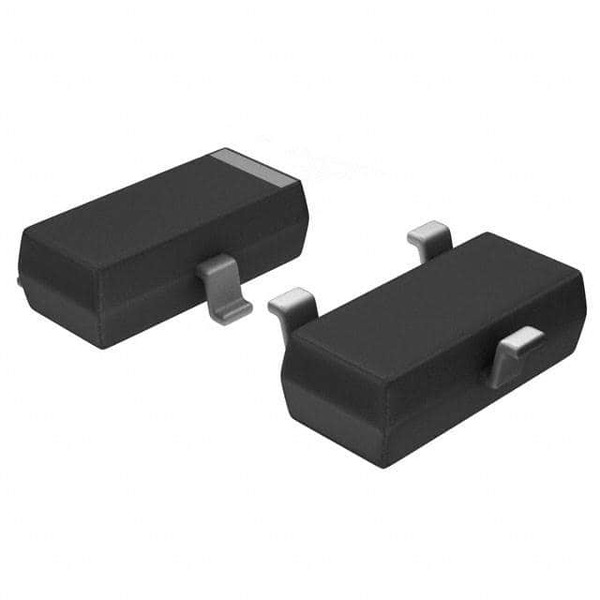

Package type: SOT-23-3 (TO-236-3, SC-59)

Operating junction temperature: up to 150°C

RoHS3 compliant, REACH unaffected

Moisture sensitivity: MSL 1 (unlimited)

Device Structure

Diode array with two Schottky diodes connected in a common cathode layout. Built on a silicon platform, the device uses Schottky barrier technology for fast switching and reduced loss. Package is SOT-23-3 for compact circuit design.

Performance Characteristics

Very fast switching with 100ps reverse recovery time. Low forward voltage ensures energy efficiency. Handles small signal up to 120mA per diode. Minimal leakage current supports high reliability and low standby power consumption. Wide operating temperature range up to 150°C.

Application Environments

Ideal for signal switching, voltage clamping, rectification in portable and general-purpose electronic circuits. Used in low-current, high-speed applications such as logic level switching, RF circuits, and small signal rectification. Suitable for consumer electronics, communication devices, and industrial control systems.

Selection Guidelines

Choose this model for applications needing fast switching, small signal rectification, and low forward voltage loss. Compatible with any surface-mount assembly using SOT-23-3 footprint. Verify that voltage and current demands are within device ratings. For designs needing higher current, higher voltage, or alternative PCB footprints, consider other options.

Usage Considerations

Ensure operating voltage does not exceed 40V and current does not exceed 120mA per diode. Design with proper heat dissipation if used at high temperatures. Check compatibility with the SOT-23-3 footprint for PCB layout. Store and handle as per MSL 1; standard ambient conditions are sufficient. RoHS3 and REACH compliance makes the part suitable for green and regulated applications.

Potential Equivalent/Replacement Models

There are equivalent and alternative models available. Possible replacements include:

ON Semiconductor BAS40-05LT1G

Nexperia BAS40-05,215

Vishay BAS40-05

Rohm RB524S-30

If you need to confirm cross-compatibility or are looking for further alternatives, contact Ariat-Tech sales team for more information and support.
