Manufacturer Part Number

ZXMS6005DN8-13

Description

N-channel power driver IC for general switch and load driving applications. Integrates advanced protection features. Handles switching loads up to 60V and up to 1.8A per output. Suitable for automotive and industrial use. Supplied in an 8-lead SOIC package for surface mounting. Belongs to the INTELLIFET® series known for robust MOSFET switches with smart protection.

Specifications

Load voltage up to 60V maximum. Output current per channel is 1.8A max. Rds(on) typical is 150mΩ. Supports supply voltages of 3.3V or 5V. Two outputs, each with 1:1 input to output ratio. Input type is non-inverting. Fault protections include current limiting, over temperature and over voltage protection. Auto-restart feature present. Operating temperature range is -40°C to 125°C (TA). RoHS and REACH compliant. Moisture Sensitivity Level is 1 (Unlimited).

Device Structure

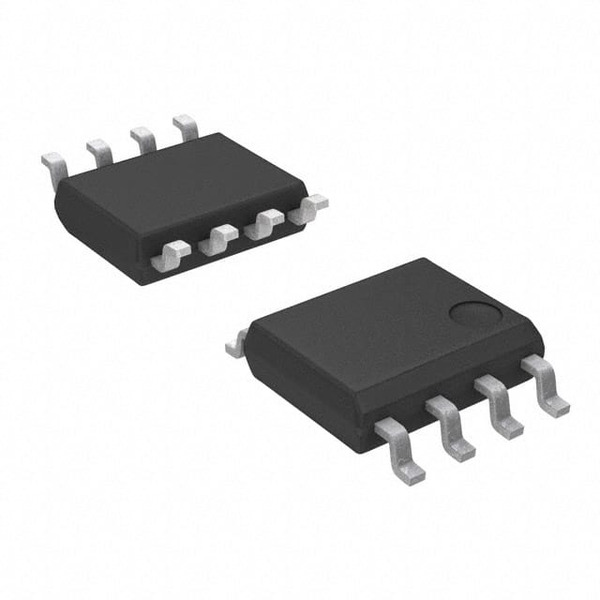

Comprised of two independent N-channel MOSFET power switches. Low-side output configuration. Device is organized in an 8-lead SOIC wide body package for surface mounting on PCBs. Logic level input control (On/Off), no complex interface required.

Performance Characteristics

Handles fast switching and high-load currents. Offers reliable fault protection with fixed current limiting and thermal/voltage shutdown. Low Rds(on) makes switching efficient and minimizes heat generation. Auto-restart improves fault recovery and operational durability. High supply voltage and current support allow versatile use in demanding applications.

Application Environments

Designed for automotive load management, industrial automation, relay replacement, and power distribution controls. Suited for driving solenoids, lamps, fans, valves, and small motor loads. Ideal for environments needing robust fault protection and reliable operation under harsh temperature ranges.

Selection Guidelines

Select based on load voltage requirement (up to 60V), output current demand (<1.8A per channel), and desired protection features. Ensure supply voltages (3.3V or 5V) are compatible. Check package type (8-SOIC) fits your PCB layout. Confirm RoHS, REACH compliance if required for the application.

Usage Considerations

Use suitable heat sinking or PCB layout to manage possible heat buildup. Ensure on/off logic signals meet input requirements (non-inverting logic). Avoid operating above maximum ratings for voltage and current. Validate auto-restart functionality in fault-sensitive systems. Properly evaluate PCB moisture protection; although MSL is unlimited, handling protocols should be followed.

Potential Equivalent/Replacement Models

No direct equivalents specified for ZXMS6005DN8-13 among Diodes Incorporated or other major brands. For alternative options or compatible models, please contact the Ariat-Tech sales team for up-to-date guidance and personalized recommendations.
