| STPS3045CT | |
|---|---|
| Part Number | STPS3045CT |
| Manufacturer | STMicroelectronics |
| Description | DIODE ARRAY SCHOTTKY 45V TO220AB |
| Quantity Available | 38469 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.STPS3045CT.pdf2.STPS3045CT.pdf3.STPS3045CT.pdf4.STPS3045CT.pdf |
| Download | STPS3045CT Details PDF |
| STPS3045CT Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of STPS3045CT | |||
|---|---|---|---|
| Manufacturer Part Number | STPS3045CT | Category | Discrete Semiconductor |
| Manufacturer | STMicroelectronics | Description | DIODE ARRAY SCHOTTKY 45V TO220AB |

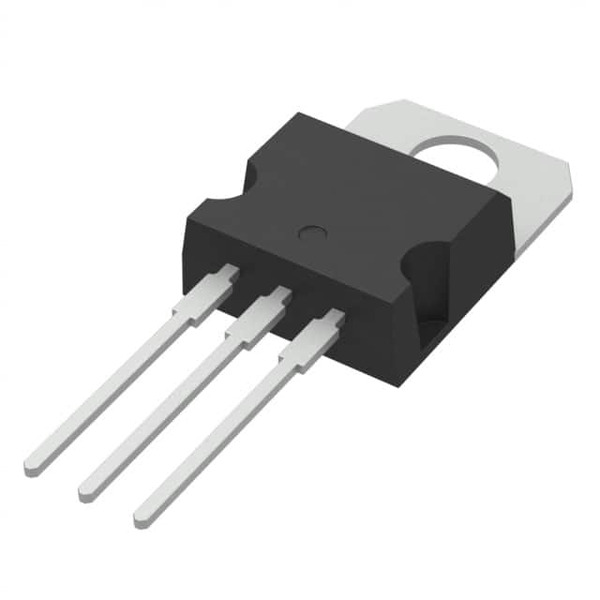

| Package / Case | TO-220 | Quantity Available | 38469 pcs |
| Voltage - Forward (Vf) (Max) @ If | 570 mV @ 15 A | Voltage - DC Reverse (Vr) (Max) | 45 V |
| Technology | Schottky | Supplier Device Package | TO-220 |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Series | - |
| Product Status | Active | Package / Case | TO-220-3 |
| Package | Tube | Operating Temperature - Junction | 200°C (Max) |
| Mounting Type | Through Hole | Diode Configuration | 1 Pair Common Cathode |
| Current - Reverse Leakage @ Vr | 200 µA @ 45 V | Current - Average Rectified (Io) (per Diode) | 15A |
| Base Product Number | STPS3045 | ||
| Download | STPS3045CT PDF - DE.pdfSTPS3045CT PDF - FR.pdfSTPS3045CT PDF - ES.pdfSTPS3045CT PDF - IT.pdfSTPS3045CT PDF - KR.pdf | ||
Product Model
STPS3045CT
Introduction
Schottky Rectifier Diode Array
Brand and Manufacturer
STMicroelectronics
Features
Schottky Diode Type
Fast Recovery Speed
Common Cathode Configuration
High Current Capability
Low Forward Voltage Drop
Product Performance
Fast Reverse Recovery Time
High Surge Current Capacity
Low Power Loss and Heat Generation
Efficiency in High Frequency Circuits
Technical Specifications
Diode Array 1 Pair Common Cathode
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 570mV @ 15A
Current - Reverse Leakage @ Vr 200A @ 45V
Operating Temperature - Junction 200°C (Max)
Dimensions, Shape, and Packaging
Through Hole Mounting Type
Package/Case TO-220-3
Supplier Device Package TO-220AB
Packaging in Tube
Quality and Reliability
Lead Free
RoHS Compliant
Product Advantages
Energy Saving
Low Thermal Resistance
High Frequency Operation
Product Competitiveness
Optimized for High Voltage and Current handling
Compatibility
Common Cathode for Simplified Circuit Design
Standard Certification and Compliance
Lead-free / RoHS Compliant
Lifespan and Sustainability
Long Junction Lifespan
Suitable for Rugged Environments
Actual Application Fields
Switch Mode Power Supplies
DC-DC Converters
Free-Wheeling Diodes
Reverse Battery Protection
Automotive Applications
Other Information
Base Part Number STPS3045C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Digi-Key Part Number 497-2751-5-ND
Manufacturer Standard Lead Time 9 Weeks
Email us: Info@Ariat-Tech.com or RFQ STPS3045CT Online.
