| STP20NM50FP | |
|---|---|
| Part Number | STP20NM50FP |
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 550V 20A TO220FP |
| Quantity Available | 3710 pcs new original in stock. Request Stock & Quotation |
| Datasheets | STP20NM50FP.pdf |
| Download | STP20NM50FP Details PDF |
| STP20NM50FP Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of STP20NM50FP | |||
|---|---|---|---|
| Manufacturer Part Number | STP20NM50FP | Category | Discrete Semiconductor |
| Manufacturer | STMicroelectronics | Description | MOSFET N-CH 550V 20A TO220FP |

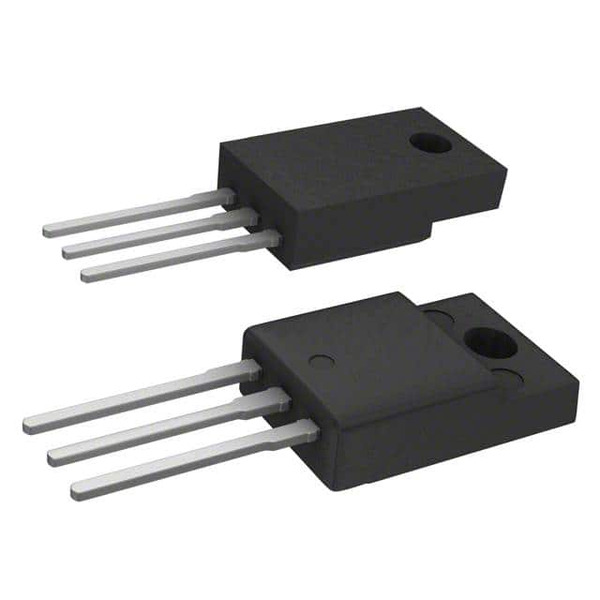

| Package / Case | TO-220FP | Quantity Available | 3710 pcs |
| Vgs(th) (Max) @ Id | 5V @ 250µA | Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | TO-220FP |
| Series | MDmesh™ | Rds On (Max) @ Id, Vgs | 250mOhm @ 10A, 10V |
| Product Status | Obsolete | Power Dissipation (Max) | 45W (Tc) |
| Package / Case | TO-220-3 Full Pack | Package | Tube |
| Operating Temperature | -65°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Input Capacitance (Ciss) (Max) @ Vds | 1480 pF @ 25 V | Gate Charge (Qg) (Max) @ Vgs | 56 nC @ 10 V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 550 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) | Base Product Number | STP20N |
| Download | STP20NM50FP PDF - DE.pdfSTP20NM50FP PDF - FR.pdfSTP20NM50FP PDF - ES.pdfSTP20NM50FP PDF - IT.pdfSTP20NM50FP PDF - KR.pdf | ||
Product Model
STP20NM50FP
Introduction
N-Channel 550V 20A MOSFET
Brand and Manufacturer
STMicroelectronics
Features
N-Channel MOSFET
High drain-source voltage 550V
Continuous drain current of 20A
Through Hole mounting type
Max power dissipation 45W
Operating temperature range -65°C to 150°C
Product Performance
Low threshold voltage of 5V
Gate-source voltage of ±30V
Low Rds (on) of 250 mOhm
Gate charge of 56nC
Input capacitance of 1480pF
Technical Specifications
Metal Oxide Semiconductor FET Technology
Gate charge (Qg) (Max) @ Vgs: 56nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 1480pF @ 25V
Drive voltage for max Rds on, Min Rds on: 10V
MOISTURE SENSITIVITY LEVEL (MSL) of 1 (Unlimited)
Dimensions, Shape, and Packaging
TO-220-3 Full Pack case
Supplied in Tube packaging
Through Hole mounting
Quality and Reliability
Lead free / RoHS Compliant
Product Advantages
Designed for high efficiency switching applications
Product Competitiveness
Optimized for high voltage and current handling
Compatibility
Usable in various circuits requiring N-Channel FET
Standard Certification and Compliance
Lead free / RoHS Compliant
Lifespan and Sustainability
Designed for long life and sustained performance
Actual Application Fields
Power supply units
Switching applications
Power management systems
Energy conversion devices
Email us: Info@Ariat-Tech.com or RFQ STP20NM50FP Online.
