| SMBJ100CA-TR | |
|---|---|
| Part Number | SMBJ100CA-TR |
| Manufacturer | STMicroelectronics |
| Description | TVS DIODE 100VWM 162VC SMB |
| Quantity Available | 7902 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.SMBJ100CA-TR.pdf2.SMBJ100CA-TR.pdf |
| Download | SMBJ100CA-TR Details PDF |
| SMBJ100CA-TR Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of SMBJ100CA-TR | |||
|---|---|---|---|
| Manufacturer Part Number | SMBJ100CA-TR | Category | Circuit Protection |
| Manufacturer | STMicroelectronics | Description | TVS DIODE 100VWM 162VC SMB |

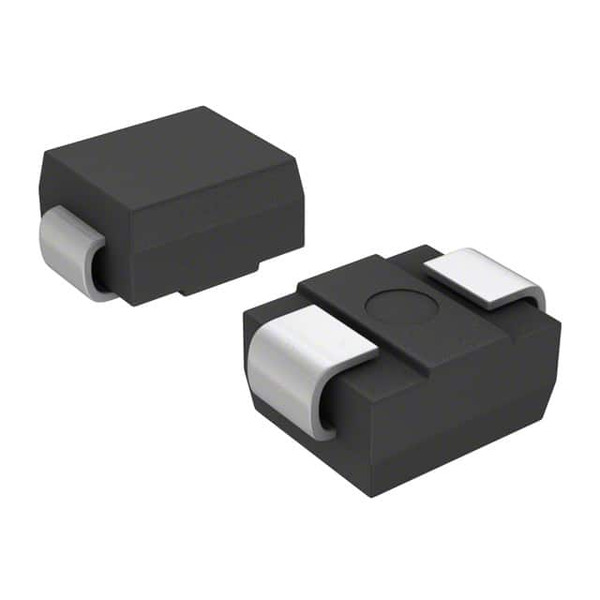

| Package / Case | SMB (DO-214AA) | Quantity Available | 7902 pcs |
| Voltage - Reverse Standoff (Typ) | 100V | Voltage - Clamping (Max) @ Ipp | 162V |
| Voltage - Breakdown (Min) | 111V | Type | Zener |
| Supplier Device Package | SMB (DO-214AA) | Series | SMBJ, TRANSIL™ |
| Power Line Protection | No | Power - Peak Pulse | 600W |
| Package / Case | DO-214AA, SMB | Package | Tape & Reel (TR) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Current - Peak Pulse (10/1000µs) | 3.8A | Capacitance @ Frequency | - |
| Bidirectional Channels | 1 | Base Product Number | SMBJ100 |
| Applications | General Purpose | ||
| Download | SMBJ100CA-TR PDF - DE.pdf | ||
Product Model
SMBJ100CA-TR
Introduction
This model is a Transient Voltage Suppressor (TVS) diode designed to protect circuits from voltage spikes.
Brand and Manufacturer
STMICROELECTRONICS
Features
Bidirectional Zener type TVS diode
Suitable for general purpose applications
Surface mount device
Bidirectional channels: 1
Product Performance
Reverse Standoff Voltage (Typical): 100V
Breakdown Voltage (Minimum): 111V
Clamping Voltage (Maximum at Ipp): 162V
Peak Pulse Current (10/1000µs): 3.8A
Peak Pulse Power: 600W
Technical Specifications
Series: SMBJ, TRANSIL™
Voltage Protection Type: Zener
Dimensions, Shape, and Packaging
Package / Case: DO-214AA, SMB
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)
Quality and Reliability
Highly reliable for voltage transient suppression with robust build quality.
Product Advantages
Efficient energy handling capability of 600W peak pulse power.
High peak pulse current capacity of 3.8A.
Product Competitiveness
Competitive in the TVS diode market due to its thermal and electrical performance parameters.
Compatibility
Compatible with circuits requiring up to 100V reverse standoff voltage protection.
Standard Certification and Compliance
Complies with industry-standard specifications and environmental compliance.
Lifespan and Sustainability
Operating Temperature range: -55°C to 150°C, ensuring performance in various temperature conditions.
Designed for durability and long term reliability.
Actual Application Fields
Suitable for a wide range of general-purpose applications in electronics that require transient voltage suppression.
