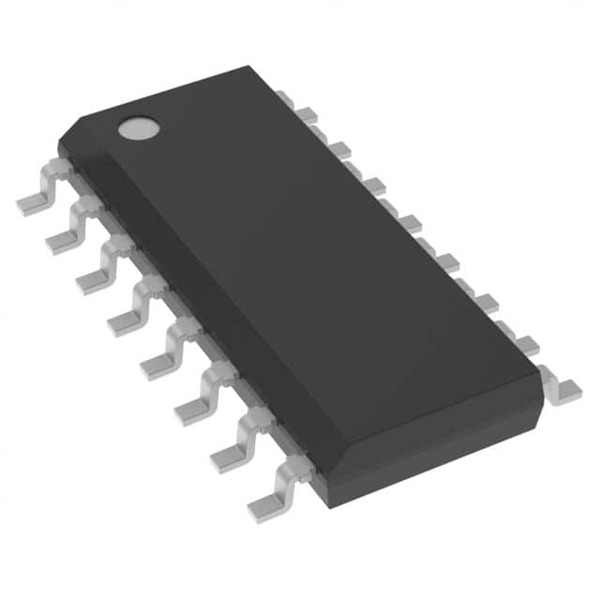

Manufacturer Part Number

M74HCT367RM13TR

Description

Non-inverting buffer IC with 2 elements, each element has 2 or 4 bits (hex configuration). It has 3-state outputs, operates at 4.5V to 5.5V supply, in a 16-pin SOIC package. Designed for signal buffering with high noise immunity and stable output.

Specifications

Logic type: Non-inverting buffer

Number of elements: 2

Bits per element: 2 and 4 (hex)

Output type: 3-state

Output current: 6mA (high), 6mA (low)

Supply voltage: 4.5V to 5.5V

Operating temperature: -55°C to 125°C

Package: 16-pin SOIC (Surface Mount)

RoHS status: Compliant (ROHS3)

Moisture Sensitivity Level: 1 (Unlimited)

REACH status: Unaffected

ECCN: EAR99

HTSUS code: 8542.39.0001

Device Structure

Integrated circuit with two buffer elements, each capable of handling 2 to 4 bits per element. Uses a non-inverting architecture with 3-state output drivers, housed in a surface-mount 16-pin SOIC package.

Performance Characteristics

High output drive current (6mA) for both high and low logic levels

Wide operating temperature range (-55°C to 125°C)

Low quiescent power consumption typical of 74HCT logic family

Fast switching speeds typical of HCT series devices

3-state outputs facilitate bus-oriented applications and signal multiplexing

Application Environments

Designed for digital logic level buffering and driving applications in industrial, consumer, and communication electronics

Suitable for environments requiring robust temperature tolerance and surface-mount assembly

Used in bus driving, signal isolation, and line driving applications where controlled termination and signal integrity are essential

Selection Guidelines

Choose M74HCT367RM13TR for applications needing low voltage (5V) buffers with 3-state outputs and moderate drive current

Verify temperature range meets your requirements, especially for industrial or harsh environments

Confirm package type (16-SOIC) compatibility with your PCB design and assembly process

For obsolete status, confirm availability or consider equivalent models before design finalization

Usage Considerations

Ensure supply voltage stays within 4.5V to 5.5V for reliable operation

Use proper PCB layout to reduce noise and interference on input/output lines

Handle device carefully to avoid ESD damage, despite robust packaging

Due to obsolete status, check stock availability before long-term projects

Consider 3-state output control lines in system-level design to avoid bus contention

Potential Equivalent/Replacement Models

Equivalent and substitute models are available including:

CD74HCT367MT

CD74HCT367M96

CD74HCT367M

74HCT367D

Model 653 (check manufacturer details)
