| TMUX1101DBVR | |
|---|---|
| Part Number | TMUX1101DBVR |
| Manufacturer | Texas Instruments |
| Description | IC SWITCH SPST X 1 4OHM SOT23-5 |
| Quantity Available | 20345 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.TMUX1101DBVR.pdf2.TMUX1101DBVR.pdf3.TMUX1101DBVR.pdf |
| TMUX1101DBVR Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of TMUX1101DBVR | |||
|---|---|---|---|
| Manufacturer Part Number | TMUX1101DBVR | Category | Integrated Circuits (ICs) |
| Manufacturer | Texas Instruments | Description | IC SWITCH SPST X 1 4OHM SOT23-5 |

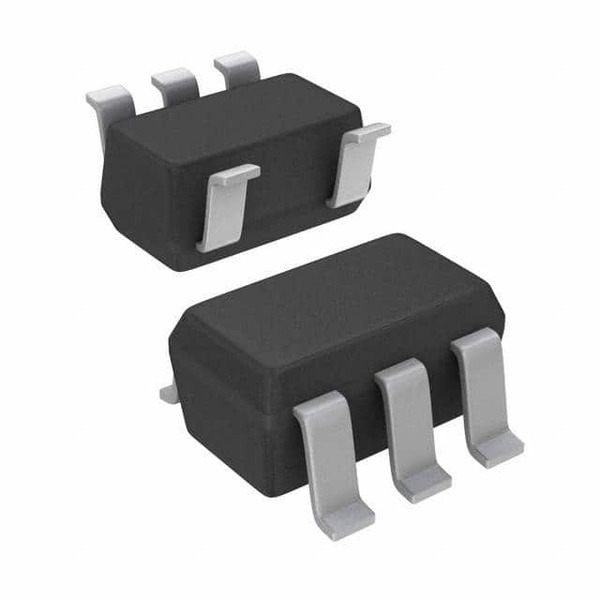

| Package / Case | SOT-23-5 | Quantity Available | 20345 pcs |
| Voltage - Supply, Single (V+) | 1.08V ~ 5.5V | Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | - | Switch Circuit | SPST |
| Supplier Device Package | SOT-23-5 | Series | - |
| Product Status | Active | Package / Case | SC-74A, SOT-753 |
| Package | Tape & Reel (TR) | Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 4Ohm | Number of Circuits | 1 |
| Multiplexer/Demultiplexer Circuit | 1:1 | Mounting Type | Surface Mount |
| Current - Leakage (IS(off)) (Max) | 80pA | Crosstalk | - |
| Charge Injection | -1.5pC | Channel-to-Channel Matching (ΔRon) | 850mOhm |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 10pF | Base Product Number | TMUX1101 |
| -3db Bandwidth | 300MHz |
Product Model
TMUX1101DBVR
Introduction
Precision analog switch used for signal multiplexing
Brand and Manufacturer
Texas Instruments
Features
Single channel SPST analog switch
Precision matching and low on-state resistance
Low leakage current and high off isolation
Wide supply voltage range
Product Performance
Robust signal handling capabilities
Low charge injection
Minimal propagation delay
Extended operating temperature range
Technical Specifications
Industry-standard SC-74A, SOT-753 package
300MHz -3db bandwidth
Up to 5.5V single supply operation
Dimensions, Shape, and Packaging
SC-74A, SOT-753 package
Surface mount package for PCB integration
Supplied on Tape & Reel for automated assembly
Quality and Reliability
Operational from -40°C to 125°C
High-quality manufacturing standards of Texas Instruments
Product Advantages
High bandwidth suitable for fast signal switching
Low on-state resistance enhances signal integrity
Product Competitiveness
Highly competitive in Interface Analog Switches market sector
Compatibility
Compatible with various single supply voltage ranges
Standard Certification and Compliance
Complies with standard industry certifications for electronic components
Lifespan and Sustainability
Designed for long-term reliability in diverse applications
Actual Application Fields
Applicable in telecommunications, instrumentation, data acquisition systems, and consumer electronics
