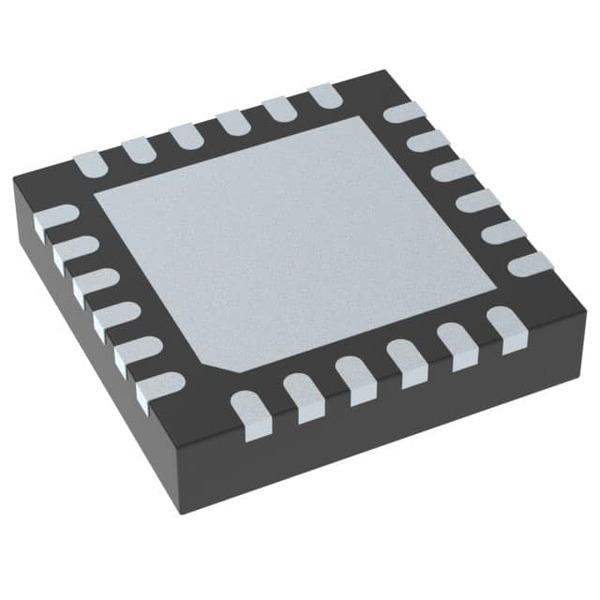

| TS3A27518ERTWR | |
|---|---|
| Part Number | TS3A27518ERTWR |
| Manufacturer | Texas Instruments |
| Description | IC SWITCH SPDT X 6 6.2OHM 24WQFN |
| Quantity Available | 45600 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.TS3A27518ERTWR.pdf2.TS3A27518ERTWR.pdf |
| Download | TS3A27518ERTWR Details PDF |
| TS3A27518ERTWR Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of TS3A27518ERTWR | |||
|---|---|---|---|
| Manufacturer Part Number | TS3A27518ERTWR | Category | Integrated Circuits (ICs) |
| Manufacturer | Texas Instruments | Description | IC SWITCH SPDT X 6 6.2OHM 24WQFN |
| Package / Case | 24-WQFN (4x4) | Quantity Available | 45600 pcs |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V | Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 59ns, 60.6ns | Switch Circuit | SPDT |
| Supplier Device Package | 24-WQFN (4x4) | Series | - |
| Product Status | Active | Package / Case | 24-WFQFN Exposed Pad |
| Package | Tape & Reel (TR) | Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 6.2Ohm | Number of Circuits | 6 |
| Multiplexer/Demultiplexer Circuit | 2:1 | Mounting Type | Surface Mount |
| Current - Leakage (IS(off)) (Max) | 1µA | Crosstalk | -62dB @ 10MHz |
| Charge Injection | 0.81pC | Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 8.5pF | Base Product Number | TS3A27518 |
| -3db Bandwidth | 240MHz | ||
| Download | TS3A27518ERTWR PDF - DE.pdfTS3A27518ERTWR PDF - FR.pdfTS3A27518ERTWR PDF - ES.pdfTS3A27518ERTWR PDF - IT.pdfTS3A27518ERTWR PDF - KR.pdf | ||
Product Model
TS3A27518ERTWR
Introduction
High-performance analog switch for interface applications
Brand and Manufacturer
Texas Instruments
Features
Six-channel 2:1 multiplexer/demultiplexer
Single-pole double-throw (SPDT) configuration
Low on-state resistance of 6.2 Ohm
Tight channel-to-channel matching (ΔRon) of 300mOhm
Product Performance
Supports supply voltages from 1.65V to 3.6V
Fast switch times of 59ns on and 60.6ns off
High -3dB bandwidth at 240MHz
Charge Injection of 0.81pC
Low channel capacitance of 13pF (CS(off)) and 8.5pF (CD(off))
Ultra-low leakage current of 1µA maximum (IS(off))
Excellent crosstalk performance of -62dB at 10MHz
Technical Specifications
Active product status
Designed for 6 circuits
No dual supply voltage required
Dimensions, Shape, and Packaging
Supplied in Tape & Reel (TR) format for automated assembly
Surface Mount, 24-WFQFN Exposed Pad package
Supplier Device Package is 24-WQFN (4x4)
Quality and Reliability
Handles operating temperatures from -40°C to 85°C (TA)
Robust construction for consistent performance
Product Advantages
Optimized for low-voltage operations
Ideal for multiplexing/demultiplexing applications
Low power consumption
Effective signal routing with high precision
Product Competitiveness
Competes well in the market with its combination of high speed and precision
Compatibility
Suitable for various digital and analog signal switching applications
Compatible with multiple logic types due to wide voltage range
Standard Certification and Compliance
Manufactured by a reputable company ensuring high standards and compliance
Lifespan and Sustainability
Designed for longevity and stable performance over time
Conforms with industry standards for environmental sustainability
Actual Application Fields
Used in consumer electronics, telecommunications, data acquisition systems
Ideal for signal routing in complex systems within automotive, medical and industrial applications
Email us: Info@Ariat-Tech.com or RFQ TS3A27518ERTWR Online.
