| TPS70102PWPR | |
|---|---|
| Part Number | TPS70102PWPR |
| Manufacturer | Texas Instruments |
| Description | IC REG LINEAR POS ADJ 20HTSSOP |
| Quantity Available | 14932 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.TPS70102PWPR.pdf2.TPS70102PWPR.pdf |
| Download | TPS70102PWPR Details PDF |
| TPS70102PWPR Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of TPS70102PWPR | |||
|---|---|---|---|
| Manufacturer Part Number | TPS70102PWPR | Category | Integrated Circuits (ICs) |
| Manufacturer | Texas Instruments | Description | IC REG LINEAR POS ADJ 20HTSSOP |
| Package / Case | 20-HTSSOP | Quantity Available | 14932 pcs |
| Voltage Dropout (Max) | 0.28V @ 500mA | Voltage - Output (Min/Fixed) | 1.22V |
| Voltage - Output (Max) | 5.5V | Voltage - Input (Max) | 6V |
| Supplier Device Package | 20-HTSSOP | Series | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Package | Tape & Reel (TR) | PSRR | 60dB (1kHz) |
| Output Type | Adjustable | Output Configuration | Positive |
| Operating Temperature | -40°C ~ 125°C | Number of Regulators | 2 |
| Mounting Type | Surface Mount | Current - Supply (Max) | 230 µA |
| Current - Quiescent (Iq) | 190 µA | Current - Output | 500mA, 250mA |
| Control Features | Enable, Power Good, Reset, Sequencing | Base Product Number | TPS70102 |
| Download | TPS70102PWPR PDF - DE.pdfTPS70102PWPR PDF - FR.pdfTPS70102PWPR PDF - ES.pdfTPS70102PWPR PDF - IT.pdfTPS70102PWPR PDF - KR.pdf | ||
Product Model
TPS70102PWPR
Introduction
Dual-Output LDO Voltage Regulator
Brand and Manufacturer
Texas Instruments
Features
Two Independent LDO Regulators
Adjustable Output Voltage
Enable, Power Good, Reset, Sequencing Control Features
Over Current, Over Temperature, Reverse Polarity Protection
Under Voltage Lockout (UVLO) Protection
Product Performance
Positive Output Configuration
Low Dropout: 0.28V @ 500mA
High PSRR: 60dB @ 1kHz
Technical Specifications
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 1.22V
Voltage - Output (Max): 5.5V
Current - Output: 500mA, 250mA
Current - Quiescent (Iq): 190 µA
Current - Supply (Max): 230 µA
Dimensions, Shape, and Packaging
Surface Mount Mounting Type

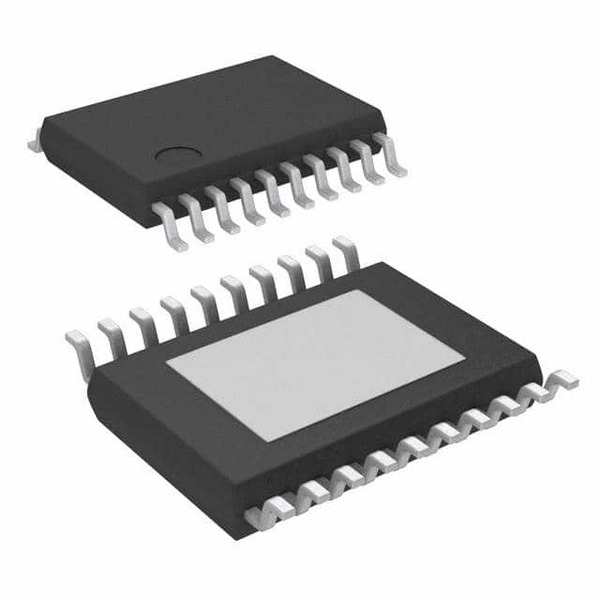

20-PowerTSSOP Package
Dimensions: 0.173", 4.40mm Width
Packaged in Tape & Reel (TR)
Quality and Reliability
Operating Temperature: -40°C ~ 125°C
Product Advantages
High-Efficiency with Low Quiescent Current
Multi-Function Integration for Space Saving
Product Competitiveness
Ideal for Power-Sensitive Applications
Compatibility
Compatible with a Wide Range of Input and Output Voltages
Standard Certification and Compliance
Industry Standard Compliance
Lifespan and Sustainability
High Reliability for Extended Lifecycle
Actual Application Fields
Suitable for Battery-Powered Devices, Microcontrollers, and Sensitive Electronic Applications
Email us: Info@Ariat-Tech.com or RFQ TPS70102PWPR Online.
