Product Model

TPS630702RNMT

Introduction

A versatile buck-boost voltage regulator designed for applications requiring a wide input voltage range and an adjustable output voltage.

Brand and manufacturer

Texas Instruments

Features

Supports buck and boost mode

Adjustable output voltage

High efficiency and low quiescent current

Integrated synchronous rectifier

Product performance

Wide input voltage range from 2V to 16V

Adjustable output voltage from 2.5V to 9V

Output current up to 2A

High switching frequency of 2.4MHz for reduced component size

Technical specifications

Voltage Input (Min): 2V

Voltage Input (Max): 16V

Voltage Output (Min/Fixed): 2.5V

Voltage Output (Max): 9V

Current Output: 2A

Frequency Switching: 2.4MHz

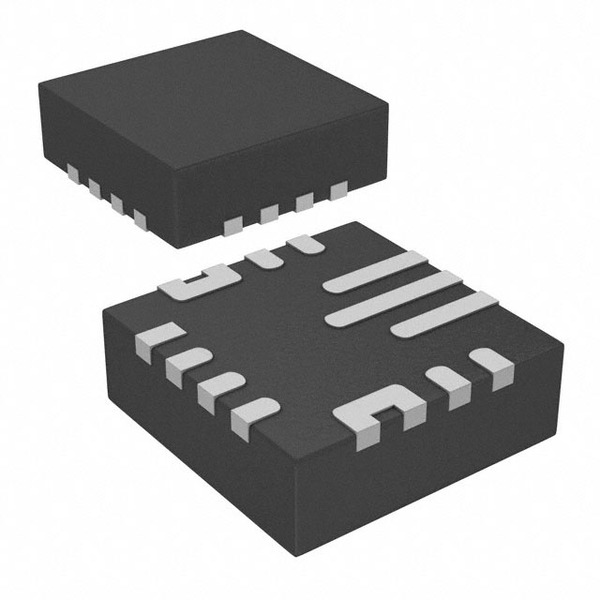

Dimensions, shape, and packaging

Surface mount

15-PowerVFQFN package

Dimensions: 3x2.5mm

Packaged in Tape & Reel (TR) for automated assembly

Quality and reliability

Operates reliably across a wide temperature range from -40°C to 125°C

Robust against thermal and mechanical stress

Product advantages

Efficient power conversion in both step-up and step-down scenarios

Compact form factor suitable for space-constrained applications

Product competitiveness

High efficiency with minimal external components compared to competitors

Fast switching capability allows for smaller passive components

Compatibility

Compatible with a variety of digital and analog devices due to its adjustable output

Standard certification and compliance

Meets industry standards for electronic components (specific standards not listed)

Lifespan and sustainability

Designed for long-term reliability under varying environmental conditions

Actual application fields

Mobile devices

Portable electronics

IoT devices

Energy storage systems
