Manufacturer Part Number

TMS320DM6467CCUTA

Description

The TMS320DM6467CCUTA from Texas Instruments is an advanced Digital Media System-on-Chip (DMSoC) mainly used for video and imaging applications. It integrates a high-speed DSP running at 594 MHz and an ARM926EJ-S microprocessor at 297 MHz, delivering strong computing performance for multimedia encoding, decoding, and video processing. It is housed in a compact 529-ball FCBGA package and supports multiple interfaces for flexible system integration.

Specifications

Manufacturer: Texas Instruments

Series: TMS320DM646x, DaVinci™

Packaging: Tray, Surface Mount

Core: DSP (594MHz) + ARM926EJ-S (297MHz)

On-Chip RAM: 248kB

ROM: 8kB

Voltage, Core: 1.20V

Voltage, I/O: 1.8V, 3.3V

Operating Temperature: -40°C to 105°C

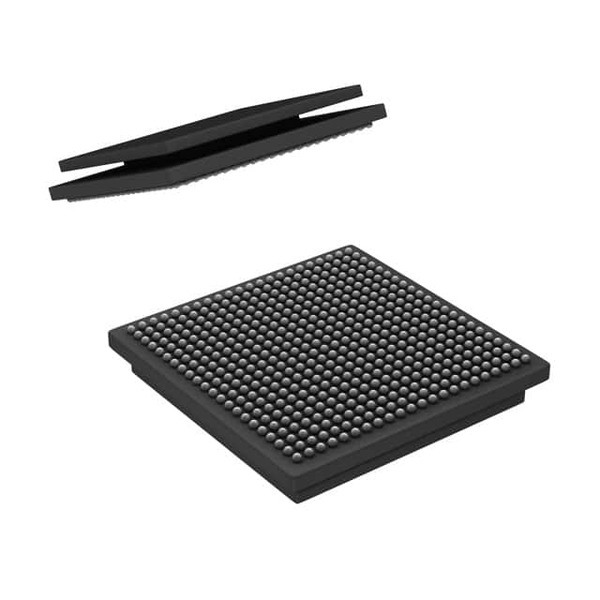

Package: 529-FCBGA (19x19 mm)

RoHS: ROHS3 Compliant

REACH: Unaffected

Moisture Sensitivity Level: Level 4 (72 hours)

Device Structure

The device combines a high-speed digital signal processor (DSP), an ARM processor core, internal ROM and RAM, and a variety of integrated peripheral interfaces (such as Ethernet, USB, SPI, UART, I2C, PCI, EBI/EMI, HPI, McASP). The package is low-profile, ball-grid array (FCBGA), optimized for high-speed performance and dense board designs.

Performance Characteristics

High DSP clock speed for real-time audio and video processing

ARM processor for control operations and operating system management

Multiple interface support for high integration: I/O flexibility (USB, Ethernet, PCI, serial interfaces)

On-chip memory reduces latency for media applications

Industrial-grade temperature support for robust operation

ROM for secure boot and essential firmware

Complies with RoHS3 and REACH regulations for environmental safety

Application Environments

Video surveillance systems

IP cameras

Digital Video Recorders (DVR) and Network Video Recorders (NVR)

Video conferencing equipment

Medical imaging devices

Industrial imaging and monitoring systems

Digital multimedia devices and embedded video processing equipment

Selection Guidelines

Ensure system requirements fit the device’s clock speeds and memory sizes

Choose for embedded multimedia and video applications, not for new designs as status is obsolete

Verify that your project can utilize ARM926EJ-S and DSP architectures

Consider the industrial temperature range

Confirm surface-mount capability and MSL4 requirements for your manufacturing process

Check the available digital interfaces for peripheral compatibility

Usage Considerations

Not recommended for new designs; use for maintenance or replacement in existing projects

MSL4 requires moisture control during assembly; exposure time before reflow is limited to 72 hours

Handle the device with ESD measures, especially during mounting and assembly

Software development must support both DSP and ARM architectures

Detailed reference designs and technical documentation may be limited

Double check device compatibility with other system components, especially for high-speed designs

Potential Equivalent/Replacement Models

This product is marked as "Not For New Designs," meaning it's considered obsolete for new projects. Texas Instruments and other manufacturers may offer newer alternatives. Key possible replacements:

Texas Instruments TMS320DM6467ZUTD (different package or temperature range)

Texas Instruments TMS320DM8168 series (higher performance, newer platform)

Texas Instruments Jacinto™ or Sitara™ processor families for similar or improved function

For ARM+DSP applications: Texas Instruments AM57x series

If none of the above fits your application or more information is needed, please contact the Ariat-Tech sales team directly for up-to-date equivalents and future-proof alternatives.
