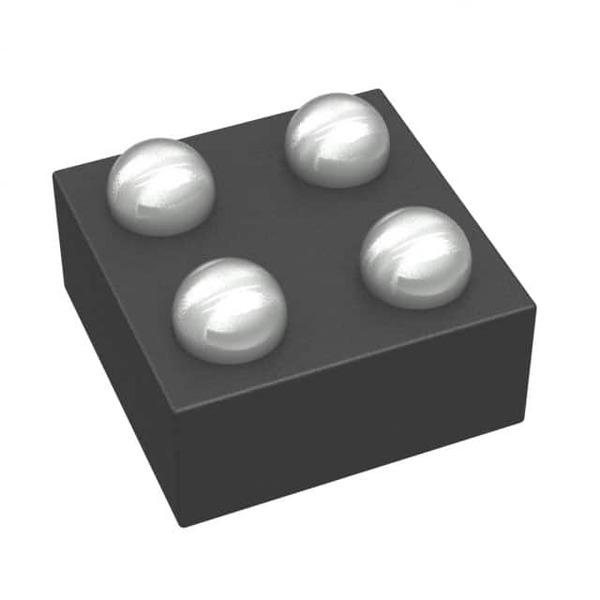

| TLV70536YFPR | |
|---|---|
| Part Number | TLV70536YFPR |
| Manufacturer | Texas Instruments |
| Description | IC REG LINEAR 3.6V 200MA 4DSBGA |
| Quantity Available | 7228 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.TLV70536YFPR.pdf2.TLV70536YFPR.pdf3.TLV70536YFPR.pdf4.TLV70536YFPR.pdf5.TLV70536YFPR.pdf |
| Download | TLV70536YFPR Details PDF |
| TLV70536YFPR Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of TLV70536YFPR | |||
|---|---|---|---|
| Manufacturer Part Number | TLV70536YFPR | Category | Integrated Circuits (ICs) |
| Manufacturer | Texas Instruments | Description | IC REG LINEAR 3.6V 200MA 4DSBGA |
| Package / Case | 4-DSBGA | Quantity Available | 7228 pcs |
| Voltage Dropout (Max) | 0.25V @ 200mA | Voltage - Output (Min/Fixed) | 3.6V |
| Voltage - Output (Max) | - | Voltage - Input (Max) | 5.5V |
| Supplier Device Package | 4-DSBGA | Series | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Package / Case | 4-XFBGA, DSBGA |
| Package | Tape & Reel (TR) | PSRR | 80dB ~ 55dB (10kHz ~ 1MHz) |
| Output Type | Fixed | Output Configuration | Positive |
| Operating Temperature | -40°C ~ 125°C (TJ) | Number of Regulators | 1 |
| Mounting Type | Surface Mount | Current - Supply (Max) | 315 µA |
| Current - Quiescent (Iq) | 55 µA | Current - Output | 200mA |
| Control Features | Enable | Base Product Number | TLV705 |
| Download | TLV70536YFPR PDF - DE.pdfTLV70536YFPR PDF - FR.pdfTLV70536YFPR PDF - ES.pdfTLV70536YFPR PDF - IT.pdfTLV70536YFPR PDF - KR.pdf | ||
Manufacturer Part Number
TLV70536YFPR
Description
Highly integrated, low-dropout linear regulator with fixed 3.6V output voltage, designed for portable and space-constrained applications. Provides regulated 3.6V output from input voltage up to 5.5V.
Product Packaging
Tape & Reel (TR) packaging
4-XFBGA, DSBGA package
Surface mount device
Small form factor for space-constrained applications
Why Choose This Product?
Highly integrated and compact design for portable devices
Efficient power delivery with low quiescent current
Robust protection features including overcurrent, overtemperature, and reverse polarity
Key Features
Fixed 3.6V output voltage
200mA output current capacity
55µA quiescent current
80dB to 55dB PSRR (10kHz to 1MHz)
Enable control feature
Overtemperature, overcurrent, and reverse polarity protection
Product Compatibility
Suitable for a wide range of portable and space-constrained applications that require a regulated 3.6V power supply.
Key Advantages
Efficient power delivery with low quiescent current
Compact size and surface mount design for space-constrained applications
Robust protection features for reliable operation
Product Lifecycle
The TLV70536YFPR is an active product, with no indication of discontinuation.
There may be equivalent or alternative models available from Texas Instruments. Please contact our sales team for more information.
Key Application Areas
Portable electronics
Wearable devices
IoT and sensor applications
Battery-powered devices
Take Action Now
Get a quote for the TLV70536YFPR on our website. Unlock the power of this highly integrated, low-dropout linear regulator for your next project.
Email us: Info@Ariat-Tech.com or RFQ TLV70536YFPR Online.
