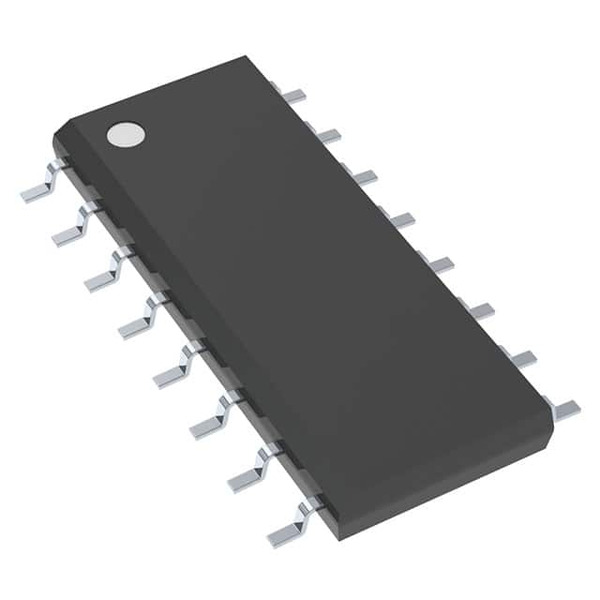

| TLV5614CDR | |
|---|---|
| Part Number | TLV5614CDR |
| Manufacturer | Texas Instruments |
| Description | IC DAC 12BIT V-OUT 16SOIC |
| Quantity Available | 11485 pcs new original in stock. Request Stock & Quotation |
| Datasheets | TLV5614CDR.pdf |
| Download | TLV5614CDR Details PDF |
| TLV5614CDR Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of TLV5614CDR | |||
|---|---|---|---|
| Manufacturer Part Number | TLV5614CDR | Category | Integrated Circuits (ICs) |
| Manufacturer | Texas Instruments | Description | IC DAC 12BIT V-OUT 16SOIC |
| Package / Case | 16-SOIC | Quantity Available | 11485 pcs |
| Voltage - Supply, Digital | 2.7V ~ 3.3V, 5V | Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Supplier Device Package | 16-SOIC | Settling Time | 20µs |
| Series | - | Reference Type | External |
| Product Status | Obsolete | Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Package | Tape & Reel (TR) | Output Type | Voltage - Buffered |
| Operating Temperature | 0°C ~ 70°C | Number of D/A Converters | 4 |
| Number of Bits | 12 | Mounting Type | Surface Mount |
| INL/DNL (LSB) | ±1.5, ±0.5 | Differential Output | No |
| Data Interface | SPI | Base Product Number | TLV561 |
| Architecture | String DAC | ||
| Download | TLV5614CDR PDF - DE.pdfTLV5614CDR PDF - FR.pdfTLV5614CDR PDF - ES.pdfTLV5614CDR PDF - IT.pdfTLV5614CDR PDF - KR.pdf | ||
Product Model
TLV5614CDR
Introduction
Texas Instruments 12-bit Digital to Analog Converter
Brand and Manufacturer
Texas Instruments
Features
12-bit resolution
Four-channel DAC
String DAC architecture
Buffered voltage output
Product Performance
20µs settling time
±1.5 INL, ±0.5 DNL
Technical Specifications
SPI Data Interface
12-bit resolution D/A converters: 4
External reference type
Voltage Supply, Analog: 2.7V to 3.3V, 5V
Voltage Supply, Digital: 2.7V to 3.3V, 5V
Dimensions, Shape, and Packaging
16-SOIC Package
90mm width
Surface Mount
No specific packaging information due to Obsolete status
Quality and Reliability
Operating temperature range from 0°C to 70°C
Product Advantages
Multi-channel DAC integration
Compact 16-SOIC package
Product Competitiveness
Obsolete status indicates limited competitiveness
Compatibility
SPI interface for broad microcontroller compatibility
Standard Certification and Compliance
Meets Texas Instruments' production standards
Lifespan and Sustainability
Obsolete product status suggests limited lifespan and parts availability
Actual Application Fields
Previously used in various digital to analog conversion tasks before becoming obsolete
Email us: Info@Ariat-Tech.com or RFQ TLV5614CDR Online.
