| TLV0838CPWR | |
|---|---|
| Part Number | TLV0838CPWR |
| Manufacturer | Texas Instruments |
| Description | IC ADC 8BIT SAR 20TSSOP |
| Quantity Available | 22978 pcs new original in stock. Request Stock & Quotation |
| Datasheets | TLV0838CPWR.pdf |
| Download | TLV0838CPWR Details PDF |
| TLV0838CPWR Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of TLV0838CPWR | |||
|---|---|---|---|
| Manufacturer Part Number | TLV0838CPWR | Category | Integrated Circuits (ICs) |
| Manufacturer | Texas Instruments | Description | IC ADC 8BIT SAR 20TSSOP |
| Package / Case | 20-TSSOP | Quantity Available | 22978 pcs |
| Voltage - Supply, Digital | 2.7V ~ 3.6V | Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Supplier Device Package | 20-TSSOP | Series | - |
| Sampling Rate (Per Second) | 37.9k | Reference Type | External |
| Ratio - S/H:ADC | - | Product Status | Active |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | Package | Tape & Reel (TR) |
| Operating Temperature | 0°C ~ 70°C | Number of Inputs | 4, 7, 8 |
| Number of Bits | 8 | Number of A/D Converters | 1 |
| Mounting Type | Surface Mount | Input Type | Differential, Pseudo-Differential, Single Ended |
| Features | - | Data Interface | SPI |
| Configuration | MUX-ADC | Base Product Number | TLV0838 |
| Architecture | SAR | ||
| Download | TLV0838CPWR PDF - DE.pdfTLV0838CPWR PDF - FR.pdfTLV0838CPWR PDF - ES.pdfTLV0838CPWR PDF - KR.pdfTLV0838CPWR PDF - IT.pdf | ||
Product Model
TLV0838CPWR
Introduction
8-bit analog to digital converter with multiple input configurations
Brand and Manufacturer
Texas Instruments
Features
8-bit resolution
Configurable inputs - 4, 7, 8 channel inputs
Input type support for differential, pseudo-differential, single-ended
SPI data interface
Product Performance
Sampling rate of 37.9k samples per second
Single analog-to-digital converter unit
Successive Approximation Register (SAR) architecture
Technical Specifications
External reference type
Analog supply voltage range 2.7V to 3.6V
Digital supply voltage range 2.7V to 3.6V
Dimensions, Shape, and Packaging

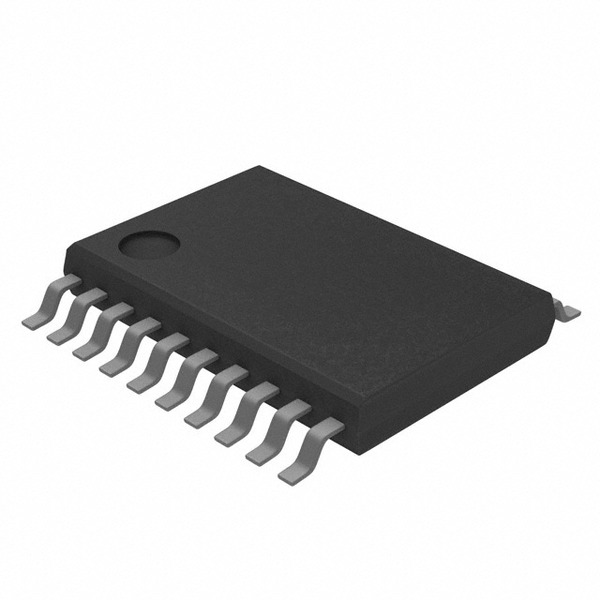

20-TSSOP package
Width 4.40mm
Packaged in tape and reel for automated assembly
Quality and Reliability
Operating temperature range from 0°C to 70°C
Product Advantages
Flexible input configuration suitable for various applications
Precise and reliable SAR architecture
Product Competitiveness
Competitive sampling rate for 8-bit resolution
Compatibility
Compatible with SPI interface for data interaction
Standard Certification and Compliance
Compliance with industry standard specifications for TSSOP-packaged ADCs
Lifespan and Sustainability
Last Time Buy status indicating end of production life cycle
Actual Application Fields
Suitable for data acquisition systems in industrial, automation, and measurement applications
Email us: Info@Ariat-Tech.com or RFQ TLV0838CPWR Online.
