Manufacturer Part Number

TAS5036AIPFCG4

Description

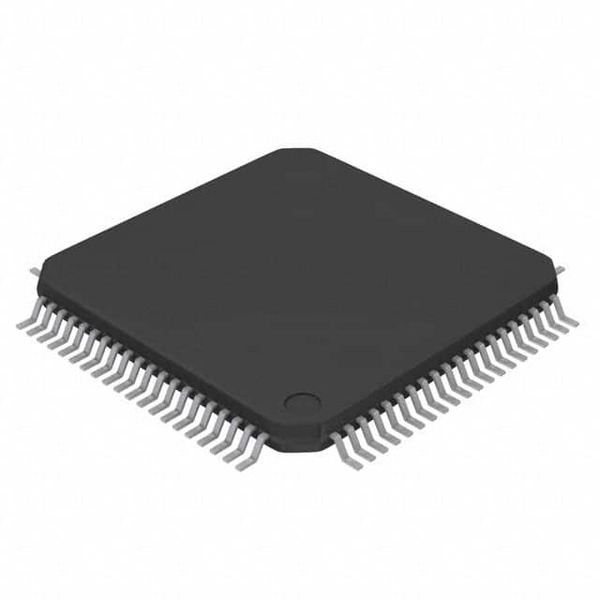

Audio modulator integrated circuit (IC) from Texas Instruments. Designed for digital audio applications. Provides six channels for modulation tasks. Comes in an 80-pin TQFP (Thin Quad Flat Package), measuring 12 mm x 12 mm. Part is RoHS3 compliant and unaffected by REACH regulations. Part is currently obsolete and only available while stocks last.

Specifications

Supports 6 independent channels. Operates with a supply voltage from 3V to 3.6V. Compatible with I2C and I2S digital audio interfaces. Handles audio sampling rates from 32kHz to 192kHz. Has surface mount mounting for PCB assembly. Package/case is 80-TQFP. Can function in temperature environments from -40°C to +85°C. Moisture Sensitivity Level is 4 (device must be mounted in 72 hours to avoid moisture issues).

Device Structure

Consists of a specialized digital audio modulator circuit designed for integration into digital audio systems. Uses an 80-pin TQFP package for compact layout and easier SMT assembly. Provides six separate input/output audio modulation paths for multi-channel systems.

Performance Characteristics

Supports high audio resolution and multi-channel digital audio. Maintains signal integrity across wide temperature and voltage ranges. Compatible with standard audio data formats and digital interfaces like I2C and I2S. Designed to deliver low latency, high performance digital audio interfacing and modulation.

Application Environments

Fits various high-end digital audio systems such as digital amplifiers, professional audio equipment, AV receivers, and advanced home theater products. Suitable for environments requiring robust digital audio signal processing and multi-channel support.

Selection Guidelines

Choose this model if you need a six-channel audio modulator with digital audio interface support via I2C/I2S, operating within 3V-3.6V, surface mount design, and you have requirements for 32kHz–192kHz sampling rates. Make sure that an 80-TQFP package fits your PCB design and assembly process.

Usage Considerations

As an obsolete part, ensure you have secured all inventory needed for future production. Handle according to MSL 4 requirements—must be assembled within 72 hours once removed from moisture barrier bag. Do not use in designs needing long-term support or large-scale production unless you have locked in your inventory supply. Follow anti-static handling and soldering precautions for fine-pitch TQFP packages.

Potential Equivalent/Replacement Models

Since TAS5036AIPFCG4 is obsolete, direct replacements are limited. Potential alternatives may include other digital audio modulators and DSPs from Texas Instruments or other manufacturers. Check for models in the TAS50xx series, or similar parts supporting I2C/I2S interfaces and multi-channel digital audio modulation. If no suitable alternative is readily available, please contact our website Ariat-Tech sales team for further guidance and to discuss available inventory or sourcing options.
