| SN74LVC2G66YEAR | |
|---|---|
| Part Number | SN74LVC2G66YEAR |
| Manufacturer | Texas Instruments |
| Description | IC SWITCH SPST-NOX2 10OHM 8XFBGA |
| Quantity Available | 42300 pcs new original in stock. Request Stock & Quotation |
| Datasheets | SN74LVC2G66YEAR.pdf |
| Download | SN74LVC2G66YEAR Details PDF |
| SN74LVC2G66YEAR Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of SN74LVC2G66YEAR | |||
|---|---|---|---|
| Manufacturer Part Number | SN74LVC2G66YEAR | Category | Integrated Circuits (ICs) |
| Manufacturer | Texas Instruments | Description | IC SWITCH SPST-NOX2 10OHM 8XFBGA |

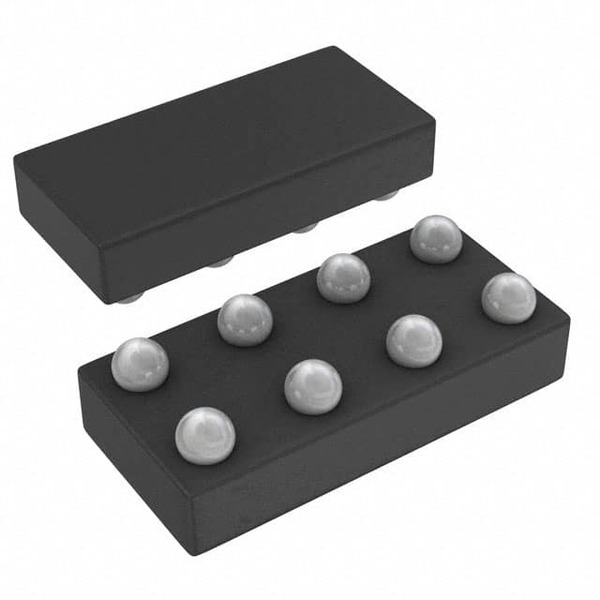

| Package / Case | 8-XFBGA, DSBGA | Quantity Available | 42300 pcs |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V | Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 3.9ns, 6.3ns | Switch Circuit | SPST - NO |
| Supplier Device Package | 8-XFBGA, DSBGA | Series | - |
| Product Status | Obsolete | Package / Case | 8-XFBGA, DSBGA |
| Package | Tape & Reel (TR) | Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 10Ohm | Number of Circuits | 2 |
| Multiplexer/Demultiplexer Circuit | 1:1 | Mounting Type | Surface Mount |
| Current - Leakage (IS(off)) (Max) | 100nA | Crosstalk | -58dB @ 1MHz |
| Charge Injection | - | Channel-to-Channel Matching (ΔRon) | 2Ohm (Max) |
| Channel Capacitance (CS(off), CD(off)) | 6pF | Base Product Number | SN74LVC2G |
| -3db Bandwidth | 300MHz | ||
| Download | SN74LVC2G66YEAR PDF - DE.pdf | ||
Product Model
SN74LVC2G66YEAR
Introduction
Dual SPST Analog Switch
Brand and Manufacturer
Texas Instruments
Features
Dual SPST - NO Configuration
Integrated ESD Protection
Product Performance
Low On-State Resistance max 10 Ohm
Channel-to-Channel Matching max 2 Ohm
Fast Switching Times max 3.9ns Ton, 6.3ns Toff
Technical Specifications
Supply Voltage 1.65V to 5.5V
3dB Bandwidth 300MHz
Channel Capacitance 6pF off-state
Leakage Current max 100nA off-state
Crosstalk -58dB at 1MHz
Dimensions, Shape, and Packaging
Surface Mount
8-XFBGA, DSBGA Package
Quality and Reliability
Operating Temperature Range -40°C to 85°C
Product Advantages
Low On-State Resistance
High Bandwidth
Product Competitiveness
Optimized for High-Speed Signal Switching
Compatibility
Compatible with 1.65V to 5.5V Logic Levels
Standard Certification and Compliance
Industries Standards for ESD Protection
Lifespan and Sustainability
Robust Performance in Operational Temperature Range
Actual Application Fields
Communication Systems
Data Acquisition
Audio/Video Signal Routing
Test and Measurement Equipment
Email us: Info@Ariat-Tech.com or RFQ SN74LVC2G66YEAR Online.
