Manufacturer Part Number

SN74LVC1G57YEAR

Description

Configurable logic IC with one 3-input multi-function gate. Comes in a small 6-ball Dual Small Ball Grid Array (6-DSBGA) package. Allows flexible logic function selection within a single gate, suitable for compact PCB designs.

Specifications

One configurable logic circuit

Three inputs

Output type: single-ended

Supply voltage: 1.65V to 5.5V

Output current: 32mA (high), 32mA (low)

Operating temperature range: -40°C to 125°C

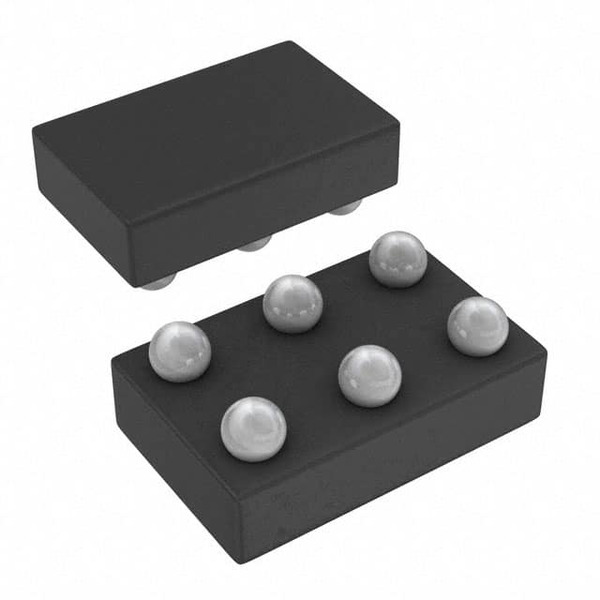

Package type: 6-DSBGA (6-ball Dual Small Ball Grid Array)

Logic family: 74LVC series

Schmitt trigger input: No

Device Structure

Single configurable multi-function logic gate with three inputs and a single output. Surface mount device designed in a 6-ball DSBGA package, providing a compact footprint and reliable solder connections on PCBs.

Performance Characteristics

Supports wide voltage range (1.65V to 5.5V)

Outputs can source or sink 32mA each

High-speed CMOS 74LVC logic with low power consumption

Stable operation in harsh temperatures (-40°C to 125°C)

RoHS3 compliant and moisture sensitive level 1 (no special handling needed)

Application Environments

Mobile devices and portable electronics requiring low power and flexible logic

Compact circuit designs where PCB space is limited

Industrial and automotive electronics operating under wide temperature ranges

General digital logic applications needing configurable logic gates

Selection Guidelines

Choose this device when a small footprint configurable logic gate is needed with 3 inputs and single-ended output. Ideal if your design requires operation across a broad voltage and temperature range. Consider the 6-ball BGA package if board space and reliable surface mount are priorities. The 74LVC logic family is suitable for low voltage high-speed logic circuits.

Usage Considerations

Requires precise reflow soldering process due to BGA package

No Schmitt trigger inputs; slow or noisy input signals may need conditioning

Verify voltage and current requirements match system needs to avoid device stress

As this part is obsolete, ensure adequate stock is procured or evaluate alternative parts early

Potential Equivalent/Replacement Models

No direct drop-in replacements are listed publicly. For equivalent or alternative models, customers should consult the Ariat-Tech sales team for updated or compatible options. Other devices in the 74LVC family with similar logic functions and standard packages (e.g., SOIC, TSSOP) may be considered depending on design flexibility.

For more detailed product support or alternatives, contact Ariat-Tech sales.
