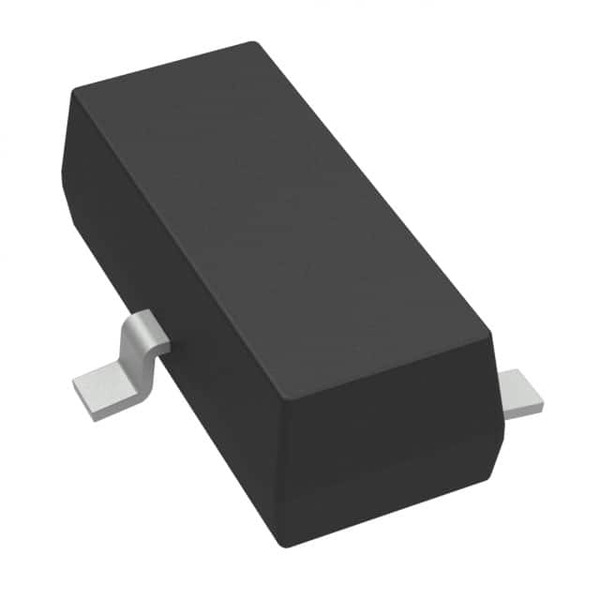

| LM4040C25QDBZTG4 | |
|---|---|
| Part Number | LM4040C25QDBZTG4 |
| Manufacturer | Texas Instruments |
| Description | IC VREF SHUNT 0.5% SOT23-3 |
| Quantity Available | 8255 pcs new original in stock. Request Stock & Quotation |
| Datasheets | LM4040C25QDBZTG4.pdf |
| Download | LM4040C25QDBZTG4 Details PDF |
| LM4040C25QDBZTG4 Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of LM4040C25QDBZTG4 | |||
|---|---|---|---|
| Manufacturer Part Number | LM4040C25QDBZTG4 | Category | Integrated Circuits (ICs) |
| Manufacturer | Texas Instruments | Description | IC VREF SHUNT 0.5% SOT23-3 |
| Package / Case | SOT-23-3 | Quantity Available | 8255 pcs |
| Voltage - Output (Min/Fixed) | 2.5V | Voltage - Input | - |
| Tolerance | ±0.5% | Temperature Coefficient | 100ppm/°C |
| Supplier Device Package | SOT-23-3 | Series | - |
| Reference Type | Shunt | Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Package | Tape & Reel (TR) | Output Type | Fixed |
| Operating Temperature | -40°C ~ 125°C (TA) | Noise - 10Hz to 10kHz | 35µVrms |
| Noise - 0.1Hz to 10Hz | - | Mounting Type | Surface Mount |
| Current - Supply | - | Current - Output | 15 mA |
| Current - Cathode | 80 µA | Base Product Number | LM4040 |
| Download | LM4040C25QDBZTG4 PDF - DE.pdf | ||
Product Model
LM4040C25QDBZTG4
Introduction
High-Precision Voltage Reference
Brand and Manufacturer
Texas Instruments
Features
Shunt Reference Type
Fixed Output Voltage
Precision Voltage Reference with Tolerance ±0.5%
Product Performance
Output Voltage 2.5V
Output Current 15 mA
Temperature Coefficient 100ppm/°C
Low Noise 35µVrms (10Hz to 10kHz)
Technical Specifications
Reference Voltage Fixed at 2.5V
Tolerance ±0.5% for High Accuracy
Temperature Coefficient 100ppm/°C
Dimensions, Shape, and Packaging
TO-236-3, SC-59, SOT-23-3 Package
Surface Mount Type
Quality and Reliability
Cathode Current 80 µA
Operating Temperature Range -40°C to 125°C
Product Advantages
High Precision Reference Ideal for Precision Applications
Product Competitiveness
Discontinued at Digi-Key Indicating Limited Availability
Compatibility
Suitable for Various Power Management Applications
Standard Certification and Compliance
Adheres to Industry Standard Specifications
Lifespan and Sustainability
Designed for High-Performance Longevity in Diverse Environments
Actual Application Fields
Used in Power Supplies, Battery Management, and Precision Instrumentation
Email us: Info@Ariat-Tech.com or RFQ LM4040C25QDBZTG4 Online.
