Manufacturer Part Number

F280049CRSHSR

Description

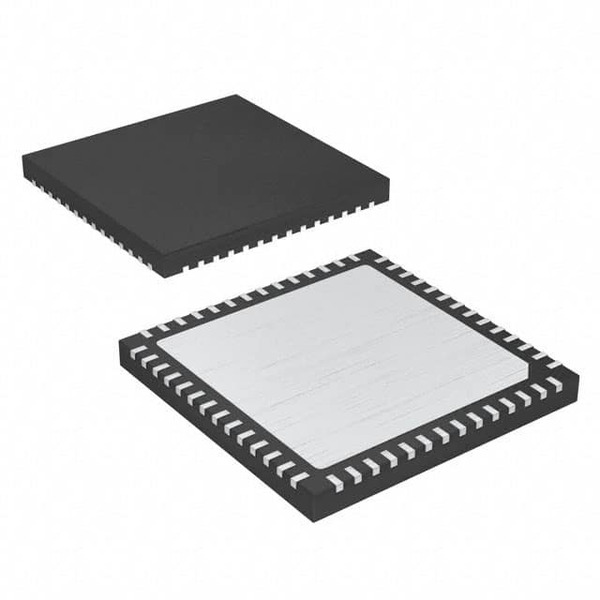

This is a Texas Instruments C2000™ C28x Piccolo™ series microcontroller. It is a 32-bit, single-core MCU with 256KB flash memory. It operates at 100MHz and comes in a 56-VQFN (7x7mm) package. The device has a range of advanced analog and digital peripherals, flexible communication interfaces, and is suitable for demanding embedded control applications.

Specifications

Core: C28x 32-bit single-core, 100MHz

Flash Memory: 256KB (128K x 16)

RAM: 50K x 16

Supply Voltage: 1.14V to 1.32V

I/O Pins: 25

Internal Oscillator

Data Converters: 12-channel 12-bit ADC, 2-channel 12-bit DAC

Connectivity: CANbus, I2C, LINbus, SCI, SPI, UART/USART

Peripherals: PWM, Brown-out Detector/Reset, Power-On Reset, Watchdog Timer

Operating Temp: -40°C to +125°C junction

Package: 56-VQFN (7x7) Exposed Pad

RoHS3 & REACH Compliant

MSL: Level 3 (168 hours)

Device Structure

Uses an advanced C28x 32-bit core for efficient processing

All-in-one system with embedded flash and RAM

56-pin VQFN package with exposed pads for heat dissipation

Integrated analog-to-digital and digital-to-analog converters

Flexible communication peripherals embedded on-chip

Performance Characteristics

High-speed 100MHz processor for real-time control

Large flash and RAM for complex program storage

Reliable analog signal processing with high-resolution converters

Fast peripheral response, suitable for precise control algorithms

Low operating voltage for efficient power usage

Wide temperature support for harsh environments

Application Environments

Perfect for motor control, industrial automation, and power conversion

Used in automotive, robotics, and digital power control

Fit for environments with strict temperature and reliability requirements

Suitable for safety-related and high-reliability embedded systems

Selection Guidelines

Choose this model for applications needing high-speed real-time processing

Suitable for complex, memory-intensive tasks with heavy use of analog/digital converters

Ideal when multiple communication protocols are needed in one system

Consider package and mounting requirements (VQFN, surface mount)

Verify the supply voltage matches system requirements

Make sure the temperature range is adequate for your operating environment

Usage Considerations

Handle according to MSL3 requirements; reflow process must comply

Ensure power supply stability in the 1.14V to 1.32V range

Watch for thermal management as the package is designed for heat dissipation

Double-check pinout and layout compatibility for the 56-VQFN footprint

Follow proper ESD precautions during handling and assembly

No internal EEPROM; only FLASH and RAM are available

Potential Equivalent/Replacement Models

Texas Instruments offers other C2000™ C28x Piccolo™ family members with similar specifications, such as F280049CRSHT, F280048, and F280045 models, differing mainly in memory size and number of peripherals.

If these do not meet your needs or you require precise cross-referencing, please contact our Ariat-Tech sales team for help finding the best matching or alternative product.
