Manufacturer Part Number

EP2S60F484C3

Description

Stratix II FPGA from Intel. IC with 334 input/output pins in a 484-ball fine-pitch BGA package. Built for flexible digital logic tasks and high performance computing. Obsolete model, but new and original units are still in stock.

Specifications

Logic cells: 60,440

Total RAM bits: 2,544,192

LABs/CLBs: 3,022

I/O pins: 334

Power supply voltage: 1.15V to 1.25V

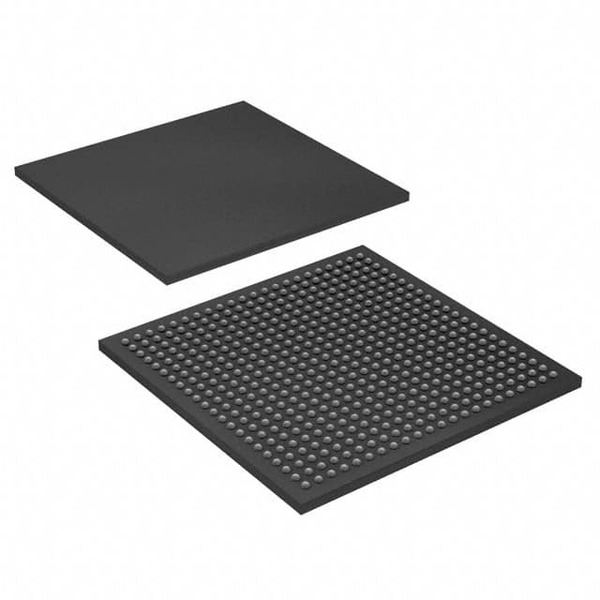

Package: 484-ball BGA, 23mm x 23mm footprint

Mounting: Surface mount

Operating temperature: 0°C to 85°C (TJ)

RoHS Status: Non-compliant

Moisture Sensitivity Level (MSL): 3 (168 hours)

REACH Status: Unaffected

ECCN: 3A001A7A

HTSUS: 8542.39.0001

Device Structure

Built with advanced CMOS logic process technology. Features embedded memory blocks, multipliers for digital signal processing, dedicated PLLs for clock management, and high I/O density in compact packaging. Architecture supports parallel processing and custom logic design.

Performance Characteristics

Can process complex algorithms at high speeds thanks to large logic cell count and high on-chip memory. Robust signal integrity through BGA package and ample I/O. Supports workload-heavy applications and configurable digital logic circuits.

Application Environments

Ideal for telecom infrastructure, data centers, high-speed data acquisition, networking, military and industrial automation systems. Suitable for use in custom hardware acceleration, real-time digital signal processing, and prototyping for ASIC design.

Selection Guidelines

Check logic element and embedded memory requirements against target application needs. Ensure I/O count is sufficient for system integration. Confirm that supply voltage and mounting type match hardware compatibility. Note that the product is obsolete—consider longevity of supply for future support.

Usage Considerations

Not suitable for new designs due to obsolete status. Use only in maintenance, repairs, or legacy system expansion. RoHS non-compliance may restrict use in projects with strict environmental requirements. Pay attention to MSL during soldering and handling. Confirm operating temperature range meets installation conditions.

Potential Equivalent/Replacement Models

This model is obsolete and not recommended for new development. Alternatives include other Stratix II series models such as EP2S60F1020C3 (with higher I/O and larger package), or later-generation Intel FPGAs like Stratix IV or Stratix V, depending on pin, logic, and memory requirements. For direct pin-for-pin replacements or more precise alternatives, contact the Ariat-Tech sales team for tailored support and up-to-date stock information.
