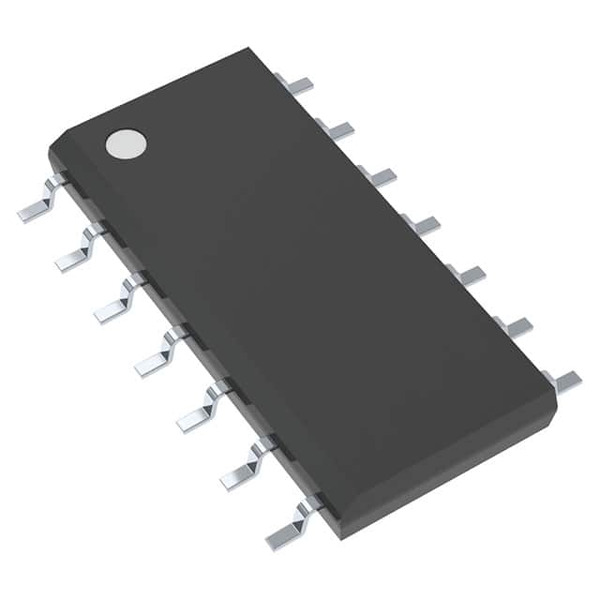

| UC3843BDG | |
|---|---|
| Part Number | UC3843BDG |
| Manufacturer | onsemi |
| Description | IC REG CTRLR FLYBACK 14SOIC |
| Quantity Available | 3210 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.UC3843BDG.pdf2.UC3843BDG.pdf3.UC3843BDG.pdf4.UC3843BDG.pdf |
| Download | UC3843BDG Details PDF |
| UC3843BDG Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of UC3843BDG | |||
|---|---|---|---|
| Manufacturer Part Number | UC3843BDG | Category | Integrated Circuits (ICs) |
| Manufacturer | AMI Semiconductor/onsemi | Description | IC REG CTRLR FLYBACK 14SOIC |
| Package / Case | 14-SOIC | Quantity Available | 3210 pcs |
| Voltage - Supply (Vcc/Vdd) | 7.6V ~ 30V | Topology | Boost, Flyback |
| Synchronous Rectifier | No | Supplier Device Package | 14-SOIC |
| Series | - | Serial Interfaces | - |
| Product Status | Obsolete | Package / Case | 14-SOIC (0.154', 3.90mm Width) |
| Package | Tube | Output Type | Transistor Driver |
| Output Phases | 1 | Output Configuration | Positive, Isolation Capable |
| Operating Temperature | 0°C ~ 70°C (TA) | Number of Outputs | 1 |
| Mounting Type | Surface Mount | Function | Step-Up, Step-Up/Step-Down |
| Frequency - Switching | Up to 500kHz | Duty Cycle (Max) | 96% |
| Control Features | Frequency Control | Clock Sync | No |
| Base Product Number | UC3843 | ||
| Download | UC3843BDG PDF - DE.pdfUC3843BDG PDF - FR.pdfUC3843BDG PDF - ES.pdfUC3843BDG PDF - IT.pdfUC3843BDG PDF - KR.pdf | ||
Product Model
UC3843BDG
Introduction
Switching Controller for DC-DC Power Conversion
Brand and Manufacturer
onsemi
Features
Step-Up and Step-Up/Step-Down Functionality
Positive Output Configuration with Isolation Capability
Boost and Flyback Topology Support
Single Output with Single Phase
96% Maximum Duty Cycle
Frequency Control for Adjustability
Product Performance
Supports Supply Voltages from 7.6V to 30V
Capable of Switching Frequencies Up to 500kHz
Technical Specifications
7.6V ~ 30V Voltage Supply Range
Frequency Control Feature Included
Dimensions, Shape, and Packaging
Surface Mount 14-SOIC Package
Tube Packaging
Dimensions: 14-SOIC (0.154", 3.90mm Width)
Quality and Reliability
Designed for Standard Operating Temperatures from 0°C to 70°C
Product Advantages
Offers High Duty Cycle for Increased Efficiency
Adjustable Switching Frequency for Design Flexibility
Product Competitiveness
Previously a Competitive Option for Power Management Applications
Compatibility
Single Output Compatible with Step-Up or Step-Up/Step-Down Configurations
Standard Certification and Compliance
Manufactured under Standard Industry Certifications (specific certifications not provided)
Lifespan and Sustainability
Product Is Obsolete - Sustainability Options May Be Limited
Actual Application Fields
Used in Power Supply Design Including Boost and Flyback Converters
Email us: Info@Ariat-Tech.com or RFQ UC3843BDG Online.
