Product Model

MM74HC174MX

Introduction

The MM74HC174MX is a high-speed CMOS D-type flip flop with a master reset function.

Brand and Manufacturer

onsemi

Features

D-Type, Master Reset flip flop

Non-Inverted output

Positive edge trigger type

Six flip-flops per IC

Low input capacitance of 5 pF

Ultra-low quiescent current of 8 µA

Product Performance

Maximum clock frequency: 31 MHz

Maximum propagation delay: 28ns at 6V, 50pF

Output current high and low: 5.2mA

Wide operating voltage range from 2V to 6V

Operating temperature range from -40°C to 85°C

Technical Specifications

Type: D-Type flip flop with Master Reset

Number of Elements: 1

Number of Bits per Element: 6

Clock Frequency: 31 MHz

Output Type: Non-Inverted

Maximum Propagation Delay: 28ns @ 6V, 50pF

Voltage - Supply: 2V ~ 6V

Operating Temperature: -40°C ~ 85°C

Dimensions, Shape, and Packaging

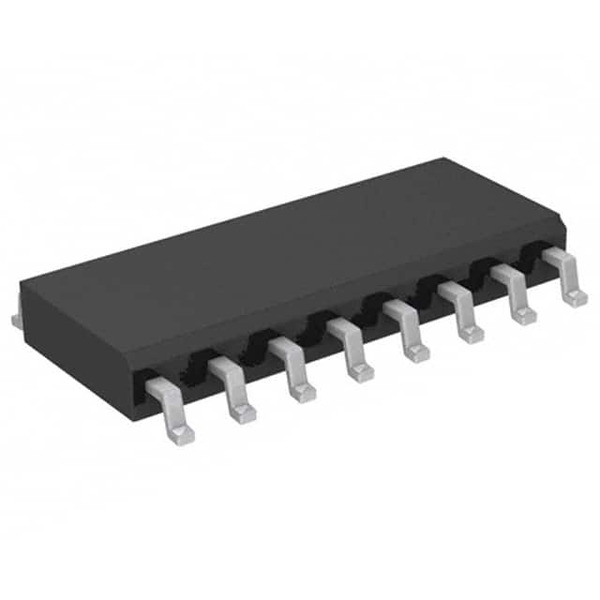

Packaging: 16-SOIC

Package dimensions: 16-SOIC (0.154", 3.90mm Width)

Mounting Type: Surface Mount

Quality and Reliability

Robust construction designed for operation in a wide range of environmental conditions.

Product Advantages

High-speed operation

Low power consumption

Broad voltage supply range suitability

Product Competitiveness

Highly competitive in applications requiring rapid data storage and retrieval with minimal power usage.

Compatibility

Compatible with a wide range of digital systems due to standard logic level requirements.

Standard Certification and Compliance

Meets standard industrial specifications for digital logic flip flops.

Lifespan and Sustainability

Designed for long-term reliability over extended operational periods.

Actual Application Fields

Used in digital circuits for temporary data storage, data manipulation, and interfacing, particularly where high-speed and low-power are crucial.
