| MJD112-1G | |
|---|---|
| Part Number | MJD112-1G |
| Manufacturer | onsemi |
| Description | TRANS NPN DARL 100V 2A IPAK |
| Quantity Available | 89941 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.MJD112-1G.pdf2.MJD112-1G.pdf3.MJD112-1G.pdf4.MJD112-1G.pdf |
| Download | MJD112-1G Details PDF |
| MJD112-1G Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of MJD112-1G | |||
|---|---|---|---|
| Manufacturer Part Number | MJD112-1G | Category | Discrete Semiconductor |
| Manufacturer | AMI Semiconductor/onsemi | Description | TRANS NPN DARL 100V 2A IPAK |
| Package / Case | I-PAK | Quantity Available | 89941 pcs |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | Vce Saturation (Max) @ Ib, Ic | 3V @ 40mA, 4A |
| Transistor Type | NPN - Darlington | Supplier Device Package | I-PAK |
| Series | - | Product Status | Active |
| Power - Max | 1.75 W | Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Package | Tube | Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Frequency - Transition | 25MHz |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 2A, 3V | Current - Collector Cutoff (Max) | 20µA |
| Current - Collector (Ic) (Max) | 2 A | Base Product Number | MJD112 |
| Download | MJD112-1G PDF - DE.pdfMJD112-1G PDF - ES.pdfMJD112-1G PDF - IT.pdfMJD112-1G PDF - KR.pdfMJD112-1G PDF - FR.pdf | ||
Product Model
MJD112-1G
Introduction
NPN Darlington Bipolar Junction Transistor
Brand and Manufacturer
AMI Semiconductor / ON Semiconductor
Features
High DC current gain (hFE) of 1000 at 2A and 3V
Darlington pair configuration for high input impedance and gain
Through-hole mounting for easy integration
Product Performance
Maximum collector current of 2A
Collector-emitter breakdown voltage of 100V
Vce saturation of 3V max at 40mA and 4A
Frequency transition of 25MHz
Power dissipation of 1.75W
Technical Specifications
NPN transistor type
Darlington configuration
100V collector-emitter breakdown voltage
20µA collector cutoff current
Dimensions, Shape, and Packaging

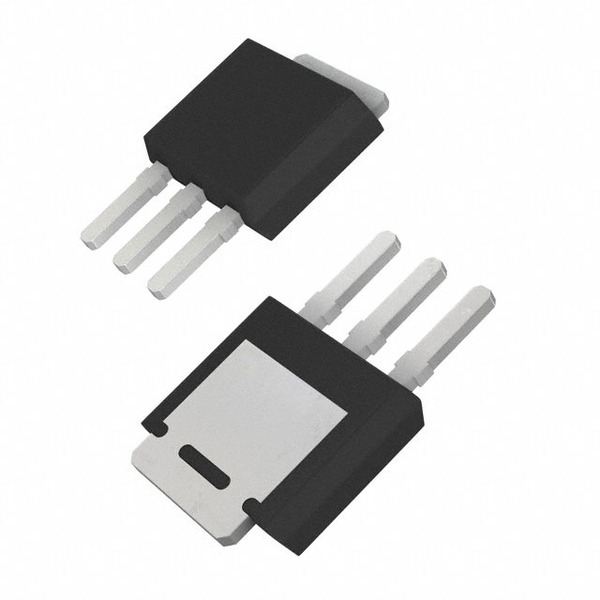

TO-251-3 Short Leads, IPak, TO-251AA package
Packaging in a tube
Quality and Reliability
Lead free and RoHS compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Product Advantages
Enhanced reliability due to compliance with RoHS
Product Competitiveness
Competitive lead time of 9 weeks
Significant gain in a compact package
Compatibility
Compatible with through-hole mounting processes
Standard Certification and Compliance
RoHS compliant
Lifespan and Sustainability
Robust operating temperature range from -65°C to 150°C
Actual Application Fields
Can be used in power regulation circuits, amplifiers, and switching applications
Email us: Info@Ariat-Tech.com or RFQ MJD112-1G Online.
