Product Model

MC7805ACTG

Introduction

This is a voltage regulator from the Power Management Integrated Circuit (PMIC) category from Onsemi manufacturer, specifically a Linear-Low Drop Out (LDO) regulator.

Brand and Manufacturer

onsemi

Features

Single regulator

Positive output configuration

Fixed output type

Maximum input voltage of 35V

Minimum fixed output voltage of 5V

Maximum voltage dropout of 2V at 1A

Output current of 1A

Quiescent current of 6mA

PSRR of 83dB (120Hz)

Equipped with over-temperature and short-circuit protection

Product Performance

Active status

Operating temperature ranging from 0°C to 125°C

Technical Specifications

Maximum Input Voltage: 35V

Output Voltage: 5V

Maximum Voltage Dropout: 2V @ 1A

Output Current: 1A

Quiescent Current: 6mA

PSRR: 83dB at 120Hz

Dimensions, Shape, and Packaging

Through-hole mounting type

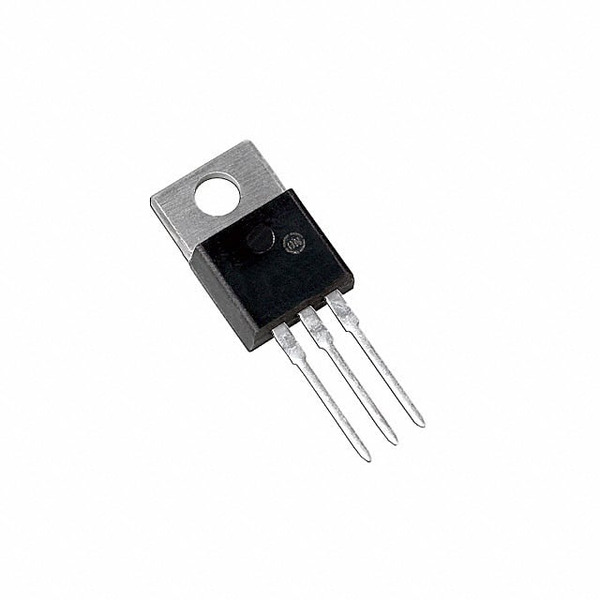

TO-220-3 package form

Shipped in tube packaging

Quality and Reliability

Onsemi maintains high quality and reliability in all their products, and this model is no exception. The short circuit and overheating protection features add to its reliability.

Product Advantages

This product comes with fixed output type making its operations simpler. It features quiescent current of only 6 mA, which indicates low power consumption. The product also incorporates protection features, ensuring its robustness and security in various usage conditions.

Product Competitiveness

Onsemi's MC7805ACTG is a competitive product due to its diverse protective features, low quiescent current, and broad operating temperature range. These features make it a strong competitor in the PMIC market.

Compatibility

This component is designed for various electronic circuits needing regulated voltage owing to its broad voltage range.

Standard Certification and Compliance

All onsemi products, including this model, ensure regulatory compliance and certifications, which need to be checked with the manufacturer.

Lifespan and Sustainability

With careful use and appropriate operating conditions, the product can provide a long lifespan. The exact duration needs to be verified with the manufacturer.

Actual Application Fields

This component will find uses in power management of electronic circuits, home appliances, gadgets, and other tech instruments requiring regulated power.
