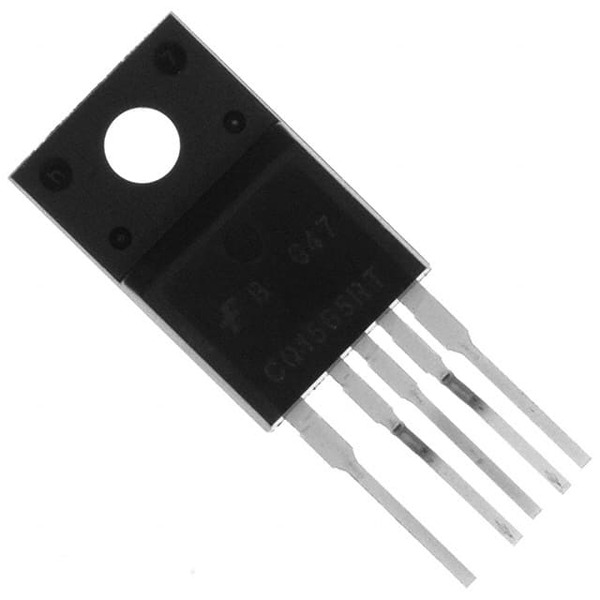

| FSCQ1565RTYDTU | |
|---|---|
| Part Number | FSCQ1565RTYDTU |
| Manufacturer | onsemi |
| Description | IC OFFLINE SW FLBACK TO220F-5L |
| Quantity Available | 4019 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.FSCQ1565RTYDTU.pdf2.FSCQ1565RTYDTU.pdf3.FSCQ1565RTYDTU.pdf4.FSCQ1565RTYDTU.pdf5.FSCQ1565RTYDTU.pdf6.FSCQ1565RTYDTU.pdf |
| Download | FSCQ1565RTYDTU Details PDF |
| FSCQ1565RTYDTU Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of FSCQ1565RTYDTU | |||
|---|---|---|---|
| Manufacturer Part Number | FSCQ1565RTYDTU | Category | Integrated Circuits (ICs) |
| Manufacturer | AMI Semiconductor/onsemi | Description | IC OFFLINE SW FLBACK TO220F-5L |
| Package / Case | TO-220F-5L (Forming) | Quantity Available | 4019 pcs |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 20V | Voltage - Start Up | 15 V |
| Voltage - Breakdown | 650V | Topology | Flyback |
| Supplier Device Package | TO-220F-5L (Forming) | Series | FSCQ |
| Product Status | Obsolete | Power (Watts) | 210 W |
| Package / Case | TO-220-5 Full Pack, Formed Leads | Package | Tube |
| Output Isolation | Isolated | Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Internal Switch(s) | Yes |
| Frequency - Switching | 20kHz | Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Duty Cycle | 95% | Control Features | Sync |
| Base Product Number | FSCQ1565 | ||
| Download | FSCQ1565RTYDTU PDF - DE.pdf | ||
Product Model
FSCQ1565RTYDTU
Introduction
AC/DC Converter Offline Switcher Integrated Circuit
Brand and Manufacturer
AMI Semiconductor / ON Semiconductor
Features
Converter Offline Flyback Topology
Synchronous Rectifier with 20 kHz operating frequency
Current Limiting
Over Load Protection
Over Temperature Protection
Over Voltage Protection
Product Performance
High efficiency energy conversion
Excellent thermal performance
Robust output regulation
Integrated protection features
Technical Specifications
Base Part Number: FSCQ1565
Supplier Device Package: TO-220F-5L (Forming)
Configuration: Flyback
Number of Inputs: Lead free / RoHS Compliant
Output Type: Fixed
Output Phases: Single
Synchronous Rectifier: Yes
Voltage - Supply: 9 V ~ 20 V
Number of Channels: 1
Power Output: 210W
Input Voltage: 650V
Regulator Topology: Flyback
Input Capacitance: N/A
Dimensions, Shape, and Packaging
Package / Case: TO-220-5 Full Pack (Formed Leads)
Packaging: Tube
Digi-Key Part Number: FSCQ1565RTYDTU-ND
Dimensions: Standard TO-220F-5L footprint
Quality and Reliability
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Product Advantages
Integrated features for enhanced safety
High voltage capability suitable for various applications
Easy implementation to design with formed leads
Product Competitiveness
Combines multiple functions in a compact form factor
Suitable for a range of power conversion applications
Compatibility
Compatible with standard offline flyback power supplies
Standard Certification and Compliance
Lead free / RoHS Compliant
Lifespan and Sustainability
Designed for long-term reliability
Actual Application Fields
Power adapters
Power supplies for consumer electronics
Industrial power systems
Email us: Info@Ariat-Tech.com or RFQ FSCQ1565RTYDTU Online.
