Manufacturer Part Number

D44VH10G

Description

NPN bipolar junction transistor (BJT) supporting maximum voltage of 80V and collector current up to 15A. Designed for high-speed switching applications and power amplification. Housed in a standard TO-220 through-hole package, ideal for thermal management and robust industrial usage. Certified ROHS3 compliant and REACH unaffected, ensuring environmental safety. Device is active and available with high inventory.

Specifications

Transistor Type: NPN

Maximum Collector-Emitter Voltage (Vce): 80V

Maximum Collector Current (Ic): 15A

Vce Saturation (Max): 400mV at Ib = 400mA, Ic = 8A

DC Current Gain (hFE, Min): 20 at Ic = 4A, Vce = 1V

Transition Frequency (fT): 50MHz

Power Dissipation (Max): 83W

Operating Junction Temperature: -55°C to +150°C

Mounting Type: Through Hole

Package/Case: TO-220-3

RoHS Status: Compliant

Moisture Sensitivity Level: Not applicable

ECCN/HTS: EAR99 / 8541.29.0075

Device Structure

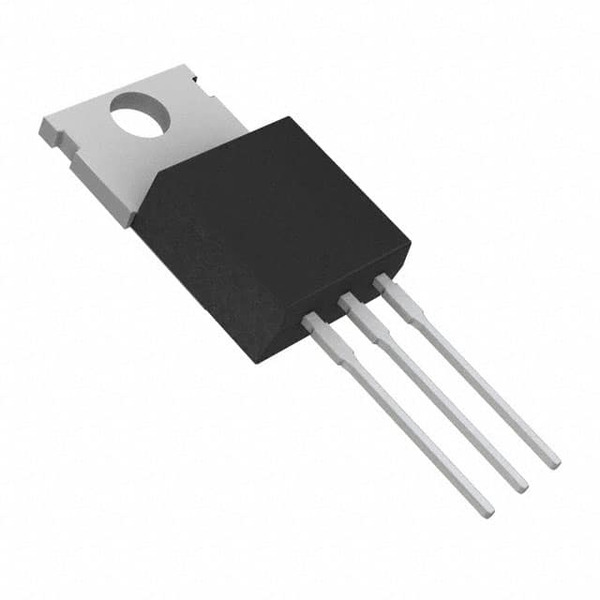

Single NPN BJT structure in a TO-220 package. The three pins correspond to base, collector, and emitter. Designed for efficient heat dissipation and compatibility with common heatsinks. Pin connections are standardized for TO-220.

Performance Characteristics

Supports fast switching with a transition frequency of up to 50MHz. Robust power handling up to 83W, making it suitable for high-current applications. Low Vce(sat) reduces power loss and improves efficiency. Stable current gain across rated conditions ensures reliable operation with predictable amplification behavior.

Application Environments

Used in power amplifiers, high-speed switching circuits, power supplies, inverters, and motor control. Suitable for both industrial and consumer electronics. Performs well in demanding environments requiring high current and fast switching, such as automotive, communication base stations, and home appliances.

Selection Guidelines

Choose if your application demands high current (up to 15A), moderate voltage (up to 80V), and efficient switching. Suitable where thermal management with TO-220 and board-mount design are needed. Ideal for users seeking RoHS and REACH compliance. Verify compatibility with control voltages/currents in your circuit, and check driver stage capability to supply adequate base current.

Usage Considerations

Ensure adequate heatsinking due to high-power capability. Keep Vce and Ic below absolute maximums for safe operation. Confirm pinout before installation. Protect against voltage spikes and inductive loads with appropriate snubbing or clamping circuits. Use in dry, ventilated enclosures to maintain operating temperature range. Follow antistatic precautions during handling.

Potential Equivalent/Replacement Models

There are several equivalent or alternative models available for the D44VH10G, including:

STMicroelectronics BD911

ON Semiconductor D44H11

Fairchild D44H11

NXP BD911

Toshiba 2SC5200 (for similar high-power applications, note higher current/voltage ratings)

Other generic NPN power BJTs in TO-220 package with similar electrical characteristics

For applications requiring exact form, fit, and function, verify pin configuration and electrical characteristics in the datasheet. If you cannot find a suitable equivalent or need more options, please contact the Ariat-Tech sales team for further assistance.
