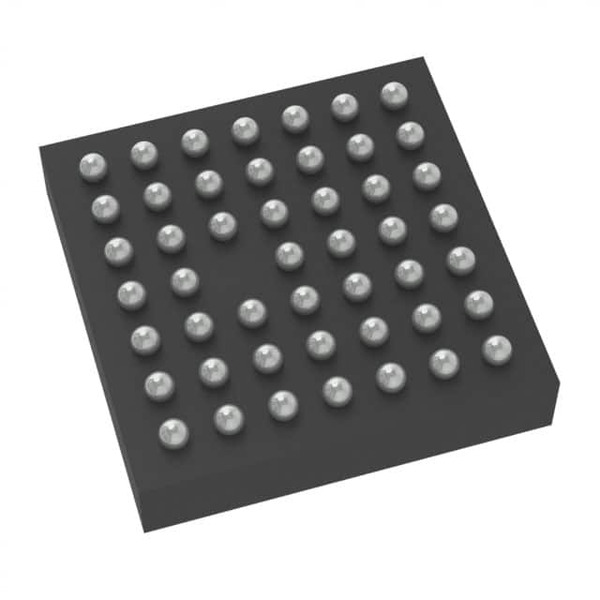

XC9536XL-5CS48C: Advanced CPLD for Reliable, Low-Power Performance

The XC9536XL-5CS48C is a powerful and reliable Complex Programmable Logic Device (CPLD) manufactured by AMD/Xilinx. Designed for high-performance, low-voltage applications, this CPLD excels in leading-edge communications and computing systems where power efficiency and device durability are paramount.

Key Features

In-System Programmability (ISP) and JTAG Boundary Scan: The XC9536XL-5CS48C supports in-system programming and the full IEEE Std 1149.1 JTAG boundary-scan, enabling superior debug and design iteration capabilities, even in small form-factor packages.

Seamless Integration with Xilinx FPGAs: This CPLD is designed to work in harmony with Xilinx's Virtex, Spartan-XL, and XC4000XL FPGA families, allowing system designers to optimally partition logic between fast interface circuitry and high-density general-purpose logic.

Pin Compatibility and Design Migration: The XC9536XL-5CS48C is fully pin-compatible with other XC9500XL family members, simplifying design migration across multiple density options within the same package footprint.

In-System Programmability and Data Retention: The XC9500XL architecture addresses the requirements of in-system programmability, with enhanced pin-locking capability to avoid costly board rework. Its high programming endurance and extended data retention support longer and more reliable system operating life.

Advanced System Features: The XC9536XL-5CS48C includes output slew rate control and user-programmable ground pins to help reduce system noise. Each user pin is compatible with 5V, 3.3V, and 2.5V inputs, and the outputs can be configured for 3.3V or 2.5V operation, providing a symmetric full 3.3V output voltage swing for balanced rise and fall times.

Reliable, Low-Power Performance: Designed for 3.3V operation, the XC9536XL-5CS48C CPLD offers high device reliability and low power dissipation, making it an ideal choice for demanding communications and computing applications.

key_features

The Xilinx XC9536XL-5CS48C is a high-performance, low-power CPLD (Complex Programmable Logic Device) designed for 3.3V systems. This CPLD offers exceptional speed, flexibility, and reliability, making it an ideal choice for a wide range of applications.

Features and Benefits

Speed and Performance

- Optimized for high-performance 3.3V systems

- 5 ns pin-to-pin logic delays

- Internal system frequency up to 208 MHz

Compact and Versatile Packaging

- Available in small footprint packages, including VQFPs, TQFPs, and CSPs (Chip Scale Packages)

- Pb-free options available for all packages

Low Power Operation

- Designed for lower power consumption

- 5V tolerant I/O pins accept 5V, 3.3V, and 2.5V signals

- 3.3V or 2.5V output capability

Advanced CMOS Technology

- Leverages AMD/Xilinx's advanced 0.35 micron feature size CMOS FastFLASH technology

- Provides superior pin-locking and routability with FastCONNECT II switch matrix

Robust System Features

- In-system programmable

- Extra wide 54-input Function Blocks

- Up to 90 product-terms per macrocell with individual product-term allocation

- Local clock inversion with three global and one product-term clocks

- Individual output enable per output pin with local inversion

- Input hysteresis on all user and boundary-scan pin inputs

- Bus-hold circuitry on all user pin inputs

- Supports hot-plugging capability

- Full IEEE Std 1149.1 boundary-scan (JTAG) support

Scalable Design

- Four pin-compatible device densities available, ranging from 36 to 288 macrocells and 800 to 6400 usable gates

Reliability and Data Security

- 10,000 program/erase cycles endurance rating

- 20 years of data retention

- Enhanced data security features

The Xilinx XC9536XL-5CS48C is a versatile and high-performing CPLD that delivers exceptional speed, power efficiency, and reliability. Its advanced features and capabilities make it a suitable choice for a wide range of high-performance 3.3V system applications.
