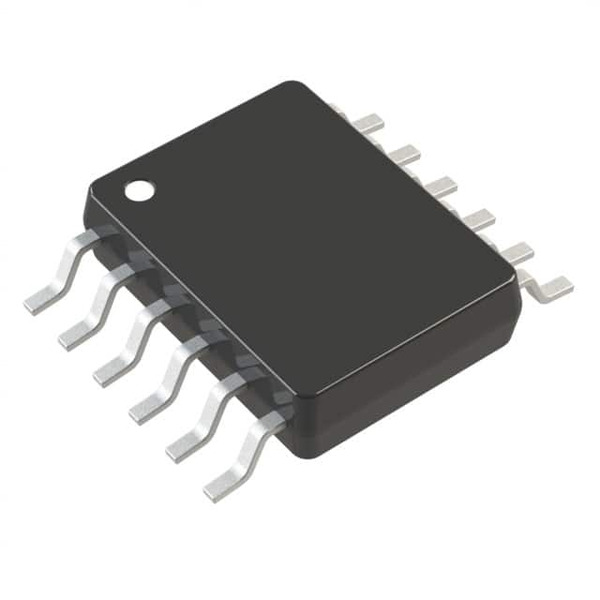

| LTC2301CMS#PBF | |
|---|---|
| Part Number | LTC2301CMS#PBF |
| Manufacturer | Analog Devices Inc. |
| Description | IC ADC 12BIT SAR 12MSOP |
| Quantity Available | 5000 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.LTC2301CMS#PBF.pdf2.LTC2301CMS#PBF.pdf3.LTC2301CMS#PBF.pdf |
| Download | LTC2301CMS#PBF Details PDF |
| LTC2301CMS#PBF Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of LTC2301CMS#PBF | |||
|---|---|---|---|
| Manufacturer Part Number | LTC2301CMS#PBF | Category | Integrated Circuits (ICs) |
| Manufacturer | Analog Devices Inc. | Description | IC ADC 12BIT SAR 12MSOP |
| Package / Case | 12-MSOP | Quantity Available | 5000 pcs |
| Voltage - Supply, Digital | 5V | Voltage - Supply, Analog | 5V |
| Supplier Device Package | 12-MSOP | Series | - |
| Sampling Rate (Per Second) | 14k | Reference Type | External, Internal |
| Ratio - S/H:ADC | 1:1 | Product Status | Active |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) | Package | Tube |
| Operating Temperature | 0°C ~ 70°C | Number of Inputs | 1 |
| Number of Bits | 12 | Number of A/D Converters | 1 |
| Mounting Type | Surface Mount | Input Type | Differential, Single Ended |
| Features | Selectable Address | Data Interface | I²C |
| Configuration | MUX-S/H-ADC | Base Product Number | LTC2301 |
| Architecture | SAR | ||
| Download | LTC2301CMS#PBF PDF - DE.pdfLTC2301CMS#PBF PDF - FR.pdfLTC2301CMS#PBF PDF - ES.pdfLTC2301CMS#PBF PDF - IT.pdfLTC2301CMS#PBF PDF - KR.pdf | ||
Product Model
LTC2301CMS#PBF
Introduction
12-Bit ADC with I2C Interface
Brand and Manufacturer
Analog Devices
Features
12-Bit Resolution
I2C Compatible Serial Interface
Selectable Device Address
Differential and Single-Ended Inputs
Product Performance
Sampling Rate 14k SPS
Single 5V Supply Operation
Technical Specifications
SAR (Successive Approximation Register) Architecture
External and Internal Reference Option
Dimensions, Shape, and Packaging
12-TSSOP Package
Surface Mount Type
Packaged in Tube
Quality and Reliability
Active Product Status
Product Advantages
Easy Integration with I2C Bus
Flexible Addressing for Multi-IC Systems
Product Competitiveness
High Performance with Low Power Consumption
Compatibility
Supports I2C Serial Data Interface
Standard Certification and Compliance
Complies with Industry Standards for Electronic Components
Lifespan and Sustainability
Reliable Operation from 0°C to 70°C
Actual Application Fields
Data Acquisition Systems
Sensor Interfaces
Portable Instrumentation
Email us: Info@Ariat-Tech.com or RFQ LTC2301CMS#PBF Online.
