Manufacturer Part Number

DAC8562FSZ-REEL

Description

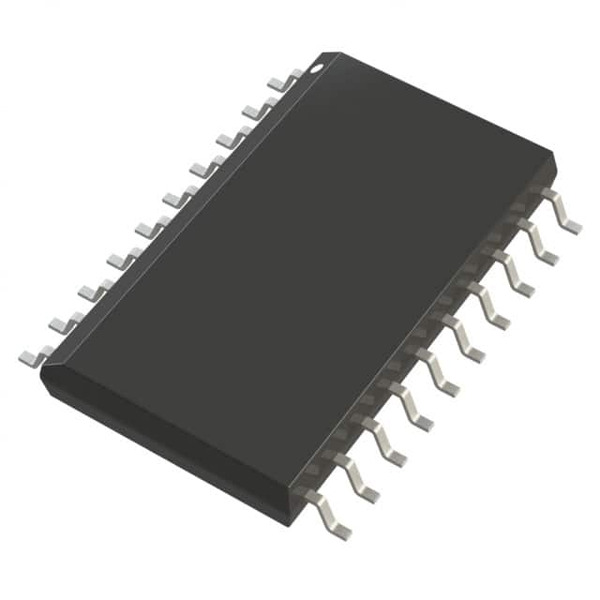

12-bit digital-to-analog converter IC, voltage output, single-channel design. Uses buffered voltage output for stable performance. Mounted in a 20-pin SOIC package, suited for automated surface-mount assembly. Designed for high precision analog signal conversion and reliable operation in industrial settings.

Specifications

Single-channel, 12-bit resolution for fine analog signal control. Internal reference voltage, no need for external reference circuitry. Settling time is typically 16 microseconds for fast analog response. Output type is voltage-buffered for steady, low noise signal. Both analog and digital operating voltages are 5V. Interface uses parallel data input for high-speed transmission. INL/DNL accuracy at ±0.75 LSB. R-2R architecture gives consistent signal mapping. Operating temperature range is -40°C to 85°C. Supplied in 20-SOIC package, surface-mountable.

Device Structure

Comprises a single R-2R ladder digital-to-analog converter, with onboard reference, parallel digital bus, and output buffer. Integrates power supply management for both analog and digital sections in one chip. Standard 20-SOIC construction for robust PCB mounting and heat dissipation. Internally optimized for EMC and noise reduction.

Performance Characteristics

Provides high linearity and accuracy of output signal at ±0.75 LSB deviation. Fast settling time enables quick response when switching analog outputs. Buffered output prevents loading effect for consistent analog performance. Wide operating temperature range makes the device suitable for harsh environments.

Application Environments

Works well in industrial control, automation, instrumentation, medical devices, and test measurement systems. Reliable for precise analog voltage generation, sensor simulation, and process control. Supports use in microcontroller-based embedded systems needing stable DAC conversion.

Selection Guidelines

Choose this model if precise, single-channel 12-bit DAC conversion is required, with a parallel data interface and internal reference. Suitable if system supply voltages are 5V and output buffering is necessary. Consider if design supports 20-SOIC footprint and needs fast settling times.

Usage Considerations

Maintain recommended 5V power supply for both analog and digital sections. Avoid operating beyond -40°C to 85°C temperature to ensure stability. Watch for moisture sensitivity level MSL 3; reflow soldering should be completed within 168 hours after opening factory seal. Make sure parallel interface connections match PCB layout to avoid timing errors.

Potential Equivalent/Replacement Models

Yes, equivalent and alternative models are available. Options include AD5681RBRMZ, AD5512AACPZ-REEL7. For more alternatives or detailed compatibility assessment, contact Ariat-Tech sales team for assistance.
